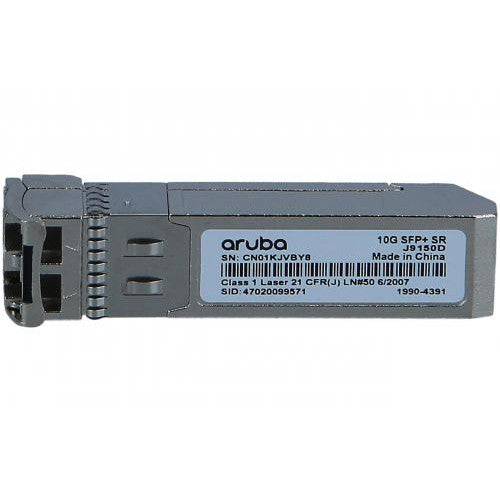

J9150D-BCC | Aruba Compatible 10GB Multi-Mode 300m (10GBASE-SR)

The J9150D-BCC is a drop-in compatible replacement for the Aruba J9150D. This 10GBASE-SR SFP+ transceiver provides plug-and-play compatibility with HPE Aruba networking equipment. - IEEE 802.3ae 10GBASE-SR compliance guarantees interoperability across standards-based 10 Gigabit Ethernet infrastructure - SFP+ form factor, 10.3 Gbps data rate, 850nm VCSEL transmitter, duplex LC connector, multimode fibre (OM3/OM4) - Up to 300m reach on OM3 fibre and 400m on OM4 fibre using 50/125 micron cable - Digital Diagnostic Monitoring (DDM) support via SFF-8472 interface for real-time optical power, temperature, voltage, and laser bias reporting - Hot-pluggable design supports field installation without service disruption - Compliant with SFF-8431 and SFF-8432 MSA specifications for electrical and mechanical host compatibility

• IEEE 802.3ae 10GBASE-SR compliance ensures standards-based interoperability with any vendor platform supporting 10 Gigabit Ethernet short-reach links at 850nm over multimode fibre
• SFF-8431 and SFF-8432 MSA compliance defines the electrical interface, signaling rate (9.95 to 11.1 GBd), and mechanical form factor, ensuring host compatibility across SFP+ slots
• VCSEL transmitter and PIN photodiode receiver deliver 10.3 Gbps bi-directional throughput with a minimum optical link budget of 6.1 dB, suitable for intra-rack and short campus links
• Digital Diagnostic Monitoring (SFF-8472) exposes real-time transmit/receive optical power, laser bias current, module temperature, and supply voltage via I2C for proactive link health monitoring
• Operating data rate range of 1.25 to 10.31 Gbps supports both Gigabit Ethernet and 10 Gigabit Ethernet on the same physical module, enabling mixed-speed deployments
• Hot-pluggable design with commercial operating temperature range (0 to 70 degrees C) and 1W maximum power consumption supports dense switch installations without additional cooling
• Compatible with both OM3 and OM4 multimode fibre: OM3 delivers 300m reach, OM4 extends to 400m, enabling flexible cabling choices based on installed infrastructure
