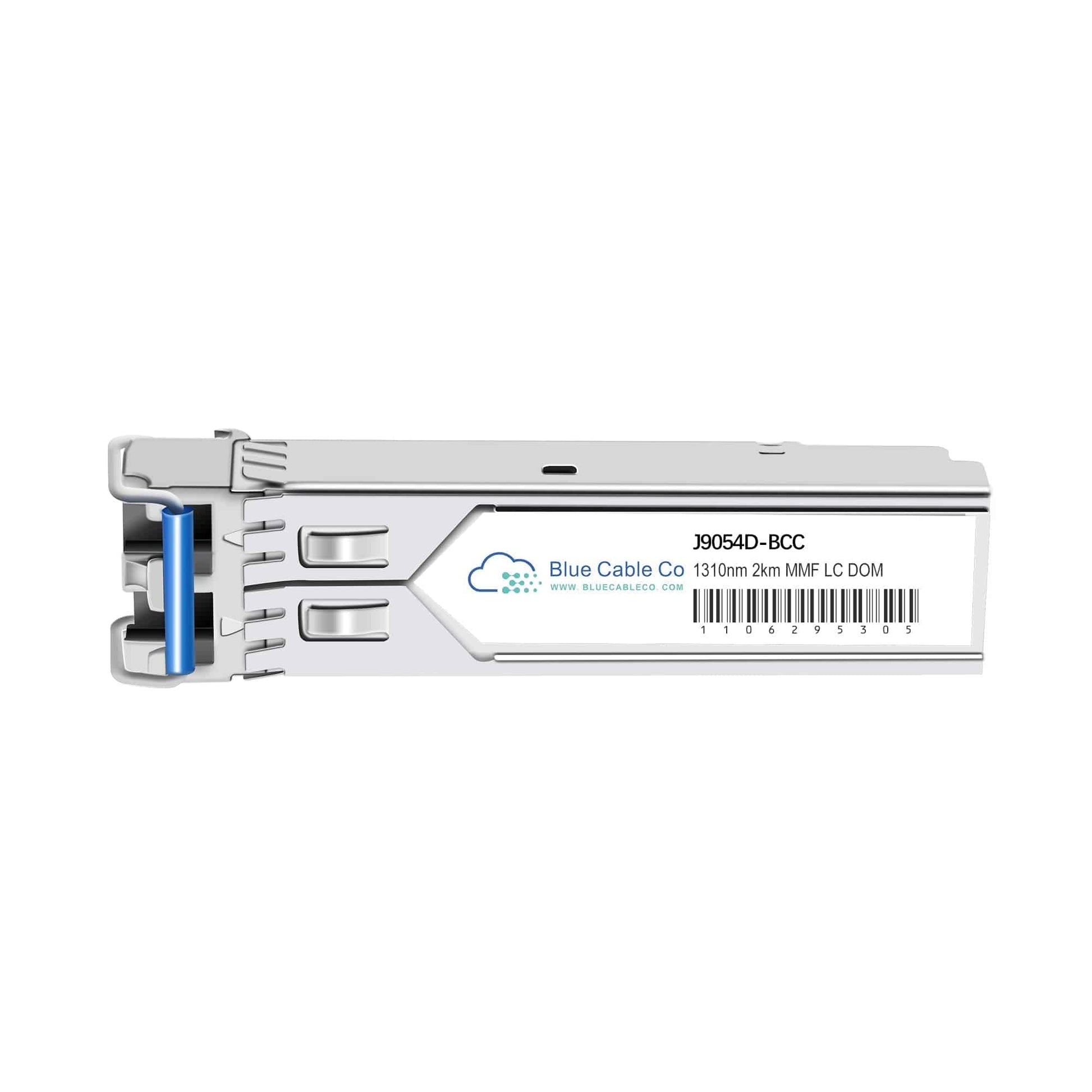

• J9054D-BCC Aruba compatible silver SFP transceiver with blue fiber connector
1 1

Blue Cable Co

J9054D-BCC | Aruba Compatible 100MB Multi-Mode - 2km (100BASE-FX)

J9054D-BCC | Aruba Compatible 100MB Multi-Mode - 2km (100BASE-FX)

J9054D-BCC

In stock:16

$36.94 AUD
$36.94 AUD
$36.94 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The J9054D-BCC is a drop-in compatible replacement for the Aruba J9054D. This SFP transceiver offers plug-and-play compatibility with Aruba switches requiring a 100BASE-FX interface. - 100BASE-FX compliance per IEEE 802.3u ensures full-duplex Fast Ethernet compatibility over multi-mode fibre - SFP form factor, 100Mbps data rate, 1310nm wavelength, duplex LC connector - Reaches up to 2km over multi-mode fibre in full-duplex operation - Digital Diagnostic Monitoring (DDM) support for real-time transceiver health and performance parameters - Standard 0 to 70 degrees C operating temperature range for typical commercial networking environments

Features

• IEEE 802.3u 100BASE-FX standard compliance guarantees interoperability with any Fast Ethernet switch port requiring 100Mbps fibre connectivity, independent of vendor platform
• 1310nm wavelength transmission over multi-mode fibre provides 2km reach in full-duplex mode, suitable for inter-building campus links or intra-datacenter floor connections
• Digital Diagnostics Monitoring (DDM) exposes five real-time parameters via SFF-8472 interface: temperature, supply voltage, laser bias current, transmit optical power, and receive optical power, enabling proactive link health monitoring
• Hot-swappable SFP form factor allows module insertion and removal without switch reboot or port shutdown, minimising service interruption during maintenance or troubleshooting
• Full-duplex operation eliminates CSMA/CD collision domain constraints, delivering symmetric 100Mbps throughput in each direction simultaneously
• Commercial temperature range (0 to 70°C) suits standard datacentre and office environments without requiring extended-temperature variants

Warranty

5-Year Advanced Warranty on All Blue Cable Co® Products

Blue Cable Co® offers a comprehensive 5-Year Advanced Warranty on all our branded products. Our advanced warranty ensures fast, hassle-free replacements to keep your network running smoothly. If a fault occurs, we'll deliver a replacement part before you return the faulty itemminimising downtime and giving you complete peace of mind.

Choose Blue Cable Co® for reliable, high-quality network components backed by industry-leading warranty support.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Alternate Part Codes

FAQs

Compatible SFP Selector

Technical Specifications

Brand: Blue Cable Co
BCC SKU: J9054D-BCC
Compatible Replacement For: J9054D
Compatibility: Aruba compatible
Lab Testing: Tested in Sydney, Australia
Warranty: 5-year advanced hardware replacement (Blue Cable Co)
Form Factor: SFP
Data Rate: 100Mbps (125Mbps signaling rate)
Wavelength: 1310nm
Fibre Type: Multi-Mode
Connector Type: Duplex LC
DOM Support: Yes (DDM/DOM per SFF-8472)
Standards: 100BASE-FX (IEEE 802.3u)
Max Reach: 2km (full-duplex), 412m (half-duplex)
Operating Temperature: 0 to 70°C (commercial)

Alternate Part Codes

1990-4483, 1990-436, 5400-3917

FAQs

Q: Will this work in place of the Aruba J9054D?
A: Yes. The J9054D-BCC is a direct replacement for the Aruba J9054D. It meets the same 100BASE-FX standard (IEEE 802.3u), uses the same SFP form factor, 1310nm wavelength, duplex LC connector, and 2km reach specification. It is plug-and-play compatible with Aruba switches requiring this transceiver.

Q: Which Aruba switch models support this transceiver?
A: This module is compatible with Aruba switches that support 100BASE-FX SFP modules, including 2530, 2540, 2615, 2620, 2930F, and 2930M series switches. Any Aruba switch with an SFP port that officially supports the J9054D will work with this module. Compatibility is determined by the port supporting 100BASE-FX, not by a specific model list.

Q: What fibre type and connector is required, and can I use OM3 or OM4 fibre?
A: This transceiver requires multi-mode fibre with duplex LC connectors. While it will physically connect to OM3, OM4, or OM5 fibre, standard multi-mode fibre (62.5/125µm or 50/125µm) is sufficient for the 2km reach at 1310nm. OM3/OM4 ratings apply primarily to shorter wavelengths like 850nm, so there is no performance advantage here.

Q: How do I access DDM data to monitor the link health?
A: Use the host switch CLI or management interface to query DDM parameters via the SFF-8472 interface. The module reports temperature, supply voltage, laser bias current, transmit power, and receive power in real time. On Aruba switches, use commands like 'show interfaces transceiver' or the equivalent in your switch OS to retrieve this diagnostic information.

Q: What is the difference between the 2km and 412m reach specifications?
A: The 2km reach applies to full-duplex operation, where collision detection is not required. The 412m limit applies to half-duplex mode, where CSMA/CD timing constraints restrict the maximum propagation delay. In practice, nearly all 100BASE-FX deployments use full-duplex, so the 2km specification is the relevant one for most use cases.
