ITFZTCHSX-BCC | Sophos Compatible 1GB Multi-Mode 550m (1000BASE-SX)

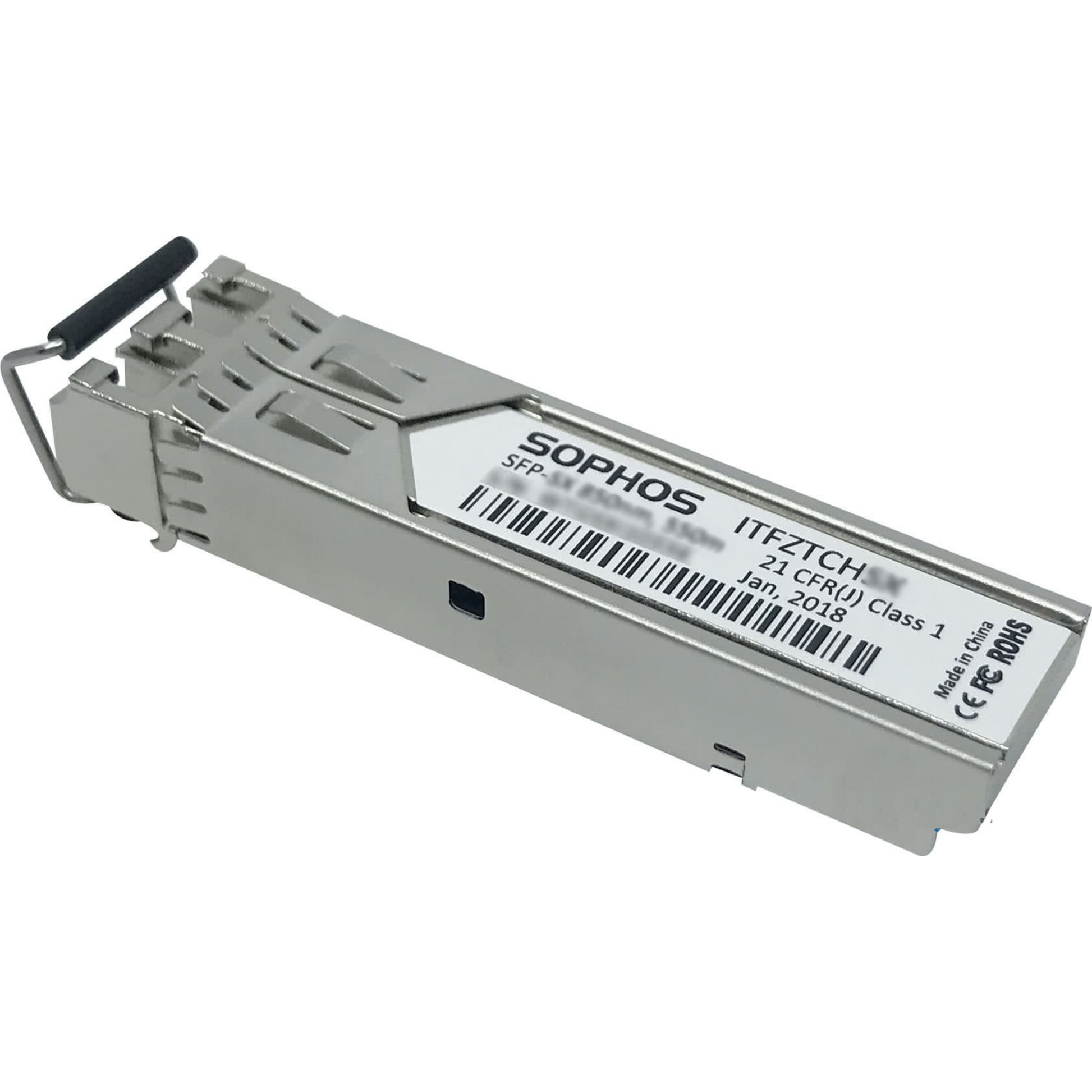

Q: Will this work in place of the Sophos ITFZTCHSX?
A: Yes. The ITFZTCHSX-BCC is designed as a plug-and-play replacement for the Sophos ITFZTCHSX. It conforms to the IEEE 802.3z 1000BASE-SX standard and uses the same SFP form factor, 850nm wavelength, and 1Gbps data rate, ensuring full functional equivalence in Sophos firewall SFP ports.

Q: Which Sophos platforms are compatible with this transceiver?
A: This transceiver is compatible with Sophos UTM, SG, XG, and XGS series firewall appliances equipped with SFP ports. Any Sophos platform with a standard SFP slot that supports 1000BASE-SX transceivers will accept this module. Confirm your specific model has SFP capability if unsure.

Q: What fibre type and reach does 1000BASE-SX support?
A: 1000BASE-SX operates exclusively over multi-mode fibre. Maximum reach is 550 metres over 50/125µm OM2 fibre and 220 metres over 62.5/125µm OM1 fibre. Higher-grade OM3 and OM4 fibre can support the same distances and may extend reach slightly in practice, but the IEEE 802.3z specification caps 1000BASE-SX at 550m regardless of fibre grade.

Q: How do I access the DOM diagnostic parameters?
A: DOM (Digital Optical Monitoring) parameters are accessed through your Sophos firewall management interface or via command-line tools that query the SFP's internal diagnostics. The transceiver reports real-time transmit power, receive power, temperature, voltage, and bias current. These values help identify degraded fibre, dirty connectors, or marginal link budgets before failures occur.

Q: Can I mix this transceiver with other vendor 1000BASE-SX modules on the same link?
A: Yes. 1000BASE-SX is an IEEE 802.3z standard, not a proprietary specification. As long as both ends of the fibre link use 1000BASE-SX transceivers operating at 850nm over multi-mode fibre, the link will establish regardless of module brand. The standard defines transmit power, receive sensitivity, and encoding to guarantee cross-vendor interoperability.
