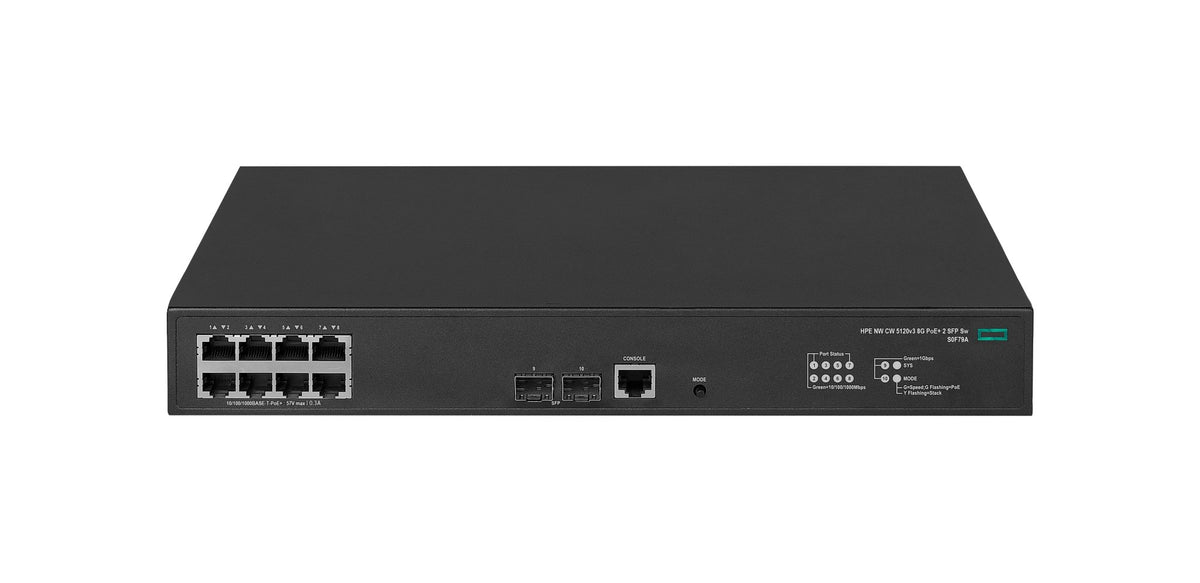

HPE S0F79A | Comware 5120 v3 8-Port Gigabit PoE+ Switch, 2x SFP, Fanless

HPE S0F79A | Comware 5120 v3 8-Port Gigabit PoE+ Switch, 2x SFP, Fanless

Authorised HPE Partner

S0F79A

Stock Status: Enquire

$1,111.23 inc. GST
$1,010.21 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Comware 5120 v3 8-port Gigabit PoE+ switch is a fanless, managed campus switch with 8 x 10/100/1000BASE-T PoE+ ports delivering up to 30 W per port and 2 x 1000BASE-X SFP ports. Silent fanless operation in a 1U rack-mountable chassis makes it a good fit for small offices, branch sites and quiet environments that need to power IP phones, wireless access points and cameras.

It supports Intelligent Resilient Framework (IRF) stacking of up to nine units into one logical device, with a 16K MAC address table, 20 Gbps switching capacity and 15 Mpps throughput. SmartMC is included, ACLs support security policy and traffic control, and the switch works with HPE Intelligent Management Center (IMC) for network visibility.

Features

- Fanless design for silent operation
- IRF virtualises up to nine physical switches into one logical device
- MAC address support of up to 16K for greater scalability
- PoE+ ports support voice, video and wireless applications
- 8 BASE-T ports with two fixed SFP ports for fibre or copper uplinks
- SmartMC included at no additional cost
- Works with HPE Intelligent Management Center (IMC) for network visibility
- ACLs for security policy and traffic control

Warranty

Hewlett Packard Enterprise (HPE) offers a standard limited hardware warranty on its products, with coverage periods varying by product line. For instance, HPE ProLiant servers typically come with a 1 to 3-year limited warranty, while other products may have different durations.
Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for HPE products, ensuring your IT infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 8 x 10/100/1000BASE-T PoE+ ports (30 W per port)
- 2 x 1000BASE-X SFP ports
- 1 x management RJ-45 port
- 1U rack-mountable, fanless
- IRF stacking up to 9 units
- MAC address table: 16K entries
- Switching capacity: 20 Gbps
- Throughput: 15 Mpps
- Latency (1 Gbps): 5 µs
- Flash memory: 256 MB
- Packet buffer memory: 1.5 MB
- Authentication: RADIUS, TACACS, TACACS+, SSH2
- Power: AC, 50/60 Hz, 120/230 V AC, 125 W maximum
- Dimensions (H x W x D): 43.6 x 330 x 230 mm
- Weight: 3 kg
- Operating temperature: -5 to 45 C

FAQs

Q: How many PoE+ ports does this switch have?
A: It has 8 x 10/100/1000BASE-T PoE+ ports, each supplying up to 30 W.

Q: Does this switch have a fan?
A: No. It is fanless, so it runs silently and suits quiet office environments.

Q: Can this switch be stacked?
A: Yes. It supports HPE Intelligent Resilient Framework (IRF), which can virtualise up to nine units into a single logical device.

Q: What uplink options are available?
A: It has 2 x 1000BASE-X SFP ports, which accept compatible SFP modules for fibre or copper uplinks.

Q: Is it rack mountable?
A: Yes. It is a 1U rack-mountable switch measuring 43.6 x 330 x 230 mm.

Q: What management tools does it work with?
A: It works with HPE Intelligent Management Center (IMC) and includes SmartMC at no additional cost.
