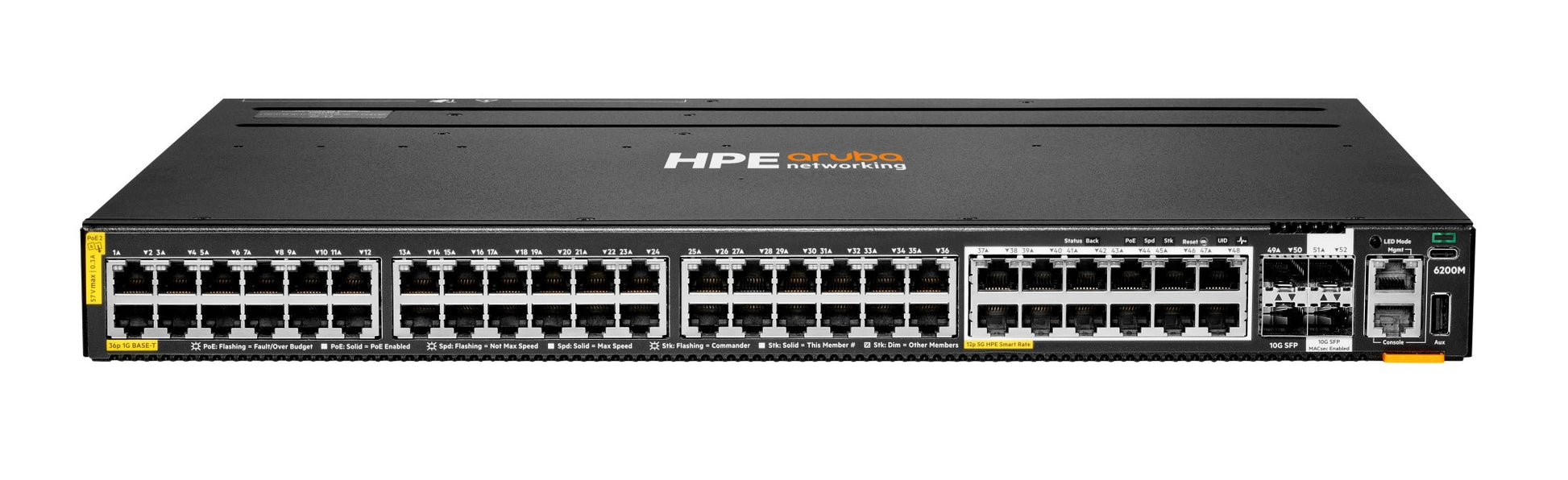

Aruba R8Q71A | CX 6200M 48-Port Class 6 PoE Switch, 12x 5G, 4x SFP+

Authorised Aruba Partner

SKU:R8Q71A

In stock:23

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Aruba CX 6200M 48-port Class 6 PoE Layer 3 managed switch is built for branch, campus and SMB access deployments that need high-power PoE. This model delivers 36 x 1G Class 6 PoE ports plus 12 x SR5 (1/2.5/5G) multigigabit Class 6 PoE ports, with 60W available per port, and 4 x SFP+ ports for uplink or stacking.

Running the cloud-native AOS-CX operating system on a Gen7 ASIC, the switch offers non-blocking performance, VSF stacking of up to 8 units, and management locally, via Aruba Central or on-premises. Power supplies are modular and field-replaceable, with up to 1440W of PoE budget when fitted with two 1050W units. Power supplies are not included and at least one is required.

Features

- Runs AOS-CX, a modern cloud-native, programmable network operating system
- Aruba NetEdit and Aruba CX Mobile App support for simpler configuration and deployment
- Gen7 ASIC architecture for non-blocking performance
- Modular, field-replaceable power supplies and fan tray
- Layer 3 managed with Aruba Dynamic Segmentation support
- Managed locally, via Aruba Central or on-premises

Warranty

Aruba Networking offers a Limited Lifetime Warranty on many of its hardware products, including select switches and access points. This warranty covers defects in materials and workmanship for the duration of the product's life, with support available for up to five years after the product's end-of-sale date.
Other Aruba products come with warranties ranging from 1 to 5 years, depending on the specific model. Warranty terms can vary based on the product category and model number.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Aruba Networking products, ensuring your network infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.
https://www.hpe.com/psnow/doc/a00143138enw?jumpid=in_pdfviewer-psnow

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 36 x 10/100/1000BASE-T Class 6 PoE ports (60W per port)
- 12 x 1G/2.5G/5G SmartRate Class 6 PoE ports (60W per port)
- 4 x 1G/10G SFP+ ports for uplink or stacking
- PoE power budget up to 1440W with 2 x 1050W power supplies
- Switching capacity 272 Gbps, throughput 130.9 Mpps
- Latency 2.28 µs at 1Gbps, 1.46 µs at 10Gbps
- Quad-core Arm Cortex-A72 1.8 GHz CPU, 8 GB DDR4 RAM, 16 GB eMMC flash
- 2 hot-swappable PSU slots, at least 1 PSU required (JL086A 680W or JL087A 1050W supported, PSU not included)
- Includes 1 fan tray (JL669B) with 1 open slot
- 1U rack-mountable, 44.2 x 38.5 x 4.4 cm, 6.31 kg
- VSF stacking of up to 8 switches
- MACsec-256 on uplink ports, and on downlink ports 37-48 on this model

FAQs

Q: Does the R8Q71A include power supplies?
A: No. Power supplies are not included. At least one is required, and the switch supports the JL086A 680W and JL087A 1050W units across its 2 hot-swappable PSU slots.

Q: What is the maximum PoE budget?
A: Up to 1440W when fitted with two 1050W power supplies. Each of the 48 copper ports supports Class 6 PoE at up to 60W.

Q: How many multigigabit ports does this model have?
A: 12 ports support 1G, 2.5G and 5G SmartRate speeds with Class 6 PoE. The remaining 36 copper ports are 10/100/1000BASE-T Class 6 PoE.

Q: Can this switch be stacked?
A: Yes. It supports VSF stacking of up to 8 switches, using the SFP+ ports.

Q: What uplink options are available?
A: There are 4 x 1G/10G SFP+ ports that can be used for uplinks or stacking. MACsec-256 is supported on the uplink ports.

Q: How is the switch managed?
A: It runs AOS-CX and can be managed locally, through Aruba Central or on-premises. Aruba NetEdit and the Aruba CX Mobile App are also supported.
