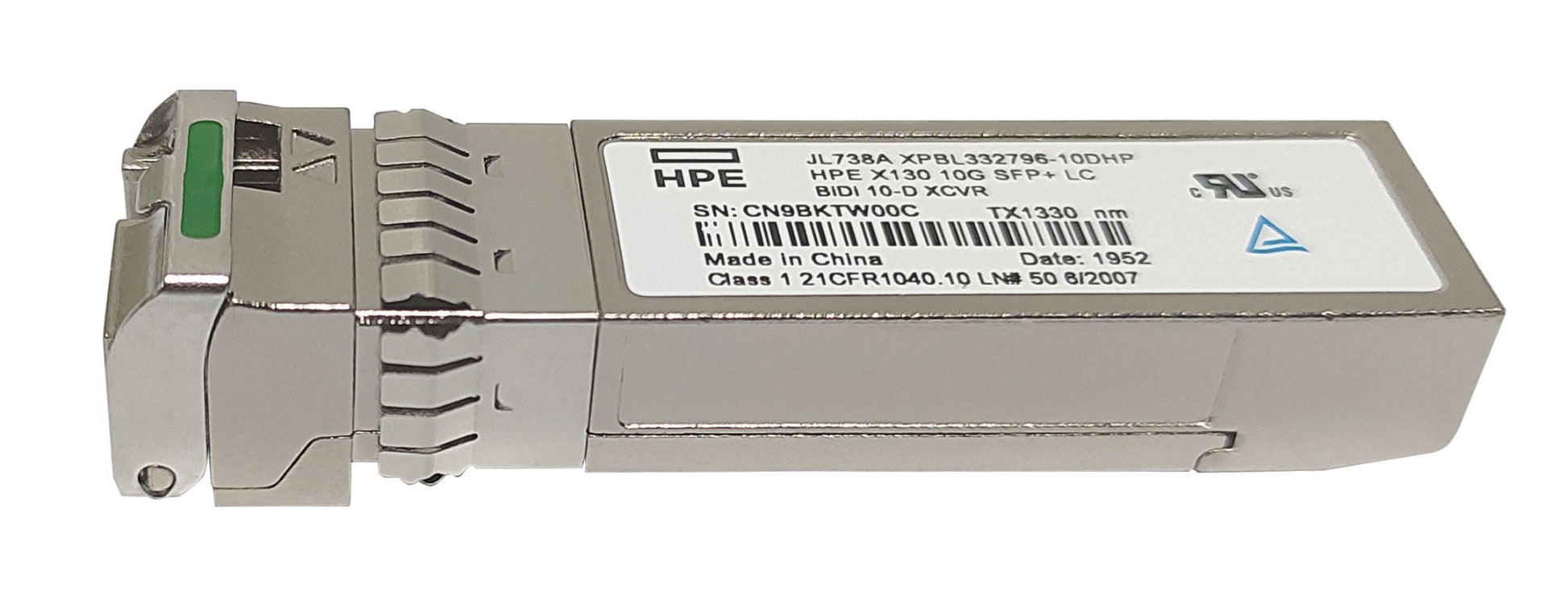

• Silver hpe jl738a x130 10g sfp+ bidi single-mode transceiver with green indicator light and labeled specifications
1 1

HPE

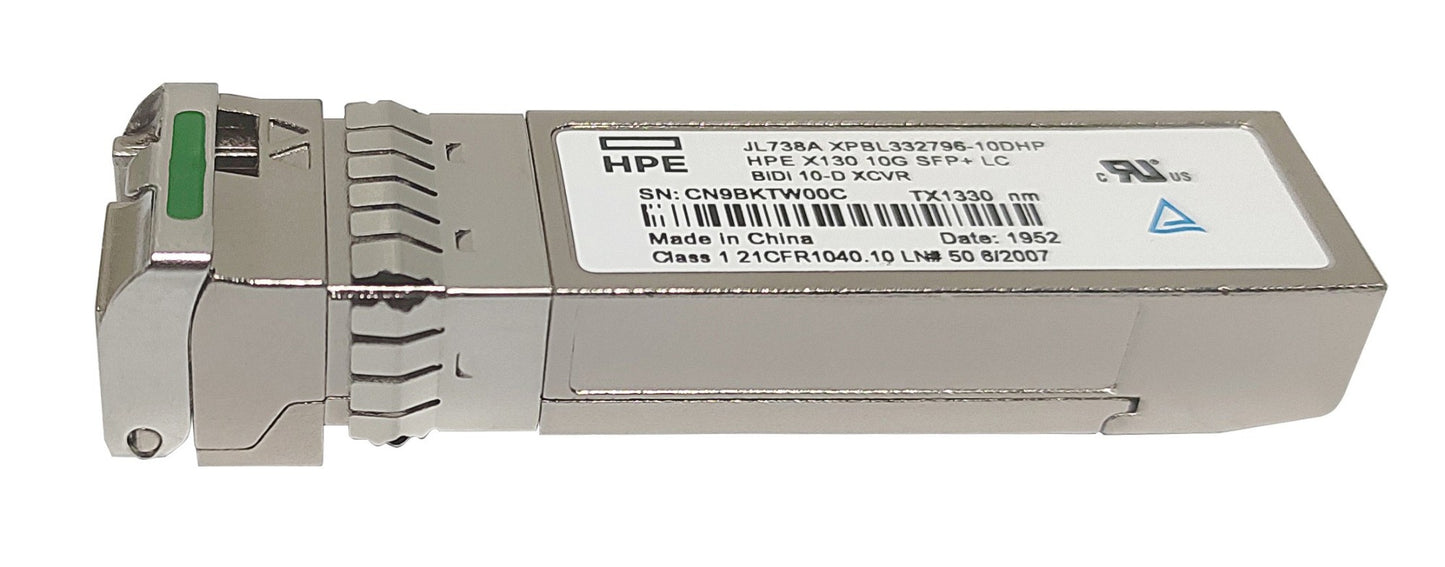

HPE JL738A | X130 10G SFP+ BiDi Transceiver, SMF, 10km, LC, 10-D

HPE JL738A | X130 10G SFP+ BiDi Transceiver, SMF, 10km, LC, 10-D

Authorised HPE Partner

JL738A

Stock Status: Enquire

$9,137.51 inc. GST
$8,306.83 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The HPE X130 10G SFP+ BiDi single-mode transceiver delivers 10 Gbps over a single strand of fibre for up to 10 km using an LC connector. This is the downlink (10-D) module, transmitting at 1330 nm and receiving at 1270 nm, so it is deployed as one half of a matched pair with the JL737A uplink (10-U) module at the remote end.

Bidirectional transmission over one fibre strand halves the fibre required for a link, which suits sites where fibre capacity is limited or expensive to extend. The hot-pluggable SFP+ form factor allows installation and replacement without powering down the switch, and the module is designed for HPE Networking Comware-based switches.

Features

- BiDi technology transmits and receives over one fibre strand, halving fibre infrastructure
- Downlink variant (TX 1330 nm / RX 1270 nm) that pairs with the JL737A uplink at the remote end
- Hot-pluggable SFP+ form factor
- Designed for HPE Networking Comware-based switches

Warranty

Hewlett Packard Enterprise (HPE) offers a standard limited hardware warranty on its products, with coverage periods varying by product line. For instance, HPE ProLiant servers typically come with a 1 to 3-year limited warranty, while other products may have different durations.
Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for HPE products, ensuring your IT infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 10GBASE-BX BiDi SFP+ transceiver
- Data rate: 10 Gbps
- Fibre type: single-mode (SMF), single strand
- Connector: LC simplex
- Maximum distance: 10 km
- TX wavelength: 1330 nm
- RX wavelength: 1270 nm
- Role: downlink (10-D)
- Compatible pair: JL737A (10-U uplink)
- Dimensions: 13 x 3.51 x 1.5 cm
- Weight: 0.1 kg

FAQs

Q: Which module does the JL738A pair with?
A: The JL738A is the downlink (10-D) module and must be paired with the JL737A uplink (10-U) module at the other end of the fibre link.

Q: What wavelengths does this transceiver use?
A: It transmits at 1330 nm and receives at 1270 nm. The JL737A at the far end uses the opposite wavelengths so the two can share a single fibre strand.

Q: What fibre and connector does it need?
A: It uses single-mode fibre with an LC simplex connector, and only a single strand is required for the link.

Q: What is the maximum reach?
A: The JL738A supports links of up to 10 km at 10 Gbps.

Q: Can I use two JL738A modules at both ends of a link?
A: No. A BiDi link needs one downlink (10-D) and one uplink (10-U) module, because the transmit and receive wavelengths must be complementary.

Q: Is the module hot-pluggable?
A: Yes. It is a hot-pluggable SFP+ module and can be inserted or removed without powering down the switch.
