HPE JH419A | X150 100G QSFP28 SWDM4 Transceiver, 100m MM, LC

Name: HPE JH419A | X150 100G QSFP28 SWDM4 Transceiver, 100m MM, LC
Brand: HPE
SKU: JH419A
Price: 5268.02 AUD
Availability: BackOrder

Authorised HPE Partner

SKU:JH419A

Stock Status: Enquire

$5,268.02 inc. GST

$4,789.11 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

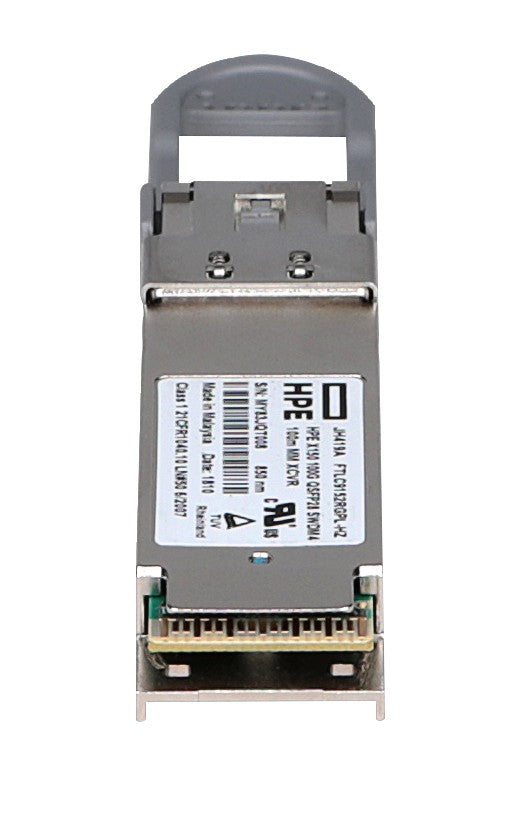

The HPE JH419A X150 100G QSFP28 SWDM4 transceiver delivers 100 Gigabit Ethernet over duplex LC multi-mode fibre at distances up to 100 m. It is designed for short-reach in-building and data centre links where 100GBASE-SWDM4 optics are required, and is listed for HPE FlexFabric 12900E series switches.

This hot-pluggable QSFP28 module uses a single duplex LC connector, so it can run over existing duplex multi-mode fibre cabling rather than requiring parallel fibre. It suits upgrades from lower speed links to 100GbE on supported HPE FlexFabric platforms.

Features

- Hot-pluggable QSFP28 module for 100GbE links over multi-mode fibre
- Supports short-reach in-building and data centre connectivity
- Duplex LC multi-mode fibre cabling

Warranty

Hewlett Packard Enterprise (HPE) offers a standard limited hardware warranty on its products, with coverage periods varying by product line. For instance, HPE ProLiant servers typically come with a 1 to 3-year limited warranty, while other products may have different durations.
Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for HPE products, ensuring your IT infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Form factor: QSFP28
- Standard: 100GBase-SWDM4
- Data rate: 100 Gbps (100 Gigabit Ethernet)
- Connector: 1 x LC duplex
- Media: Optical fibre, multi-mode
- Reach: up to 100 m (328 ft)
- Compatible with HPE FlexFabric 12900E 36-Port and 12902E

FAQs

Q: What is the maximum reach of the HPE JH419A transceiver?
A: It supports links up to 100 m over multi-mode fibre using 100GBASE-SWDM4 signalling.

Q: Which switches is the JH419A listed for?
A: It is listed for HPE FlexFabric 12900E 36-Port and 12902E series switches.

Q: What connector and fibre type does it use?
A: It uses a single duplex LC connector over multi-mode optical fibre.

Q: What is the form factor and data rate?
A: It is a QSFP28 module operating at 100 Gbps (100 Gigabit Ethernet).

Q: Is this transceiver hot-pluggable?
A: Yes, it is a hot-pluggable QSFP28 module.
