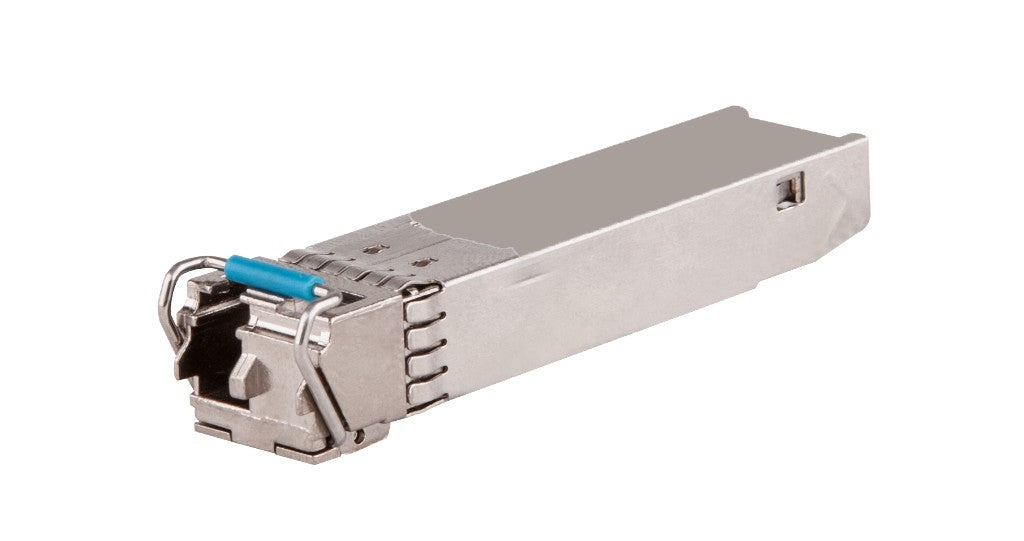

Aruba JD100A | X115 100M SFP Transceiver, BiDi BX 10-U, LC, 10km

Aruba JD100A | X115 100M SFP Transceiver, BiDi BX 10-U, LC, 10km

Authorised Aruba Partner

JD100A

Stock Status: Enquire

$740.63 inc. GST
$673.30 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The X115 100M SFP LC BX 10-U transceiver is a 100 Mb/s small form-factor pluggable module that uses BiDi (BX) single-fibre transmission over a reach of 10 km. It is the upstream-side unit (BX 10-U) of a matched BX pair and connects with a standard LC fibre connector.

Because BiDi optics carry transmit and receive over a single fibre strand, they suit deployments where fibre pairs are limited and Fast Ethernet links need to be extended between sites or buildings. This module is intended for use with HPE 5130 EI Series switches and must be paired with the matching downstream (BX 10-D) unit at the far end of the link.

Features

- BiDi single-fibre design reduces fibre strand requirements
- Upstream-side unit of a matched BX pair
- Standard LC connector for simple patching
- Hot-pluggable SFP form factor
- Extends Fast Ethernet links up to 10 km

Warranty

Aruba Networking offers a Limited Lifetime Warranty on many of its hardware products, including select switches and access points. This warranty covers defects in materials and workmanship for the duration of the product's life, with support available for up to five years after the product's end-of-sale date.
Other Aruba products come with warranties ranging from 1 to 5 years, depending on the specific model. Warranty terms can vary based on the product category and model number.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Aruba Networking products, ensuring your network infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.
https://www.hpe.com/psnow/doc/a00143138enw?jumpid=in_pdfviewer-psnow

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Data rate: 100 Mb/s (Fast Ethernet)
- Form factor: SFP
- Connector: LC
- Transmission: BiDi (BX) single fibre
- Reach: 10 km
- Role: BX 10-U (upstream side of the BX pair)
- Intended host: HPE 5130 EI Series switches

FAQs

Q: What is the difference between BX 10-U and BX 10-D?
A: BX 10-U is the upstream-side module and BX 10-D is the downstream-side module. A BiDi link needs one of each at opposite ends of the single fibre.

Q: Which switches is this transceiver intended for?
A: It is intended for use with HPE 5130 EI Series switches.

Q: What speed does the X115 BX 10-U operate at?
A: It operates at 100 Mb/s (Fast Ethernet), so the connected port must support 100M SFP optics.

Q: How many fibre strands does it need?
A: One. BiDi (BX) optics transmit and receive over a single fibre strand using different wavelengths.

Q: What connector does it use?
A: It uses a standard LC connector.

Q: What is the maximum reach?
A: The BX 10 designation indicates a reach of up to 10 km over single-mode fibre.
