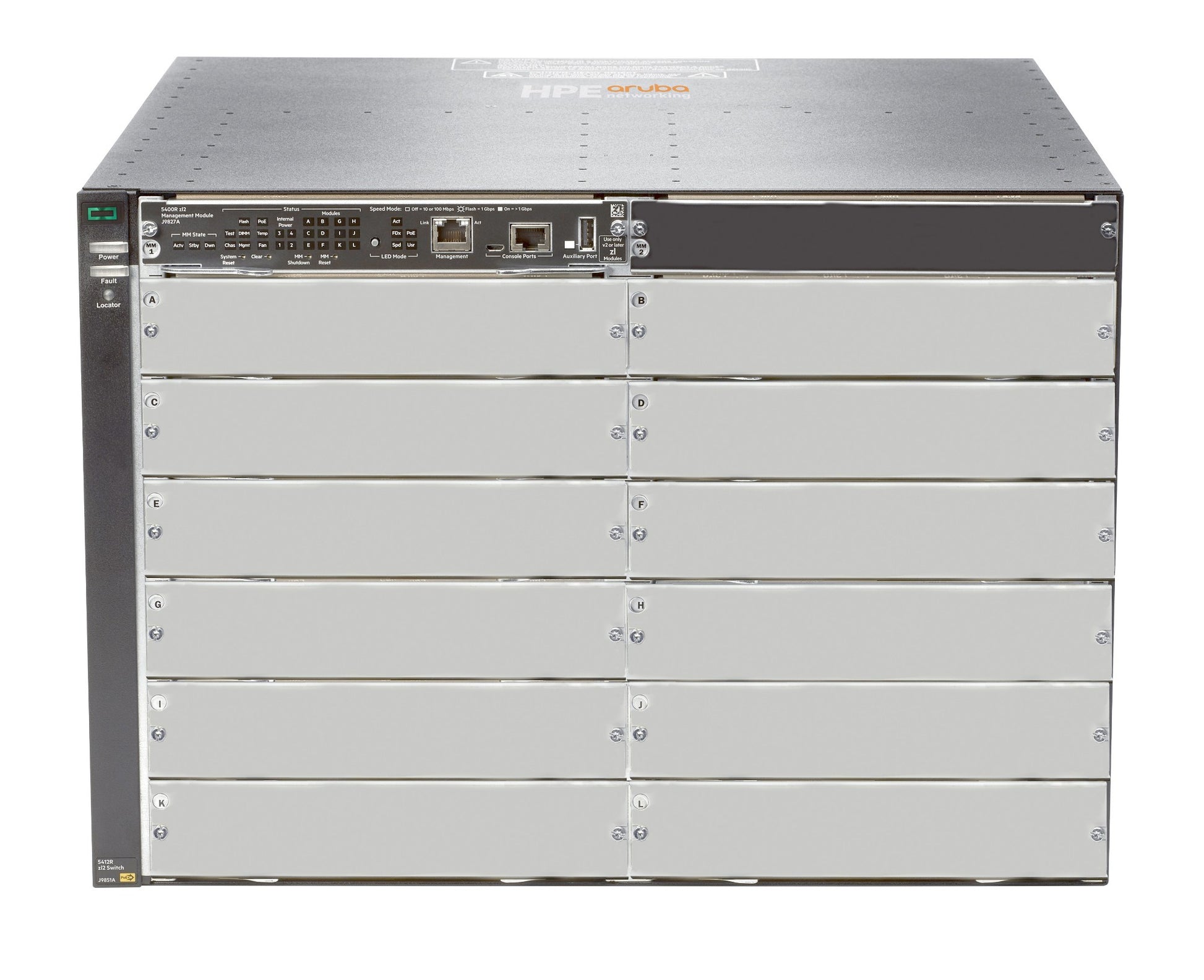

Aruba J9822A | 5412R zl2 12-Slot Layer 3 Modular Switch Chassis, 7U

Authorised Aruba Partner

SKU:J9822A

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Aruba 5412R zl2 J9822A is a 12-slot, 7U Layer 3 modular switch chassis from the Aruba 5400R zl2 Switch Series, built for high-performance, low-latency and resilient campus networks. It ships with the J9827A management module and J9832A fan tray installed, so you add the power supplies and interface modules that suit your deployment. The chassis offers 12 open zl module slots and 4 power supply slots, supporting up to 288 autosensing 10/100/1000 ports, 96 SFP+ ports, 96 Smart Rate multi-gigabit ports or 24 x 40GbE ports, or a combination.

PoE+ is available across up to 288 ports when fitted with PoE+ modules and suitable power supplies. The platform supports VSF stacking, Dynamic Segmentation, REST APIs and OpenFlow, and integrates with Aruba ClearPass Policy Manager, AirWave and Central. Interface modules and power supplies are ordered separately, so the port mix is configured to your requirements.

Features

- Layer 3 modular switch with VSF stacking and Dynamic Segmentation
- HPE Smart Rate multi-gigabit (IEEE 802.3bz) and PoE+ support
- Redundant management and hot-swappable power supplies
- Scalable line-rate 40GbE for wireless traffic aggregation
- Software-defined networking ready, with REST APIs and OpenFlow support
- Management through Aruba ClearPass Policy Manager, AirWave and Central

Warranty

Aruba Networking offers a Limited Lifetime Warranty on many of its hardware products, including select switches and access points. This warranty covers defects in materials and workmanship for the duration of the product's life, with support available for up to five years after the product's end-of-sale date.
Other Aruba products come with warranties ranging from 1 to 5 years, depending on the specific model. Warranty terms can vary based on the product category and model number.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Aruba Networking products, ensuring your network infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.
https://www.hpe.com/psnow/doc/a00143138enw?jumpid=in_pdfviewer-psnow

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 12 open zl module slots (modules ordered separately)
- 4 power supply slots, minimum 2 power supplies required (ordered separately)
- Includes 1 x 5400R zl2 Management Module (J9827A)
- Includes 1 x 5412R zl2 Switch Fan Tray (J9832A)
- Supports up to 288 autosensing 10/100/1000 ports, 288 SFP ports, 96 SFP+ ports, 96 Smart Rate multi-gigabit ports or 24 x 40GbE ports, or a combination
- Up to 288 ports of PoE+ with PoE+ modules and power supplies
- Management module: Freescale P2020 dual core 1.2 GHz, 16 MB flash, 1 GB SD card, 4 GB DDR3 SODIMM
- Latency: under 2.8 µs (1GbE), under 1.8 µs (10GbE), under 1.5 µs (40GbE)
- Dimensions (W x D x H): 44.45 x 45.09 x 30.73 cm (7U)
- Weight: 17.28 kg (38.1 lb)
- Layer 3 modular chassis

FAQs

Q: Does the J9822A include power supplies and interface modules?
A: No. The chassis includes the J9827A management module and J9832A fan tray only. Power supplies and zl interface modules are ordered separately.

Q: How many power supplies does the 5412R zl2 need?
A: The chassis has 4 power supply slots and requires a minimum of 2 power supplies to operate.

Q: How many ports can the 5412R zl2 support?
A: With its 12 module slots it supports up to 288 autosensing 10/100/1000 ports, 288 SFP ports, 96 SFP+ ports, 96 Smart Rate multi-gigabit ports or 24 x 40GbE ports, or a combination, depending on the modules fitted.

Q: Does this switch support PoE+?
A: Yes. Up to 288 ports of PoE+ are available when fitted with PoE+ interface modules and suitable power supplies.

Q: How much rack space does the chassis need?
A: The J9822A is a 7U chassis measuring 44.45 x 45.09 x 30.73 cm (W x D x H) and weighing 17.28 kg.

Q: Is the J9822A a Layer 3 switch?
A: Yes. It is a Layer 3 modular chassis with VSF stacking, Dynamic Segmentation and support for REST APIs and OpenFlow.
