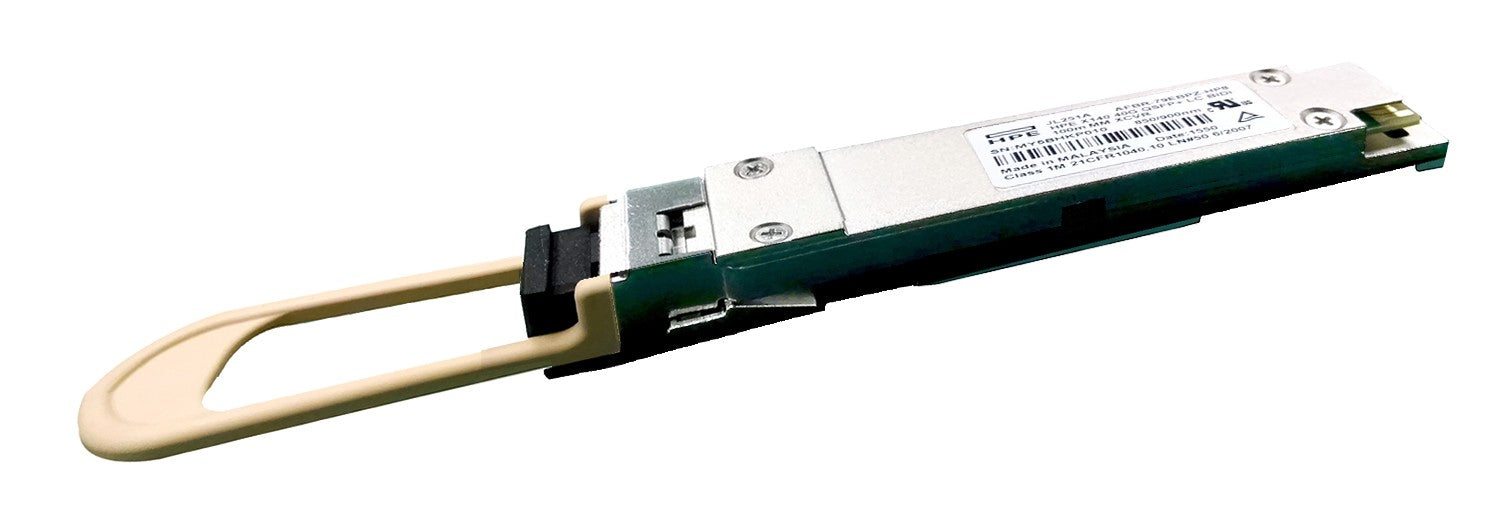

• HPE 841716-B21 40GBASE-SR-BiDi QSFP+ green silver transceiver with beige handle
1 1

HPE

HPE 841716-B21 | 40G QSFP+ BiDi Transceiver, MMF, LC Duplex, 850/900nm

HPE 841716-B21 | 40G QSFP+ BiDi Transceiver, MMF, LC Duplex, 850/900nm

Authorised HPE Partner

841716-B21

Stock Status: Enquire

$2,998.05 inc. GST
$2,725.50 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The HPE 841716-B21 is a 40GBASE-SR-BiDi QSFP+ transceiver that delivers 40 Gigabit Ethernet over multimode fibre using a single duplex LC connection. Its bidirectional 850/900nm design lets you run 40GbE links over existing LC duplex cabling, avoiding the cost and effort of moving to MPO/MTP trunk cabling in server and switch uplink deployments.

The hot-pluggable QSFP+ module supports digital diagnostics monitoring and is designed for HPE servers and networking equipment. It sits alongside HPE 40GbE QSFP+ MPO transceivers, so you can mix optics types to suit high-density, low-power 40GbE designs.

Features

- Reuses existing duplex LC fibre cabling for 40GbE, avoiding MPO/MTP cabling
- Carries four electrical data lanes in each direction over a single LC duplex fibre
- Works alongside HPE 40GbE QSFP+ MPO transceivers for flexible high-density, low-power 40GbE designs
- Hot-pluggable QSFP+ module
- Designed for HPE servers and networking equipment

Warranty

Hewlett Packard Enterprise (HPE) offers a standard limited hardware warranty on its products, with coverage periods varying by product line. For instance, HPE ProLiant servers typically come with a 1 to 3-year limited warranty, while other products may have different durations.
Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for HPE products, ensuring your IT infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Form factor: QSFP+ (hot-pluggable)
- Standard: 40GBASE-SR-BiDi, 40 Gigabit Ethernet
- Connector: 1 x LC duplex
- Media: multimode fibre (MMF)
- Wavelengths: 850nm and 900nm bidirectional
- Operating temperature: 0°C to 70°C
- Digital diagnostics monitoring (DDM/DOM) supported

FAQs

Q: What type of fibre does the HPE 841716-B21 use?
A: It uses multimode fibre with a single duplex LC connection, so it can run over existing LC duplex cabling rather than requiring MPO/MTP trunks.

Q: What is the difference between this BiDi transceiver and a standard 40GBASE-SR4 QSFP+?
A: A standard SR4 optic uses an MPO/MTP connector and multiple fibre pairs. This BiDi module carries four electrical lanes in each direction over one duplex LC fibre pair, which makes it suited to reusing existing LC cabling.

Q: Is the transceiver hot-pluggable?
A: Yes. It is a hot-pluggable QSFP+ module and can be inserted or removed while the host device is powered.

Q: Does it support digital diagnostics monitoring?
A: Yes. It supports DDM/DOM so you can monitor optical module parameters from a compatible host device.

Q: Can it be used alongside HPE 40GbE QSFP+ MPO transceivers?
A: Yes. It can be deployed alongside HPE 40GbE QSFP+ MPO transceivers, allowing you to mix optic types in high-density, low-power 40GbE designs.

Q: What is the operating temperature range?
A: The module operates from 0°C to 70°C.
