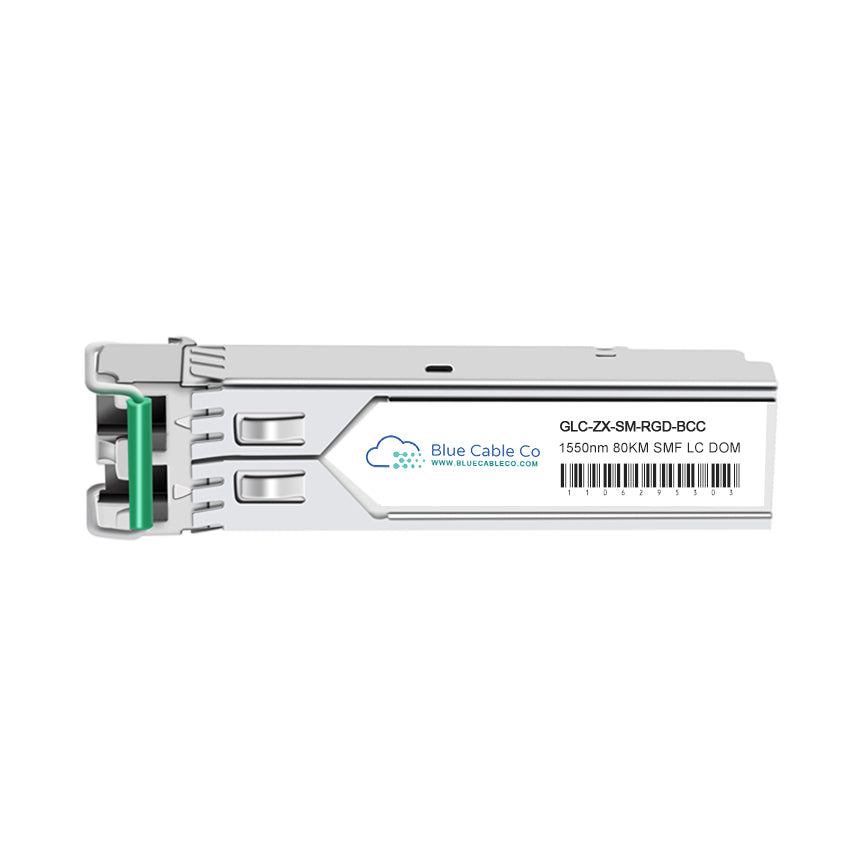

GLC-ZX-SM-RGD-BCC | Cisco Compatible 1GB Single-Mode 70km (1000BASE-ZX) Rugged / Industrial

Q: Will this work in place of the Cisco GLC-ZX-SM-RGD?

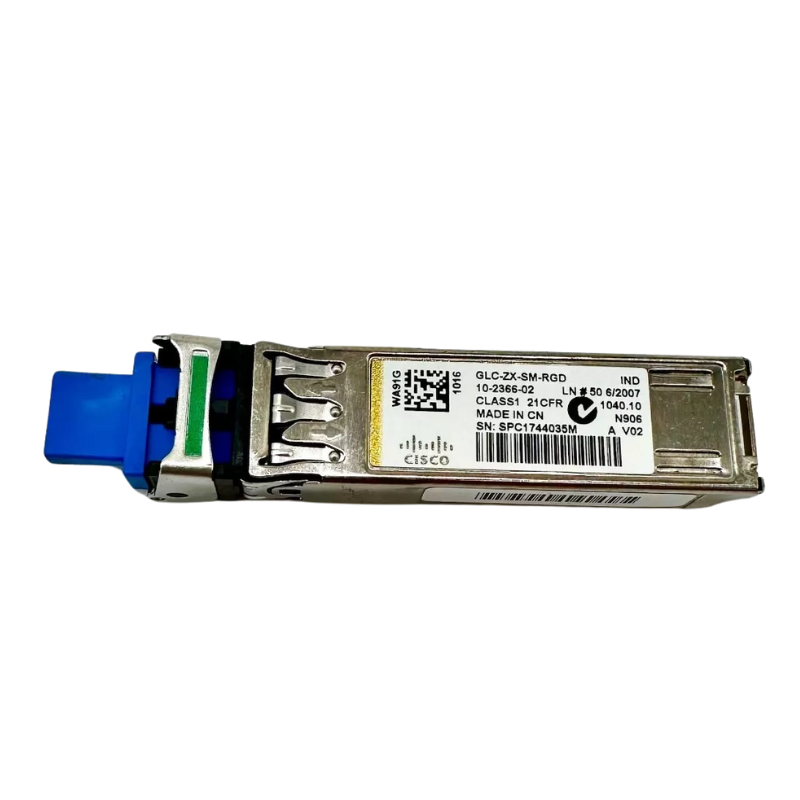

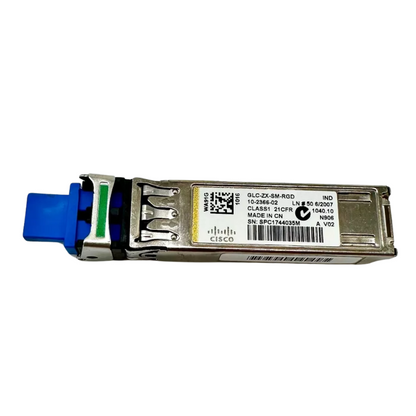

A: Yes. The GLC-ZX-SM-RGD-BCC is a direct replacement for the Cisco GLC-ZX-SM-RGD. Both conform to the IEEE 802.3z 1000BASE-ZX standard, share the same SFP form factor, operate at 1.25 Gbps over single-mode fibre at 1550 nm, and support up to 70 km reach with DOM. This module is plug-and-play compatible and will initialise identically in any Cisco SFP port that supports the original part.

Q: What Cisco platforms support this industrial SFP?
A: This module is compatible with any Cisco switch or router that supports 1000BASE-ZX SFPs in an industrial temperature environment. Cisco industrial platforms such as the Catalyst IE3100, IE4000, IE5000 series, and ruggedised variants of enterprise switches with Gigabit SFP ports will support this transceiver. Verify your platform's compatibility matrix for GLC-ZX-SM-RGD support, particularly for industrial-rated (-40°C to +85°C) operation.

Q: Why does 1000BASE-ZX use 1550 nm wavelength instead of 1310 nm?
A: The 1550 nm wavelength is chosen for extended-reach applications because single-mode fibre exhibits lower attenuation at 1550 nm (approximately 0.25 dB/km) compared to 1310 nm (approximately 0.35 dB/km). This lower loss enables the 70 km reach with a 21 dB link budget. Additionally, 1550 nm experiences less chromatic dispersion penalty over long spans, making it the preferred wavelength for metro and carrier-class Gigabit Ethernet links.

Q: When do I need to add an inline optical attenuator with this transceiver?
A: An inline 10 dB optical attenuator must be inserted at each end of the link whenever the fibre span loss is less than 8 dB. This condition typically occurs on short single-mode runs or with very high-quality low-loss fibre. Without attenuation, the receiver can be overloaded, causing bit errors and link instability. Always measure your link budget and add attenuation as needed to keep received optical power within the transceiver's sensitivity range.

Q: Can this industrial SFP operate in a commercial temperature environment, and what are the thermal design considerations?
A: Yes, industrial-rated transceivers operate across the full commercial range (0°C to +70°C ambient) as a subset of their -40°C to +85°C case temperature specification. However, note that the case temperature of the SFP typically runs 20°C above the ambient cabinet temperature. In fanless industrial switches or outdoor enclosures without active cooling, ensure adequate thermal margins. DOM monitoring allows you to track real-time case temperature and set alarms if thermal limits are approached.
