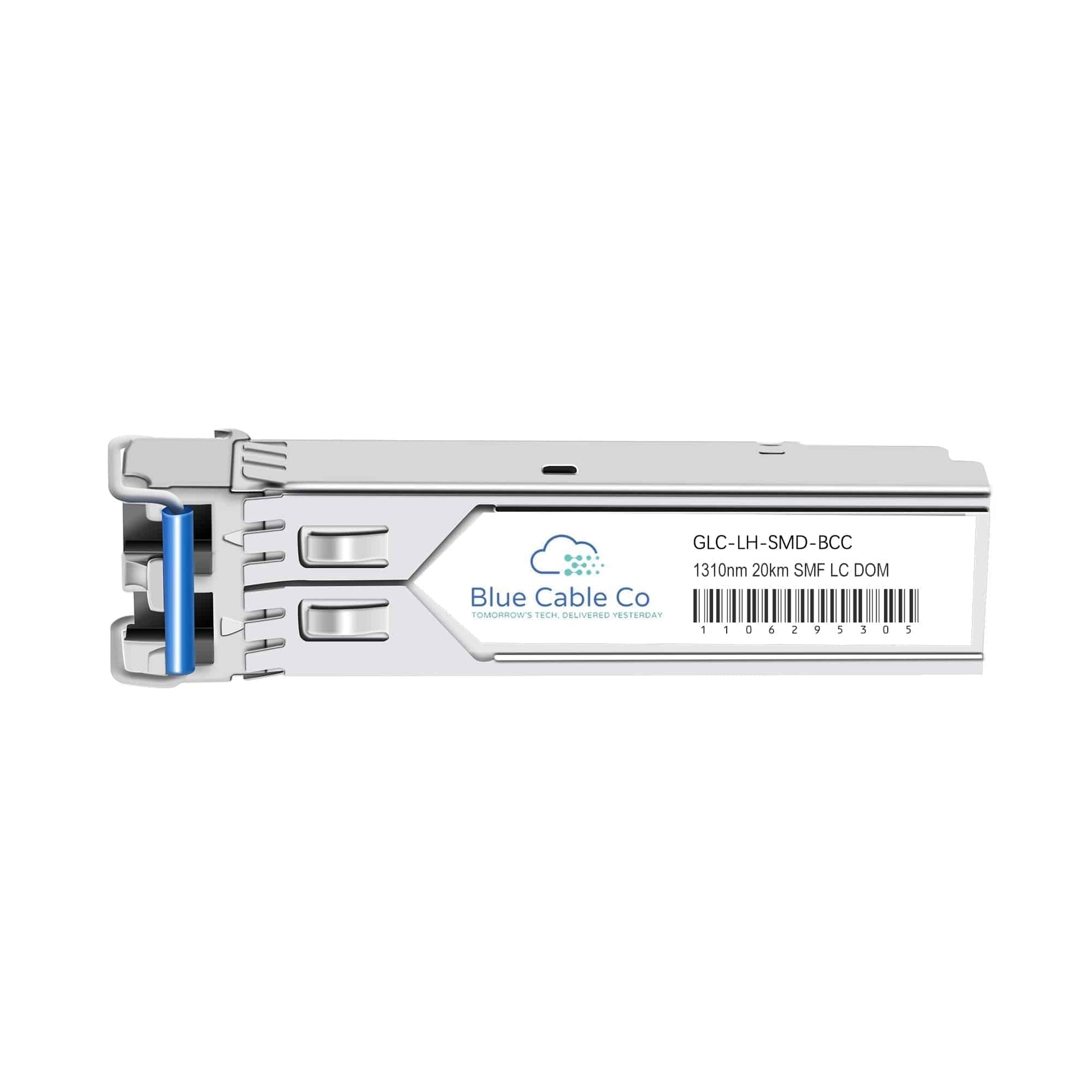

• GLC-LH-SMD-BCC Cisco compatible SFP with blue connector and Blue Cable Co label
1 1

Blue Cable Co

GLC-LH-SMD-BCC | Cisco Compatible 1GB Single-Mode 20km (1000BASE-LX)

GLC-LH-SMD-BCC | Cisco Compatible 1GB Single-Mode 20km (1000BASE-LX)

GLC-LH-SMD-BCC

In stock:28

$56.10 AUD
$56.10 AUD
$56.10 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The GLC-LH-SMD-BCC is a drop-in compatible replacement for the Cisco GLC-LH-SMD. This SFP transceiver operates as plug-and-play with Cisco switches and routers that support 1GB SFP connectivity. - IEEE 802.3z 1000BASE-LX/LH standard compliance ensures interoperability with other standards-based Gigabit Ethernet equipment - SFP form factor operating at 1.25Gbps, 1310nm wavelength, duplex LC connector - Up to 10km reach on single-mode fibre (SMF), up to 550m on multimode fibre (OM1/OM2 with mode-conditioning patch cord) - Digital Optical Monitoring (DOM) support per SFF-8472 MSA enables real-time monitoring of transmit/receive power, temperature, voltage, and laser bias current - Hot-swappable design allows installation and removal without powering down network devices - Extended temperature rating (-5°C to 85°C) suitable for enterprise and light industrial environments

Features

• IEEE 802.3z 1000BASE-LX/LH compliance guarantees interoperability with standards-based switches, routers, and optical transceivers from any vendor supporting the same standard, eliminating vendor lock-in concerns
• Dual fibre type support operates on 9/125 micron single-mode fibre for 10km spans or OM1/OM2 multimode fibre up to 550m when used with appropriate mode-conditioning patch cord, offering deployment flexibility within the same SKU
• SFF-8472 Digital Optical Monitoring provides five real-time diagnostic parameters (optical transmit power, optical receive power, temperature, laser bias current, supply voltage) with threshold alarms and warnings accessible via management interface
• 1310nm centre wavelength with FP (Fabry-Perot) laser transmitter and PIN photodiode receiver architecture delivers cost-effective performance for campus backbone, building-to-building interconnect, and data centre edge connectivity
• Extended temperature rating (-5°C to 85°C) exceeds commercial specification (0°C to 70°C) for reliable operation in environmentally challenged telecom closets, outdoor cabinets with climate control, and light industrial settings
• Hot-swap capability allows field replacement without powering down host equipment or disrupting adjacent ports, reducing maintenance windows and maximising uptime for production networks
• LC duplex connector interface with keyed insertion prevents incorrect insertion and ensures repeatable optical performance across installation and maintenance cycles

Warranty

5-Year Advanced Warranty on All Blue Cable Co® Products

Blue Cable Co® offers a comprehensive 5-Year Advanced Warranty on all our branded products. Our advanced warranty ensures fast, hassle-free replacements to keep your network running smoothly. If a fault occurs, we'll deliver a replacement part before you return the faulty itemminimising downtime and giving you complete peace of mind.

Choose Blue Cable Co® for reliable, high-quality network components backed by industry-leading warranty support.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Alternate Part Codes

Replaces (older part #)

FAQs

Datasheet

Compatible SFP Selector

Technical Specifications

Brand: Blue Cable Co
BCC SKU: GLC-LH-SMD-BCC
Compatible Replacement For: GLC-LH-SMD
Compatibility: Cisco compatible
Lab Testing: Tested in Sydney, Australia
Warranty: 5-year advanced hardware replacement (Blue Cable Co)
Form Factor: SFP (Small Form-Factor Pluggable)
Data Rate: 1.25 Gbps (1000BASE-LX/LH)
Wavelength: 1310nm
Fibre Type: Single-mode (SMF) and multimode (MMF)
Connector Type: Duplex LC/PC
DOM Support: Yes (SFF-8472 compliant)
Standards: IEEE 802.3z 1000BASE-LX, IEEE 802.3ah
Max Reach: Up to 10km on SMF (9/125 micron), up to 550m on MMF (OM1/OM2 with mode-conditioning patch cord)
Operating Temperature: -5°C to 85°C (extended temperature range)
Power Supply: Single 3.3V
Power Consumption: Up to 1W typical

Alternate Part Codes

GLC-LH-SMD=

Replaces (older part #)

GLC-LH-SM

FAQs

Q: Will this work in place of the Cisco GLC-LH-SMD?
A: Yes. The GLC-LH-SMD-BCC is IEEE 802.3z 1000BASE-LX/LH compliant with matching electrical, optical, and mechanical specifications including 1.25Gbps data rate, 1310nm wavelength, SFP form factor, and duplex LC connector. It operates plug-and-play in any Cisco device with an SFP slot that supports the GLC-LH-SMD.

Q: Which Cisco platforms support this transceiver?
A: This transceiver is compatible with any Cisco switch or router with SFP slots supporting 1GB connectivity and the 1000BASE-LX/LH standard. This includes Catalyst 2960/2960-X/2960-S series, Catalyst 3560/3650/3750 series, Catalyst 9200/9300 series, Nexus platforms with SFP support, ASR 901/903/1000/9000 series routers, ISR G2/4000 series routers, and ASA 5500 series appliances. Verify your specific platform datasheet lists GLC-LH-SMD compatibility.

Q: What are the fibre requirements for 10km reach?
A: 10km reach requires 9/125 micron single-mode fibre (SMF) meeting ITU-T G.652 specification. For multimode fibre operation (OM1 62.5 micron or OM2 50 micron), reach is limited to 550m and an IEEE-compliant mode-conditioning patch cord is required at the transmit end to offset differential mode delay and prevent modal noise from the 1310nm laser source.

Q: How do I access the Digital Optical Monitoring parameters?
A: DOM parameters are accessible via CLI or SNMP on the host device. On Cisco IOS, use "show interfaces transceiver" or "show interfaces [interface-id] transceiver detail" to view real-time optical transmit power, receive power, temperature, bias current, and voltage. Thresholds and alarm flags are stored in the transceiver EEPROM per SFF-8472 and reported to the host for proactive link health monitoring.

Q: Can I mix this transceiver with other 1000BASE-LX modules on the same link?
A: Yes. Because this transceiver is 1000BASE-LX/LH standards-compliant, it interoperates with any other 1000BASE-LX/LH module (OEM or third-party) on the same fibre span. Transmit power (-9.5 to -3 dBm) and receive sensitivity (-20 dBm minimum) match IEEE 802.3z specifications, ensuring link budget compatibility regardless of the transceiver at the opposite end of the fibre.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Compatible SFP Selector

Need a Compatible SFP or QSFP Transceiver?

Use the Blue Cable Co Compatible SFP Selector to quickly filter by vendor compatibility, speed, form factor, fibre type, distance and connector and only see options that exist in our range.
Fully tested. No brand-tax. Sydney re-coding available if required.

Find Compatible Transceivers
