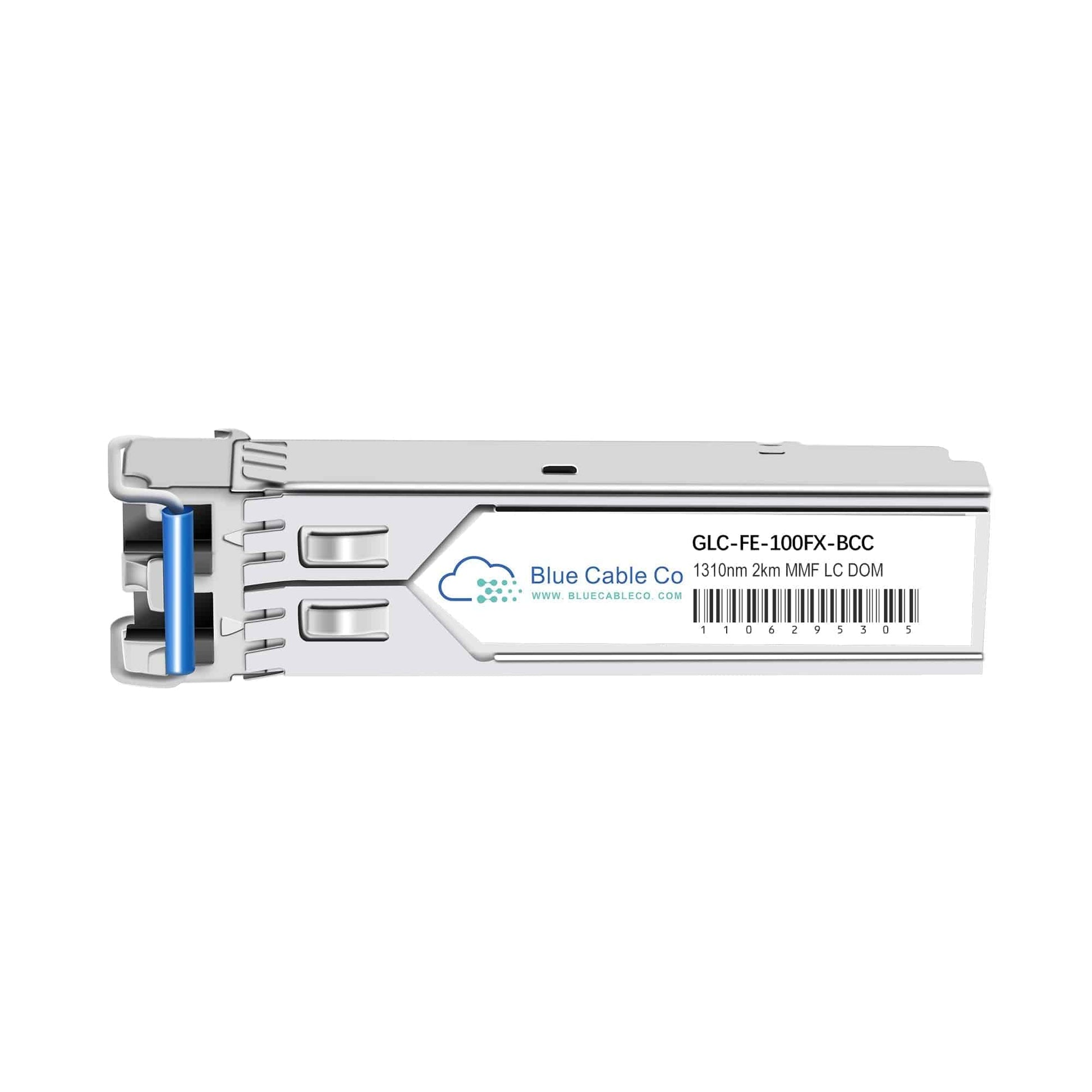

• Silver SFP+ transceiver with blue fiber connector, Blue Cable Co label, GLC-FE-100FX-BCC Cisco compatible
1 1

Blue Cable Co

GLC-FE-100FX-BCC | Cisco Compatible 100MB Multi-Mode - 2km (100BASE-FX)

GLC-FE-100FX-BCC | Cisco Compatible 100MB Multi-Mode - 2km (100BASE-FX)

GLC-FE-100FX-BCC

In stock:16

$36.94 AUD
$36.94 AUD
$36.94 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The GLC-FE-100FX-BCC is a drop-in compatible replacement for the Cisco GLC-FE-100FX. It provides plug-and-play connectivity in Fast Ethernet or dual-rate Fast/Gigabit Ethernet ports on Cisco switches and routers. - IEEE 802.3 100BASE-FX compliance ensures interoperability with industrywide Fast Ethernet interfaces - SFP form factor with 100 Mbps data rate over multi-mode fibre at 1310 nm wavelength, supporting link distances up to 2 km - Digital Diagnostics Monitoring (DDM) support provides real-time access to operating parameters including optical power, temperature, and voltage - Dual LC connector interface with extended temperature range operation from -5 to 85 degrees Celsius - Hot-swappable design allows installation and removal without interrupting network traffic or requiring device reboot - Compliant with SFP Multi-Source Agreement (MSA) standards for seamless integration with MSA-compatible networking equipment

Features

• IEEE 802.3 100BASE-FX standard compliance guarantees interoperability with any 100BASE-FX compliant switch, router, or media converter regardless of vendor
• FP laser transmitter and PIN photodiode receiver operating at 1310 nm wavelength with minimum 14 dB optical budget for reliable 2 km reach over OM1, OM2, or higher grade multi-mode fibre
• DDM/DOM functionality exposes real-time transceiver diagnostics (optical transmit/receive power, temperature, voltage, bias current) via the two-wire serial interface for proactive monitoring and troubleshooting
• Extended temperature range (-5 to 85 degrees Celsius) supports operation in uncontrolled environments such as wiring closets, outdoor cabinets, and industrial settings
• Hot-swappable SFP footprint enables field replacement and network reconfiguration without powering down the host device or interrupting adjacent port traffic
• Dual-rate capable transceivers can operate in both dedicated Fast Ethernet ports and Gigabit Ethernet ports configured for 100 Mbps speed, providing deployment flexibility across mixed-speed networks

Warranty

5-Year Advanced Warranty on All Blue Cable Co® Products

Blue Cable Co® offers a comprehensive 5-Year Advanced Warranty on all our branded products. Our advanced warranty ensures fast, hassle-free replacements to keep your network running smoothly. If a fault occurs, we'll deliver a replacement part before you return the faulty itemminimising downtime and giving you complete peace of mind.

Choose Blue Cable Co® for reliable, high-quality network components backed by industry-leading warranty support.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Alternate Part Codes

FAQs

Compatible SFP Selector

Technical Specifications

Brand: Blue Cable Co
BCC SKU: GLC-FE-100FX-BCC
Compatible Replacement For: GLC-FE-100FX
Compatibility: Cisco compatible
Lab Testing: Tested in Sydney, Australia
Warranty: 5-year advanced hardware replacement (Blue Cable Co)
Form Factor: SFP (Small Form-Factor Pluggable)
Data Rate: 100 Mbps (Fast Ethernet)
Wavelength: 1310 nm
Fibre Type: Multi-Mode Fibre (MMF)
Connector Type: Dual LC
DOM Support: Yes (Digital Diagnostics Monitoring)
Standards: IEEE 802.3 100BASE-FX
Max Reach: Up to 2 km (per datasheet, subject to fibre and link conditions)
Operating Temperature: -5 to 85 degrees Celsius (extended temperature range)
Power Consumption: Up to 1 W per port

Alternate Part Codes

GLC-FE-100FX=, GLC-FE-100FX-RF

FAQs

Q: Will this work in place of the Cisco GLC-FE-100FX?
A: Yes. The GLC-FE-100FX-BCC is engineered as a direct replacement for the Cisco GLC-FE-100FX. It meets the IEEE 802.3 100BASE-FX standard, matches the SFP form factor, operates at the same 1310 nm wavelength over multi-mode fibre, and is plug-and-play compatible with Cisco Fast Ethernet and dual-rate Fast/Gigabit Ethernet ports.

Q: Which Cisco platforms support this transceiver?
A: This transceiver operates in Fast Ethernet SFP ports or dual-rate Fast/Gigabit Ethernet SFP ports on Cisco switches and routers. Confirmed compatible platforms include Cisco ASR920, IE2000, IE4000, IR1101, ISR1100, Catalyst 2960, 3560, and 3750 series. Refer to the Cisco 100M Ethernet SFP Compatibility Matrix for a complete list of supported devices.

Q: What types of multi-mode fibre are supported and what reach can I expect?
A: This transceiver is specified for 2 km reach over standard multi-mode fibre including OM1 (62.5/125 micron) and OM2 (50/125 micron) grades. The module provides a minimum 14 dB optical budget. Actual reach depends on fibre quality, connector loss, splice loss, and total link attenuation. Higher-grade OM3 or OM4 fibre will also work but does not extend the reach beyond 2 km for this 100BASE-FX application.

Q: Can I mix this transceiver with Cisco original GLC-FE-100FX modules on the same link?
A: Yes. Because both transceivers comply with the IEEE 802.3 100BASE-FX standard and operate at the same 1310 nm wavelength over multi-mode fibre with the same electrical and optical specifications, they are fully interoperable. You can deploy this BCC transceiver at one end and a Cisco original at the other end, or mix them across a network without compatibility issues.

Q: Does this transceiver support both 100 Mbps and 155 Mbps data rates?
A: The transceiver chipset is capable of supporting data rates up to 155 Mbps for applications such as STM-1 (SONET/SDH) in addition to 100 Mbps Fast Ethernet. However, the actual supported speed and protocol depend on the host port configuration. When installed in a Cisco Fast Ethernet or dual-rate SFP port, it operates at 100 Mbps for 100BASE-FX. The host device determines the active data rate and application.
