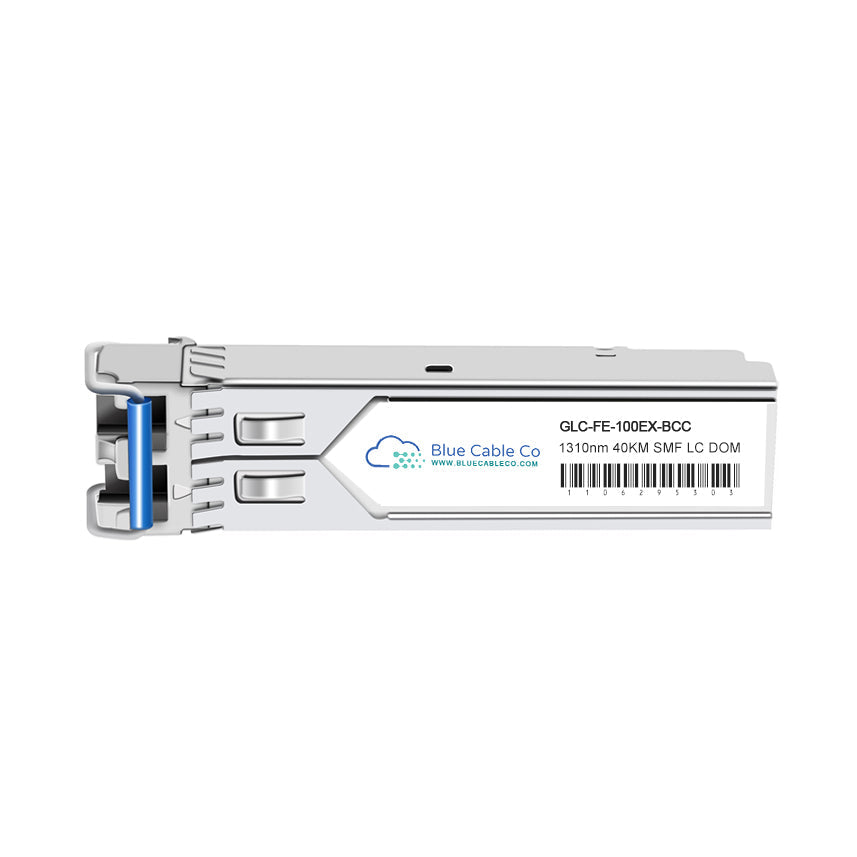

• GLC-FE-100EX-BCC Cisco compatible silver SFP transceiver with blue connector
1 1

Blue Cable Co

GLC-FE-100EX-BCC | Cisco Compatible 100MB Single-Mode 40km (100BASE-EX)

GLC-FE-100EX-BCC | Cisco Compatible 100MB Single-Mode 40km (100BASE-EX)

GLC-FE-100EX-BCC

Stock Status: Enquire

$60.50 AUD
$60.50 AUD
$60.50 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The GLC-FE-100EX-BCC is a drop-in compatible replacement for the Cisco GLC-FE-100EX. This transceiver operates in Fast Ethernet or dual-rate Fast/Gigabit Ethernet ports of Cisco switches and routers. - 100BASE-EX standard compliance ensures interoperability with IEEE 802.3z-compliant Fast Ethernet infrastructure - SFP form factor, 100 Mbps data rate, 1310nm wavelength, single-mode fibre, up to 40km reach - LC duplex connector, operates on standard 9/125 micron SMF - Digital Diagnostic Monitoring (DDM) support for real-time transceiver parameter visibility - Hot-swappable design allows installation and removal without powering down the host device - Low power consumption, typically 1W per port

Features

• IEEE 802.3z compliance guarantees interoperability with Fast Ethernet switching and routing platforms using 100BASE-EX physical layer specification
• 1310nm FP laser transmitter and InGaAs PIN receiver architecture optimised for long-reach single-mode fibre transmission up to 40km
• DDM functionality provides access to real-time optical power levels, temperature, voltage, and bias current via I2C interface for proactive link monitoring
• Operates in Fast Ethernet (100M) or dual-rate Fast/Gigabit Ethernet ports, simplifying deployment across mixed-speed infrastructure
• Single 3.3V power supply with low thermal profile (typically 1W) enables high-density port configurations without additional cooling requirements
• Hot-pluggable SFP footprint supports field installation and replacement without interrupting adjacent ports or requiring system shutdown
• Metal enclosure provides EMI shielding and meets RoHS compliance for lead-free operation

Warranty

5-Year Advanced Warranty on All Blue Cable Co® Products

Blue Cable Co® offers a comprehensive 5-Year Advanced Warranty on all our branded products. Our advanced warranty ensures fast, hassle-free replacements to keep your network running smoothly. If a fault occurs, we'll deliver a replacement part before you return the faulty itemminimising downtime and giving you complete peace of mind.

Choose Blue Cable Co® for reliable, high-quality network components backed by industry-leading warranty support.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Alternate Part Codes

FAQs

Compatible SFP Selector

Technical Specifications

Brand: Blue Cable Co
BCC SKU: GLC-FE-100EX-BCC
Compatible Replacement For: GLC-FE-100EX
Compatibility: Cisco compatible
Lab Testing: Tested in Sydney, Australia
Warranty: 5-year advanced hardware replacement (Blue Cable Co)
Form Factor: SFP
Data Rate: 100 Mbps (100BASE-EX)
Wavelength: 1310nm
Fibre Type: Single-Mode (SMF)
Connector Type: LC Duplex
DOM Support: Yes (DDM)
Standards: IEEE 802.3z, SFP MSA SFF-8074i
Max Reach: Up to 40km on 9/125 micron SMF (per datasheet, subject to fibre and link conditions)
Operating Temperature: 0 to 70C (commercial)
Power Consumption: Up to 1W per port

Alternate Part Codes

GLC-FE-100EX-RF, GLC-FE-100EX=

FAQs

Q: Will this work in place of the Cisco GLC-FE-100EX?
A: Yes. The GLC-FE-100EX-BCC is engineered as a plug-and-play replacement for the Cisco GLC-FE-100EX, matching the 100BASE-EX standard, SFP form factor, 100 Mbps data rate, 1310nm wavelength, and 40km reach specification. It will initialise and operate identically in any Cisco platform that supports the GLC-FE-100EX.

Q: Which Cisco platforms support this transceiver?
A: This transceiver operates in Fast Ethernet or dual-rate Fast/Gigabit Ethernet SFP ports across Cisco switching and routing platforms. It is compatible with any Cisco device featuring an SFP slot that supports 100BASE-EX or dual-rate operation. Specific platform compatibility depends on the port supporting 100M or dual-rate 100M/1G capability.

Q: What fibre type and specifications are required for 40km reach?
A: This transceiver requires standard single-mode fibre (SMF) with 9/125 micron core/cladding diameter. The 40km maximum reach assumes clean fibre with sufficient link budget to accommodate connector losses, splice losses, and fibre attenuation. Actual reach depends on total path loss and must remain within the optical power budget defined in the 100BASE-EX specification.

Q: Can I access DDM parameters, and what do they tell me?
A: Yes. This transceiver supports Digital Diagnostic Monitoring per SFF-8472. You can query real-time transmit power, receive power, temperature, supply voltage, and laser bias current via the I2C interface. These parameters enable proactive identification of degraded fibre, marginal power budgets, or transceiver thermal issues before they cause link failures.

Q: What happens if I use this in a Gigabit Ethernet port?
A: In a dual-rate Fast/Gigabit Ethernet port, the transceiver will negotiate and operate at 100 Mbps, not 1 Gbps. The GLC-FE-100EX-BCC is a 100BASE-EX device and does not support Gigabit signalling. If the port requires Gigabit operation, this transceiver will not meet that requirement. Use it only where 100 Mbps Fast Ethernet connectivity is acceptable.
