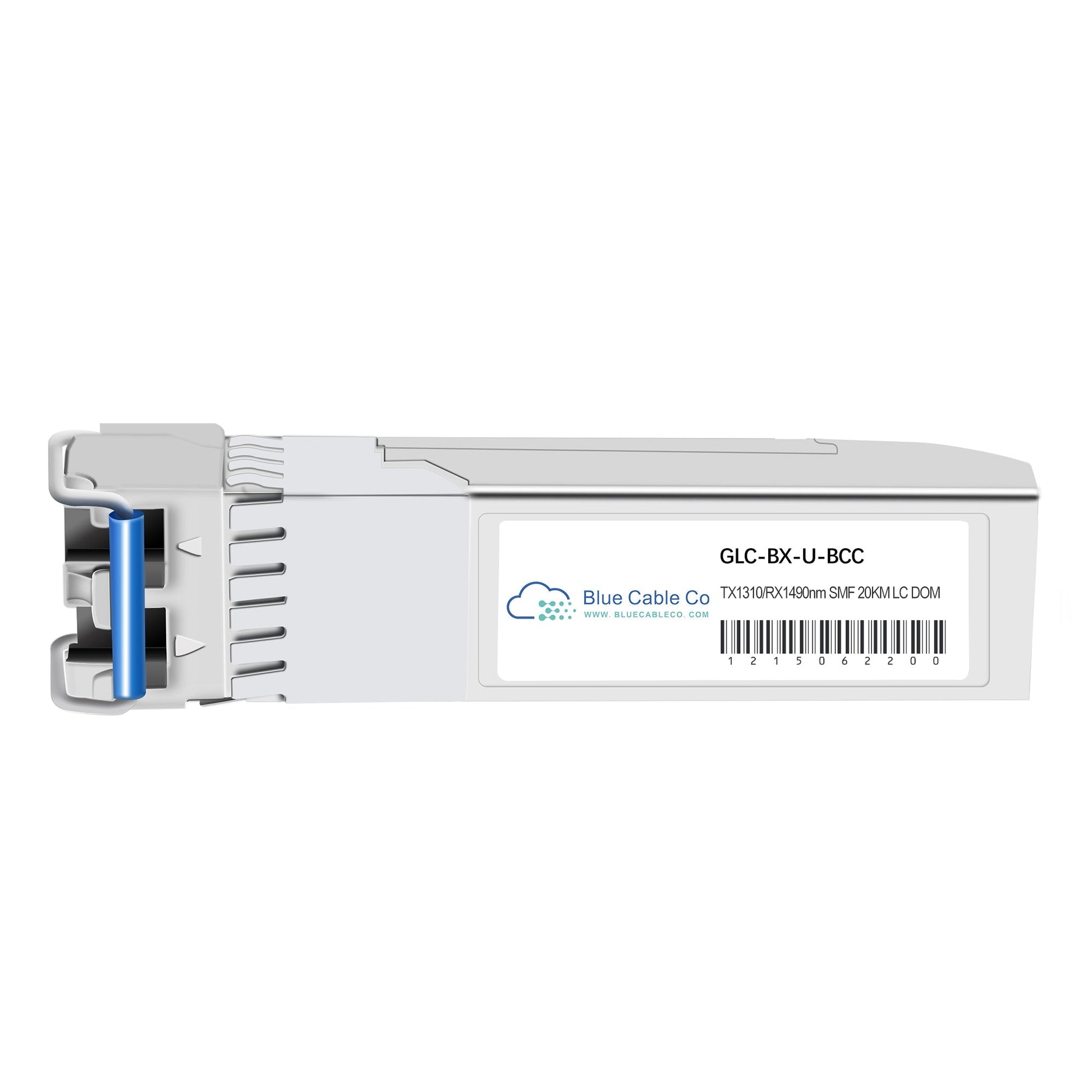

• Silver GLC-BX-U-BCC SFP+ transceiver with blue fiber connector and white label
1 1

Blue Cable Co

GLC-BX-U-BCC | Cisco Compatible 1GB BiDi Transceiver - 10km (1000BASE-BX-U)

GLC-BX-U-BCC | Cisco Compatible 1GB BiDi Transceiver - 10km (1000BASE-BX-U)

GLC-BX-U-BCC

In stock:13

$55.99 AUD
$55.99 AUD
$55.99 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The GLC-BX-U-BCC is a drop-in compatible replacement for the Cisco GLC-BX-U. This BiDi transceiver offers plug-and-play compatibility with Cisco switches and routers that support 1000BASE-BX10-U interfaces. - IEEE 802.3ah 1000BASE-BX10-U compliant, guaranteeing interoperability with standard-based BiDi networks - SFP form factor, 1.25 Gbps data rate, single-mode fibre with 1310nm transmit and 1490nm receive wavelengths - Operates over a single fibre strand up to 10km, reducing fibre infrastructure cost by half compared to dual-fibre connections - Simplex LC connector with DOM support for real-time monitoring of optical power, temperature, bias current, and supply voltage - Must be paired with a complementary 1490nm-TX/1310nm-RX downstream transceiver (such as GLC-BX-D) for bidirectional communication - Operating temperature range 0 to 70°C, 1W maximum power consumption

Features

• IEEE 802.3ah 1000BASE-BX10-U compliance ensures interoperability with any standards-based BiDi downstream device using complementary 1490nm-TX/1310nm-RX wavelengths
• WDM technology integrates transmit and receive paths on separate wavelengths over a single fibre strand, doubling effective capacity of existing single-mode infrastructure
• SFF-8472 MSA-compliant DOM provides real-time access to optical output power, optical input power, module temperature, laser bias current, and transceiver supply voltage for proactive link health monitoring
• Low 1W power consumption and 0 to 70°C commercial temperature rating suit high-density switch deployments without additional cooling requirements
• Hot-swappable SFP form factor allows field replacement without powering down the host device, minimizing service interruption during maintenance
• 13 dB minimum optical power budget supports links up to 10 km over G.652 single-mode fibre, subject to patch cord insertion loss and splicing attenuation

Warranty

5-Year Advanced Warranty on All Blue Cable Co® Products

Blue Cable Co® offers a comprehensive 5-Year Advanced Warranty on all our branded products. Our advanced warranty ensures fast, hassle-free replacements to keep your network running smoothly. If a fault occurs, we'll deliver a replacement part before you return the faulty itemminimising downtime and giving you complete peace of mind.

Choose Blue Cable Co® for reliable, high-quality network components backed by industry-leading warranty support.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Alternate Part Codes

FAQs

Compatible SFP Selector

Technical Specifications

Brand: Blue Cable Co
BCC SKU: GLC-BX-U-BCC
Compatible Replacement For: GLC-BX-U
Compatibility: Cisco compatible
Lab Testing: Tested in Sydney, Australia
Warranty: 5-year advanced hardware replacement (Blue Cable Co)
Form Factor: SFP (mini-GBIC)
Data Rate: 1.25 Gbps
Standard: IEEE 802.3ah 1000BASE-BX10-U
Wavelength: 1310nm TX / 1490nm RX
Fibre Type: Single-Mode Fibre (SMF)
Connector Type: Simplex LC/PC
Max Reach: 10 km
DOM Support: Yes (SFF-8472 MSA compliant)
Operating Temperature: 0 to 70°C (32 to 158°F)
Power Consumption: 1W maximum
Transmit Power: -9 to -3 dBm
Receive Sensitivity: -19.5 dBm maximum

Alternate Part Codes

GLC-BX-U=

FAQs

Q: Will this work in place of the Cisco GLC-BX-U?
A: Yes. The GLC-BX-U-BCC is IEEE 802.3ah 1000BASE-BX10-U compliant, matching the Cisco GLC-BX-U in form factor, data rate, wavelength, and reach. It is plug-and-play compatible and will initialize as expected in any Cisco platform that supports the original GLC-BX-U.

Q: Which Cisco platforms support this transceiver?
A: This transceiver works in any Cisco switch or router with SFP ports that support 1000BASE-BX10-U operation. This includes Catalyst series switches and many ISR routers. Consult your platform's transceiver compatibility matrix or datasheet to confirm 1000BASE-BX support for your specific model.

Q: Why does this BiDi transceiver require a paired downstream module?
A: BiDi transceivers use WDM technology to separate transmit and receive on different wavelengths over one fibre. The GLC-BX-U-BCC transmits at 1310nm and receives at 1490nm. The far-end device must transmit at 1490nm and receive at 1310nm (such as a GLC-BX-D). Mismatched wavelength pairs will not establish a link.

Q: What fibre type and patch cord are required for 10 km reach?
A: This transceiver requires G.652 standard single-mode fibre with a simplex LC/PC connector. The 10 km reach assumes typical fibre attenuation of 0.5 dB/km and connector insertion loss under 0.75 dB per mating. Poor fibre quality, dirty connectors, or excessive splices will reduce maximum reach.

Q: Can I monitor link health and optical power in real time?
A: Yes. This module supports DOM per SFF-8472 MSA. When queried via compatible network operating system commands (such as 'show interfaces transceiver' on Cisco IOS), it reports current transmit power, receive power, temperature, bias current, and voltage. This data helps diagnose marginal links before they fail.
