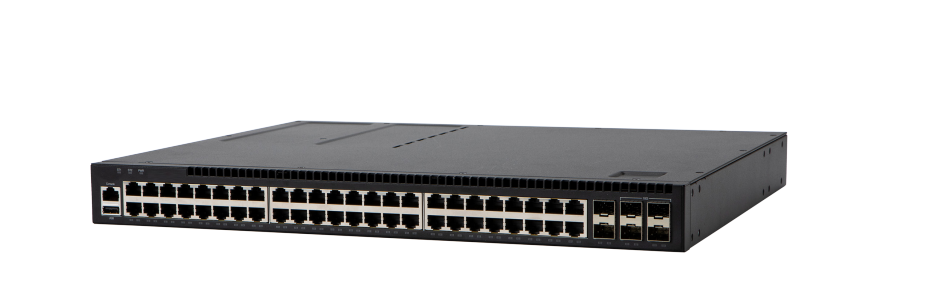

• Fortinet FS-AX2630S-48P4XW black L2 switch with 48 PoE+ ports and ventilation
1 1

Fortinet

Fortinet FS-AX2630S-48P4XW | FortiSwitch AX2630S 48-Port Gigabit PoE+ Switch, 2x 1G SFP, 4x 10G SFP+

Fortinet FS-AX2630S-48P4XW | FortiSwitch AX2630S 48-Port Gigabit PoE+ Switch, 2x 1G SFP, 4x 10G SFP+

Authorised Fortinet Partner

FS-AX2630S-48P4XW

Stock Status: Enquire

$8,664.50 inc. GST
$7,876.82 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The FortiSwitch AX2630S-48P4XW is a 48-port Gigabit PoE/PoE+ Layer 2 Ethernet switch built for powering and connecting access points, IP phones, cameras and other PoE devices at the network edge. It pairs 48 x 10/100/1000BASE-T PoE/PoE+ ports with 2 x 1G SFP ports and 4 x 10G/1G SFP+ ports for flexible fibre uplinks.

The 10G/1G SFP+ ports can also be used for stacking, and the switch includes an in-built fan with one AC power supply fitted. A spare power supply slot is available for redundancy, making it a practical choice for access layer deployments that need PoE capacity and resilient power.

Features

- 48 PoE/PoE+ ports for powering access points, phones and cameras
- 4 x 10G/1G SFP+ ports usable for stacking
- 2 x 1G SFP ports for fibre or SFP uplinks
- Redundant power supply slot for improved resilience
- In-built cooling fan

Warranty

Fortinet provides robust warranty coverage for its hardware and software products, with durations and terms based on product category:
• Hardware Warranty: All Fortinet hardware products come with a 1-year (365 days) limited warranty from the Warranty Start Date, covering material defects in workmanship when compared to the published Functional Specifications.
• Software Warranty: Fortinet software is warranted for 90 days from the Warranty Start Date. An exception is FortiToken, which carries a 1-year warranty.
• Limited Lifetime Warranty Products:
Some products are covered by extended terms:
o FortiAP and FortiSwitch (excluding FortiSwitch-5000 series) include a limited lifetime warranty valid for 5 years beyond the product’s announced end-of-life date.
o FortiSwitch-5000 series is covered under the standard 1-year hardware warranty.
Extended Warranty Options:
IP Trading offers extended warranty solutions and ongoing FortiCare support services for Fortinet hardware. Contact our team to customise a support package that matches your operational needs.
https://www.fortinet.com/content/dam/fortinet/assets/legal/EULA.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 48 x 10/100/1000BASE-T ports with PoE/PoE+
- 2 x 1G SFP ports
- 4 x 10G/1G SFP+ ports, can be used for stacking
- Layer 2 Ethernet switch
- In-built fan
- 1 x AC power supply included
- 1 x power supply slot available for redundancy

FAQs

Q: How many PoE ports does the FS-AX2630S-48P4XW have?
A: It has 48 x 10/100/1000BASE-T ports that support PoE and PoE+.

Q: What uplink ports are provided?
A: The switch includes 2 x 1G SFP ports and 4 x 10G/1G SFP+ ports.

Q: Can the switch be stacked?
A: Yes, the 4 x 10G/1G SFP+ ports can be used for stacking.

Q: Does it support power supply redundancy?
A: One AC power supply is included and there is a power supply slot available for a second unit for redundancy.

Q: Is this a Layer 2 or Layer 3 switch?
A: It is a Layer 2 Ethernet switch.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
