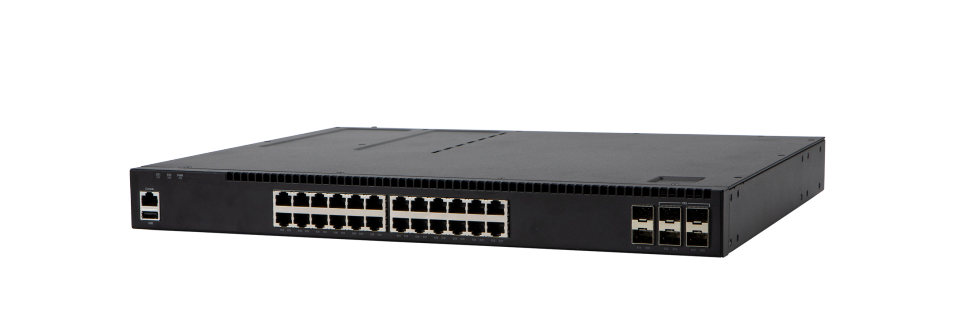

• Fortinet FS-AX2630S-24P4XW black layer 2 switch with PoE+ ports and SFP
1 1

Fortinet

Fortinet FS-AX2630S-24P4XW | FortiSwitch AX2630S 24-Port PoE+ Switch, 4x 10G SFP+

Fortinet FS-AX2630S-24P4XW | FortiSwitch AX2630S 24-Port PoE+ Switch, 4x 10G SFP+

Authorised Fortinet Partner

FS-AX2630S-24P4XW

Stock Status: Enquire

$4,340.30 inc. GST
$3,945.73 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Fortinet FS-AX2630S-24P4XW is a Layer 2 Gigabit PoE+ switch with 24x 10/100/1000BASE-T PoE/PoE+ ports, 2x 1G SFP ports and 4x 10G/1G SFP+ ports. It suits access-layer deployments where IP phones, wireless access points and cameras need to be powered over Ethernet, with high-speed fibre uplinks back to the core.

The four SFP+ ports can also be used for stacking, allowing multiple switches to be combined into a single managed unit. The switch ships with an in-built fan and one AC power supply installed, and includes a power supply slot for a redundant second unit.

Features

- Stacking capable via the 10G SFP+ ports
- Redundant power supply slot for improved availability
- PoE/PoE+ on all 24 copper ports for phones, access points and cameras
- Fibre uplink flexibility with 1G SFP and 10G/1G SFP+ ports

Warranty

Fortinet provides robust warranty coverage for its hardware and software products, with durations and terms based on product category:
• Hardware Warranty: All Fortinet hardware products come with a 1-year (365 days) limited warranty from the Warranty Start Date, covering material defects in workmanship when compared to the published Functional Specifications.
• Software Warranty: Fortinet software is warranted for 90 days from the Warranty Start Date. An exception is FortiToken, which carries a 1-year warranty.
• Limited Lifetime Warranty Products:
Some products are covered by extended terms:
o FortiAP and FortiSwitch (excluding FortiSwitch-5000 series) include a limited lifetime warranty valid for 5 years beyond the product’s announced end-of-life date.
o FortiSwitch-5000 series is covered under the standard 1-year hardware warranty.
Extended Warranty Options:
IP Trading offers extended warranty solutions and ongoing FortiCare support services for Fortinet hardware. Contact our team to customise a support package that matches your operational needs.
https://www.fortinet.com/content/dam/fortinet/assets/legal/EULA.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 24x 10/100/1000BASE-T ports with PoE/PoE+
- 2x 1G SFP ports
- 4x 10G/1G SFP+ ports, can be used for stacking
- Layer 2 switching
- In-built fan
- 1x AC power supply included
- 1x power supply slot for redundancy

FAQs

Q: How many PoE ports does the FS-AX2630S-24P4XW have?
A: It has 24x 10/100/1000BASE-T ports that support PoE and PoE+.

Q: What uplink options are available?
A: The switch provides 2x 1G SFP ports and 4x 10G/1G SFP+ ports for fibre or direct attach uplinks.

Q: Can this switch be stacked?
A: Yes. The 4x 10G/1G SFP+ ports can be used for stacking.

Q: Is power supply redundancy supported?
A: The switch includes one AC power supply and has a slot for a second power supply for redundancy.

Q: Is this a Layer 2 or Layer 3 switch?
A: It is a Layer 2 Ethernet switch.

Q: Does the switch have a built-in fan?
A: Yes, it has an in-built fan for cooling.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
