• Fortinet FS-AX2340S-24TH4X black fanless switch with 24 1G ports and 4 10G SFP+
1 1

Fortinet

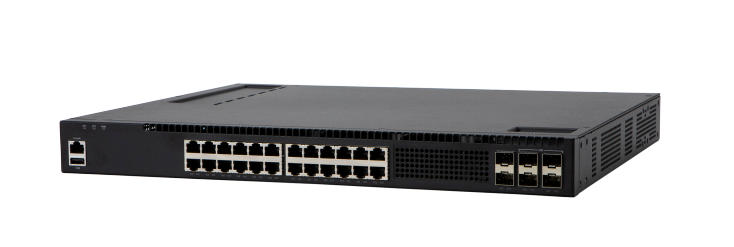

Fortinet FS-AX2340S-24TH4X | FortiSwitch AX 24-Port Gigabit L2 Switch, 4x 10G SFP+, Fanless

Fortinet FS-AX2340S-24TH4X | FortiSwitch AX 24-Port Gigabit L2 Switch, 4x 10G SFP+, Fanless

Authorised Fortinet Partner

FS-AX2340S-24TH4X

Stock Status: Enquire

$2,713.86 inc. GST
$2,467.15 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The FS-AX2340S-24TH4X is a fanless Layer 2 Ethernet switch with 24x 10/100/1000BASE-T ports, 2x 1G SFP ports and 4x 10G/1G SFP+ ports. It is temperature-hardened for an operating range of -10°C to 50°C and uses an in-built AC power supply, making it well suited to access-layer deployments where silent, low-maintenance operation matters.

The silent, fanless design suits offices, retail sites and edge locations where noise and dust ingestion are a concern. The 10G/1G SFP+ ports provide high-speed uplinks to aggregation or core switching, while the 1G SFP ports allow fibre connections to nearby switches or devices.

Features

- Fanless design for silent operation
- Temperature-hardened for demanding environments
- 24 Gigabit copper ports for endpoint connectivity
- 4x 10G/1G SFP+ ports for high-speed uplinks
- 2x 1G SFP ports for fibre connectivity
- In-built AC power supply simplifies installation

Warranty

Fortinet provides robust warranty coverage for its hardware and software products, with durations and terms based on product category:
• Hardware Warranty: All Fortinet hardware products come with a 1-year (365 days) limited warranty from the Warranty Start Date, covering material defects in workmanship when compared to the published Functional Specifications.
• Software Warranty: Fortinet software is warranted for 90 days from the Warranty Start Date. An exception is FortiToken, which carries a 1-year warranty.
• Limited Lifetime Warranty Products:
Some products are covered by extended terms:
o FortiAP and FortiSwitch (excluding FortiSwitch-5000 series) include a limited lifetime warranty valid for 5 years beyond the product’s announced end-of-life date.
o FortiSwitch-5000 series is covered under the standard 1-year hardware warranty.
Extended Warranty Options:
IP Trading offers extended warranty solutions and ongoing FortiCare support services for Fortinet hardware. Contact our team to customise a support package that matches your operational needs.
https://www.fortinet.com/content/dam/fortinet/assets/legal/EULA.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 24x 10/100/1000BASE-T RJ45 ports
- 2x 1G SFP ports
- 4x 10G/1G SFP+ ports
- Layer 2 Ethernet switching
- Fanless design
- In-built AC power supply
- Temperature-hardened model, -10°C to 50°C operating range

FAQs

Q: Is the FS-AX2340S-24TH4X a Layer 2 or Layer 3 switch?
A: It is a Layer 2 Ethernet switch.

Q: Does this switch have a fan?
A: No. It is a fanless design, so it operates silently.

Q: What uplink options does it provide?
A: It has 4x 10G/1G SFP+ ports and 2x 1G SFP ports, which can be used for fibre or direct-attach uplinks.

Q: What temperature range does this model support?
A: It is a temperature-hardened model rated for -10°C to 50°C.

Q: Does it have an internal power supply?
A: Yes. It has an in-built AC power supply, so no external power adapter is required.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
