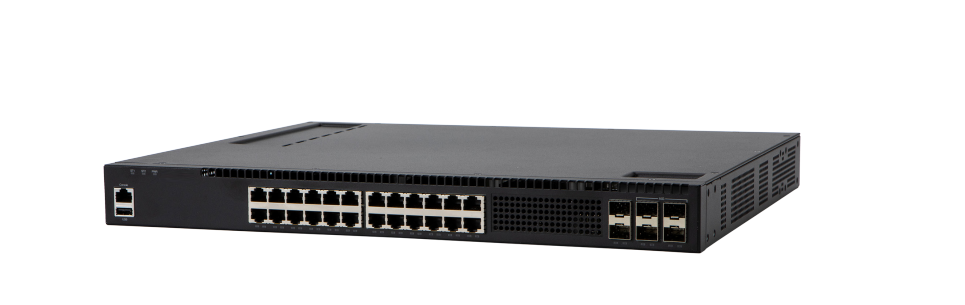

• Fortinet FS-AX2340S-24PH4X fanless switch with 24 PoE+ ports and ventilation
1 1

Fortinet

Fortinet FS-AX2340S-24PH4X | FortiSwitch AX 24-Port PoE+ Switch, 4x 10G SFP+, Fanless

Fortinet FS-AX2340S-24PH4X | FortiSwitch AX 24-Port PoE+ Switch, 4x 10G SFP+, Fanless

Authorised Fortinet Partner

FS-AX2340S-24PH4X

Stock Status: Enquire

$4,026.71 inc. GST
$3,660.65 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Fortinet FS-AX2340S-24PH4X is a fanless Layer 2 Ethernet switch with 24 Gigabit PoE/PoE+ ports, 2x 1G SFP ports and 4x 10G SFP+ uplinks. It suits branch offices, campus access layers and other deployments that need to power IP phones, wireless access points and cameras from a single compact switch, with silent, fanless operation.

This temperature-strengthened model operates from -10 to 50 degrees Celsius and includes a built-in AC power supply, so no external power module is required. The mix of SFP and SFP+ ports provides flexible fibre uplink options for connecting back to the core or aggregation layer.

Features

- Fanless design for silent operation
- 24 PoE/PoE+ ports to power phones, access points and cameras
- SFP and SFP+ ports for flexible fibre uplinks
- Built-in AC power supply
- Extended temperature range of -10 to 50 degrees Celsius

Warranty

Fortinet provides robust warranty coverage for its hardware and software products, with durations and terms based on product category:
• Hardware Warranty: All Fortinet hardware products come with a 1-year (365 days) limited warranty from the Warranty Start Date, covering material defects in workmanship when compared to the published Functional Specifications.
• Software Warranty: Fortinet software is warranted for 90 days from the Warranty Start Date. An exception is FortiToken, which carries a 1-year warranty.
• Limited Lifetime Warranty Products:
Some products are covered by extended terms:
o FortiAP and FortiSwitch (excluding FortiSwitch-5000 series) include a limited lifetime warranty valid for 5 years beyond the product’s announced end-of-life date.
o FortiSwitch-5000 series is covered under the standard 1-year hardware warranty.
Extended Warranty Options:
IP Trading offers extended warranty solutions and ongoing FortiCare support services for Fortinet hardware. Contact our team to customise a support package that matches your operational needs.
https://www.fortinet.com/content/dam/fortinet/assets/legal/EULA.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 24x 10/100/1000BASE-T ports with PoE/PoE+
- 2x 1G SFP ports
- 4x 10G/1G SFP+ ports
- Layer 2 Ethernet switching
- Fanless design
- In-built AC power supply
- Operating temperature -10 to 50 degrees Celsius (temperature-strengthened model)

FAQs

Q: How many PoE ports does the FS-AX2340S-24PH4X provide?
A: It provides 24x 10/100/1000BASE-T ports that support PoE/PoE+.

Q: What uplink options are available?
A: There are 2x 1G SFP ports and 4x 10G/1G SFP+ ports for fibre or direct attach uplinks.

Q: Does this switch have a fan?
A: No. It is a fanless design, which allows silent operation.

Q: Does it need an external power supply?
A: No. It has an in-built AC power supply.

Q: What operating temperature range does it support?
A: This temperature-strengthened model operates from -10 to 50 degrees Celsius.

Q: Is this a Layer 2 or Layer 3 switch?
A: It is a Layer 2 Ethernet switch.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
