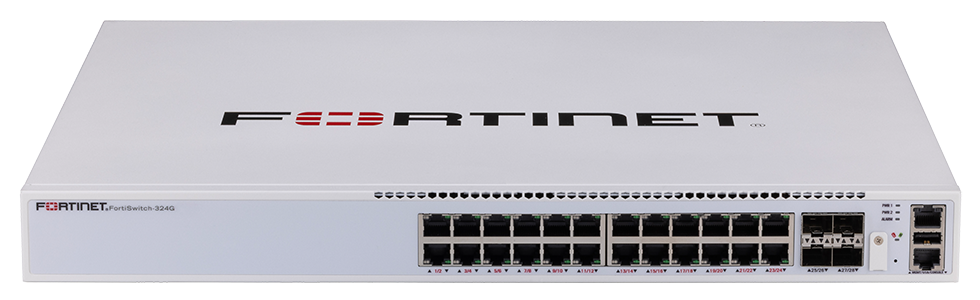

• White fortinet fortiswitch-3246 24-port 2.5g non-poe switch with 4x 10g sfp+ ports and sleek professional design
1 1

Fortinet

Fortinet FS-324G | FortiSwitch 324G 24-Port 2.5GE Switch, 4x 10G SFP+, MACsec

Fortinet FS-324G | FortiSwitch 324G 24-Port 2.5GE Switch, 4x 10G SFP+, MACsec

Authorised Fortinet Partner

FS-324G

Stock Status: Enquire

$2,334.15 inc. GST
$2,121.95 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The FortiSwitch 324G is a Layer 2/3 managed access switch with 24 multi-gigabit 2.5GE RJ45 ports and 4 x 10GE SFP+ uplinks, in a non-PoE configuration. It is managed through a FortiGate via FortiLink, making it a good fit for secure access deployments where network and security policy are controlled from a single point. MACsec (IEEE 802.1AE) link-layer encryption protects data integrity and confidentiality between devices.

The 2.5GE access ports suit next-generation Wi-Fi access points and other multi-gigabit endpoints, while the SFP+ uplinks also accept 1GE SFP transceivers for flexible aggregation and core connectivity. A dedicated management port and RJ-45 console port are provided, and the 1 RU chassis mounts in a standard rack.

Features

- Multi-gigabit 2.5GE access ports suited to next-generation Wi-Fi access points
- 4 x 10GE SFP+ uplinks that also accept 1GE SFP transceivers
- MACsec (IEEE 802.1AE) encryption for data integrity and confidentiality
- Layer 2/3 switching managed through a FortiGate via FortiLink
- Dedicated management port and RJ-45 console port

Warranty

Fortinet provides robust warranty coverage for its hardware and software products, with durations and terms based on product category:
• Hardware Warranty: All Fortinet hardware products come with a 1-year (365 days) limited warranty from the Warranty Start Date, covering material defects in workmanship when compared to the published Functional Specifications.
• Software Warranty: Fortinet software is warranted for 90 days from the Warranty Start Date. An exception is FortiToken, which carries a 1-year warranty.
• Limited Lifetime Warranty Products:
Some products are covered by extended terms:
o FortiAP and FortiSwitch (excluding FortiSwitch-5000 series) include a limited lifetime warranty valid for 5 years beyond the product’s announced end-of-life date.
o FortiSwitch-5000 series is covered under the standard 1-year hardware warranty.
Extended Warranty Options:
IP Trading offers extended warranty solutions and ongoing FortiCare support services for Fortinet hardware. Contact our team to customise a support package that matches your operational needs.
https://www.fortinet.com/content/dam/fortinet/assets/legal/EULA.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 24 x 2.5G/1G/100M/10M RJ45 ports
- 4 x 10G/1G SFP+/SFP uplinks
- MACsec (IEEE 802.1AE) encryption
- No PoE
- Switching capacity: 200 Gbps (duplex)
- Forwarding rate: 297 Mpps (duplex)
- MAC address storage: 32 k
- Packet buffers: 3 MB
- Memory: 2GB DDR4, Flash: 16MB SPI NOR, Drive: 8GB eMMC
- 1 x 10/100 dedicated management port, 1 x RJ-45 serial console port
- Form factor: 1 RU rack mount
- Dimensions (H x D x W): 1.73 x 10.23 x 17.32 in
- Weight: 8.8 lbs (4 kg)
- Power: 100-240V AC, 50-60 Hz, 59.37 W maximum
- Operating temperature: 0 to 45 C (33 to 113 F)

FAQs

Q: Does the FortiSwitch 324G support PoE?
A: No. This is a non-PoE model, so connected devices such as access points need a separate power source or a PoE injector.

Q: How is the FortiSwitch 324G managed?
A: It is managed through a FortiGate using FortiLink, which lets you configure and monitor the switch from the firewall. It also has a dedicated management port and an RJ-45 console port.

Q: What speeds do the access ports support?
A: The 24 RJ45 ports support 2.5G, 1G, 100M and 10M, making them suited to multi-gigabit Wi-Fi access points and standard endpoints.

Q: Can the SFP+ uplink ports take 1G optics?
A: Yes. The four SFP+ ports run at 10G and also accept 1G SFP transceivers.

Q: Does this switch support MACsec encryption?
A: Yes. It supports MACsec (IEEE 802.1AE) link-layer encryption for data integrity and confidentiality.

Q: What is the switching capacity and form factor?
A: The switch provides 200 Gbps duplex switching capacity and 297 Mpps forwarding rate in a 1 RU rack-mount chassis.
