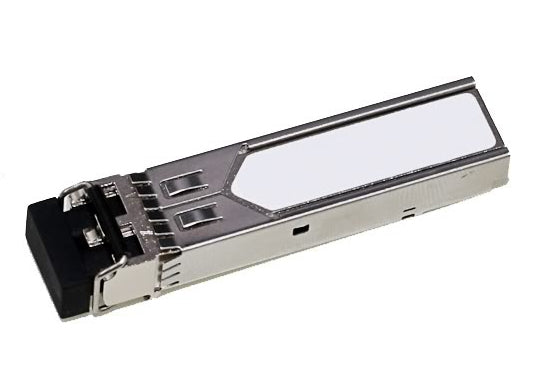

• Fortinet FR-TRAN-ZX silver SFP+ transceiver module with black connector
1 1

Fortinet

Fortinet FR-TRAN-ZX | 1G SFP Transceiver, Single-Mode, 90km, 1550nm, LC

Fortinet FR-TRAN-ZX | 1G SFP Transceiver, Single-Mode, 90km, 1550nm, LC

Authorised Fortinet Partner

FR-TRAN-ZX

Stock Status: Enquire

$1,174.70 inc. GST
$1,067.91 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Fortinet FR-TRAN-ZX is a 1G SFP transceiver for long-haul single-mode fibre links of up to 90km. It operates at 1550nm over a duplex LC connector and is rated for -40°C to 85°C, making it suited to extended-reach and harsh-environment deployments where standard optics fall short.

This 1000Base-ZX class module delivers a 1.25 Gbps data rate and supports digital diagnostics monitoring. It is designed for Fortinet systems with SFP slots, and is RoHS compliant.

Features

- Long-range 90 km single-mode reach for 1 GE links
- Extended industrial temperature operation from -40°C to 85°C
- Compatible with Fortinet systems that have SFP slots
- Digital diagnostics monitoring for link health visibility

Warranty

Fortinet provides robust warranty coverage for its hardware and software products, with durations and terms based on product category:
• Hardware Warranty: All Fortinet hardware products come with a 1-year (365 days) limited warranty from the Warranty Start Date, covering material defects in workmanship when compared to the published Functional Specifications.
• Software Warranty: Fortinet software is warranted for 90 days from the Warranty Start Date. An exception is FortiToken, which carries a 1-year warranty.
• Limited Lifetime Warranty Products:
Some products are covered by extended terms:
o FortiAP and FortiSwitch (excluding FortiSwitch-5000 series) include a limited lifetime warranty valid for 5 years beyond the product’s announced end-of-life date.
o FortiSwitch-5000 series is covered under the standard 1-year hardware warranty.
Extended Warranty Options:
IP Trading offers extended warranty solutions and ongoing FortiCare support services for Fortinet hardware. Contact our team to customise a support package that matches your operational needs.
https://www.fortinet.com/content/dam/fortinet/assets/legal/EULA.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Form factor: SFP (1 GE)
- Protocol: 1000Base-LX/ZX class (IEEE 802.3z)
- Data rate: 1.25 Gbps
- Transmission distance: up to 90 km
- Media: single-mode fibre (SMF)
- Wavelength: 1550 nm
- Connector: duplex LC
- Operating temperature: -40°C to 85°C
- Digital monitoring supported
- Compliance: RoHS

FAQs

Q: What is the maximum distance of the FR-TRAN-ZX?
A: It supports single-mode fibre links of up to 90 km at 1550nm using a duplex LC connector.

Q: What type of fibre does this transceiver require?
A: It requires single-mode fibre (SMF) with duplex LC connectors.

Q: What operating temperature range does it support?
A: The module is rated for -40°C to 85°C, suiting extended temperature and industrial environments.

Q: Which systems is the FR-TRAN-ZX compatible with?
A: It is designed for Fortinet systems that have SFP slots.

Q: What data rate does this module provide?
A: It provides 1 GE operation at a 1.25 Gbps data rate, in line with IEEE 802.3z.

Q: Does it support digital diagnostics monitoring?
A: Yes, the module supports digital monitoring so link conditions can be checked.
