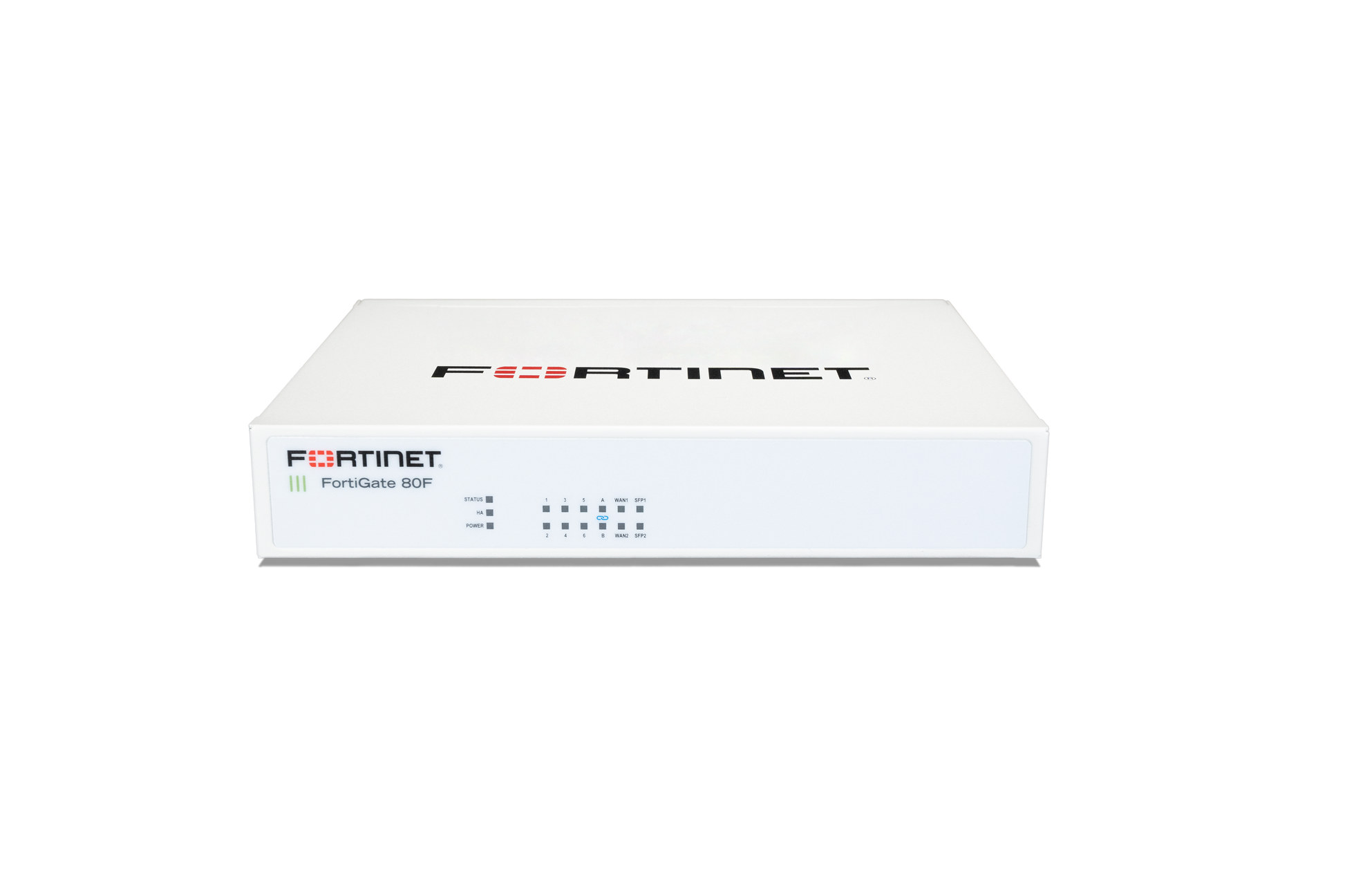

• White Fortinet FortiGate 80F security appliance with front panel lights
1 1

Fortinet

Fortinet FG-80F-USG | 80F-USG TAA Next-Gen Firewall, 8x GE RJ45, 2x SFP/RJ45 WAN

Fortinet FG-80F-USG | 80F-USG TAA Next-Gen Firewall, 8x GE RJ45, 2x SFP/RJ45 WAN

Authorised Fortinet Partner

FG-80F-USG

Stock Status: Enquire

$2,781.85 inc. GST
$2,528.95 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The FortiGate 80F-USG is a TAA-compliant next-generation firewall and SD-WAN appliance in a compact, fanless desktop format, built for small and distributed enterprise sites. It provides 8 x GE RJ45 ports and 2 x shared-media RJ45/SFP WAN ports, with 10 Gbps of firewall throughput (1518 byte UDP) and 6.5 Gbps of IPsec VPN throughput.

Integrated IPS, application control and SSL inspection let one appliance cover threat protection, VPN and SD-WAN at the branch. It also acts as a wireless controller and can manage up to 16 FortiSwitches and 96 FortiAPs, with Active/Active, Active/Passive and clustering high availability for resilient deployments.

Features

- Fanless, compact desktop design for quiet branch and office deployment
- Fortinet security-driven networking with SD-WAN capabilities
- Next-generation firewall with IPS, application control and SSL inspection
- IPsec and SSL VPN support for site-to-site and remote access
- Integrated wireless controller with FortiSwitch and FortiAP management
- Active/Active, Active/Passive and clustering high availability
- TAA-compliant USG variant for government procurement requirements

Warranty

Fortinet provides robust warranty coverage for its hardware and software products, with durations and terms based on product category:
• Hardware Warranty: All Fortinet hardware products come with a 1-year (365 days) limited warranty from the Warranty Start Date, covering material defects in workmanship when compared to the published Functional Specifications.
• Software Warranty: Fortinet software is warranted for 90 days from the Warranty Start Date. An exception is FortiToken, which carries a 1-year warranty.
• Limited Lifetime Warranty Products:
Some products are covered by extended terms:
o FortiAP and FortiSwitch (excluding FortiSwitch-5000 series) include a limited lifetime warranty valid for 5 years beyond the product’s announced end-of-life date.
o FortiSwitch-5000 series is covered under the standard 1-year hardware warranty.
Extended Warranty Options:
IP Trading offers extended warranty solutions and ongoing FortiCare support services for Fortinet hardware. Contact our team to customise a support package that matches your operational needs.
https://www.fortinet.com/content/dam/fortinet/assets/legal/EULA.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 8 x GE RJ45 ports
- 2 x RJ45/SFP shared media WAN ports
- Firewall throughput: 10 / 10 / 7 Gbps (1518 / 512 / 64 byte UDP)
- Firewall latency (64 byte UDP): 3.23 μs
- Firewall throughput: 10.5 Mpps
- Concurrent sessions (TCP): 1.5 million
- New sessions per second (TCP): 45,000
- Firewall policies: 5,000
- IPsec VPN throughput (512 byte): 6.5 Gbps
- Gateway-to-gateway IPsec VPN tunnels: 200
- Client-to-gateway IPsec VPN tunnels: 2,500
- SSL-VPN throughput: 950 Mbps
- Concurrent SSL-VPN users (recommended maximum, tunnel mode): 200
- SSL inspection throughput (IPS, avg. HTTPS): 715 Mbps
- Application control throughput (HTTP 64K): 1.8 Gbps
- CAPWAP throughput (HTTP 64K): 9 Gbps
- Virtual domains (default / maximum): 10 / 10
- Maximum FortiSwitches supported: 16
- Maximum FortiAPs (total / tunnel mode): 96 / 48
- Maximum FortiTokens: 500
- Dimensions (H x W x L): 38.5 x 216 x 160 mm
- Weight: 2.4 kg
- Power input: 12Vdc, 3A (dual redundancy optional)
- Operating temperature: 0 to 40 C
- Humidity: 10-90% non-condensing
- Noise level: fanless, 0 dBA
- TAA compliant

FAQs

Q: What does the USG in FG-80F-USG mean?
A: USG denotes the TAA-compliant version of the FortiGate 80F, intended for procurement where Trade Agreements Act compliance is required.

Q: What WAN and LAN ports does the FG-80F-USG have?
A: It has 8 x GE RJ45 ports plus 2 x shared-media RJ45/SFP WAN ports, so each WAN port can run over copper or an SFP module.

Q: What firewall and VPN throughput can it deliver?
A: Firewall throughput is 10 / 10 / 7 Gbps (1518 / 512 / 64 byte UDP), IPsec VPN throughput is 6.5 Gbps and SSL-VPN throughput is 950 Mbps.

Q: Is the FG-80F-USG fanless?
A: Yes. It uses a fanless desktop chassis with a 0 dBA noise level, suited to offices and branch sites with no dedicated comms room.

Q: Can it manage FortiSwitches and FortiAPs?
A: Yes. It includes an integrated wireless controller and supports up to 16 FortiSwitches and 96 FortiAPs (48 in tunnel mode).

Q: Does it support high availability?
A: Yes. It supports Active/Active, Active/Passive and clustering high availability configurations.
