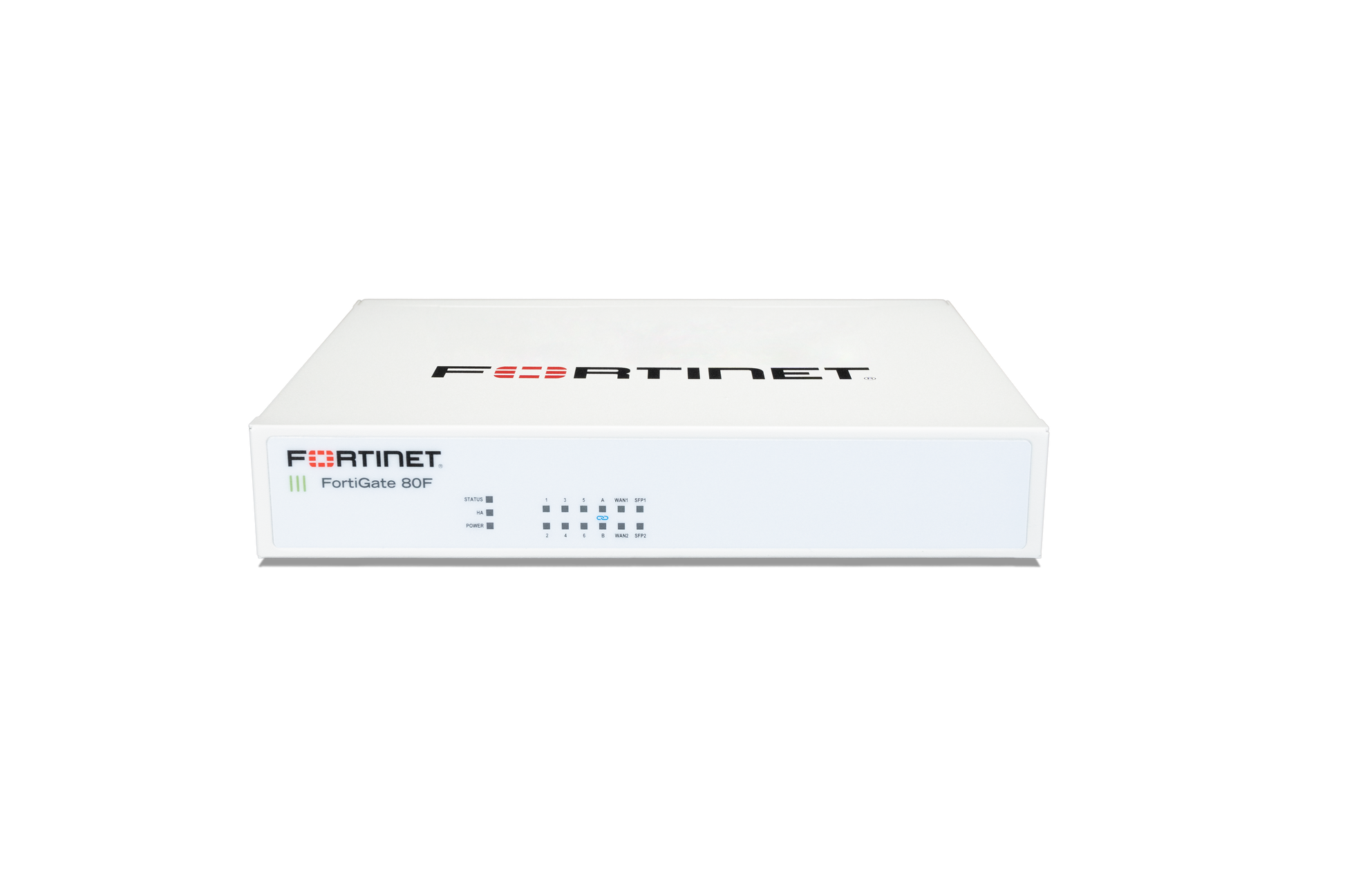

• White Fortinet FortiGate 80F-DSL-HA security appliance front view
1 1

Fortinet

Fortinet FG-80F-DSL-HA | Desktop Next-Gen Firewall, 1 Gbps NGFW, Embedded DSL, HA Pair

Fortinet FG-80F-DSL-HA | Desktop Next-Gen Firewall, 1 Gbps NGFW, Embedded DSL, HA Pair

Authorised Fortinet Partner

FG-80F-DSL-HA

Stock Status: Enquire

$2,842.46 inc. GST
$2,584.05 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

This desktop next-generation firewall and SD-WAN appliance suits distributed enterprise sites that need DSL connectivity without a separate modem. It combines 8 x GE RJ45 ports, 2 x shared RJ45/SFP WAN ports and an embedded DSL module (RJ11, VDSL2/ADSL2+), delivering 1 Gbps NGFW throughput, 1.4 Gbps IPS throughput and 6.5 Gbps IPsec VPN throughput. This is the HA pair SKU, which must be bought in pairs so both units share a single service contract (Enterprise, UTP and ATP bundles only).

Running FortiOS with Fortinet SoC processors and AI/ML-powered FortiGuard security services, it converges firewalling, SD-WAN and ZTNA enforcement in a fanless, silent chassis that can be desktop, wall or rack-tray mounted. It supports Active-Active and Active-Passive high availability, up to 16 managed FortiSwitches and up to 96 FortiAPs, and integrates into the wider Fortinet Security Fabric.

Features

- Converged NGFW and SD-WAN with integrated ZTNA enforcement on one OS (FortiOS)
- Embedded DSL modem for direct DSL WAN connectivity
- Fortinet SoC processors for high performance
- AI/ML-powered FortiGuard security services
- Integrated Security Fabric with centralised management, automation and analytics
- Fanless, silent desktop, wall-mount or rack-tray design
- Active-Active and Active-Passive HA, with the HA pair sharing a single service contract

Warranty

Fortinet provides robust warranty coverage for its hardware and software products, with durations and terms based on product category:
• Hardware Warranty: All Fortinet hardware products come with a 1-year (365 days) limited warranty from the Warranty Start Date, covering material defects in workmanship when compared to the published Functional Specifications.
• Software Warranty: Fortinet software is warranted for 90 days from the Warranty Start Date. An exception is FortiToken, which carries a 1-year warranty.
• Limited Lifetime Warranty Products:
Some products are covered by extended terms:
o FortiAP and FortiSwitch (excluding FortiSwitch-5000 series) include a limited lifetime warranty valid for 5 years beyond the product’s announced end-of-life date.
o FortiSwitch-5000 series is covered under the standard 1-year hardware warranty.
Extended Warranty Options:
IP Trading offers extended warranty solutions and ongoing FortiCare support services for Fortinet hardware. Contact our team to customise a support package that matches your operational needs.
https://www.fortinet.com/content/dam/fortinet/assets/legal/EULA.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 8 x GE RJ45 ports (6 internal + 2 FortiLink)
- 2 x GE RJ45/SFP shared media WAN ports
- 1 x embedded DSL port (RJ11, VDSL2/ADSL2+)
- 1 x USB 3.0 port and 1 x RJ45 console port
- IPS throughput: 1.4 Gbps
- NGFW throughput: 1 Gbps
- Threat Protection throughput: 900 Mbps
- IPv4 firewall throughput: 10 / 10 / 7 Gbps (1518/512/64 byte UDP)
- IPsec VPN throughput: 6.5 Gbps
- SSL-VPN throughput: 950 Mbps
- Concurrent sessions: 1.5 million
- New sessions per second: 45,000
- Supports up to 16 FortiSwitches and 96 FortiAPs
- Trusted Platform Module (TPM) and Bluetooth Low Energy (BLE)
- Fanless, desktop / wall mount / rack tray, 40 x 216 x 178 mm, 1.1 kg
- Input 12V DC, average power consumption 12.69 W

FAQs

Q: Why does the FG-80F-DSL-HA need to be bought in pairs?
A: FG-XX-HA SKUs are sold in pairs so that the two units form an HA pair that shares a single service contract. This applies to Enterprise, UTP and ATP bundles only.

Q: Does this firewall include a DSL modem?
A: Yes. It has an embedded DSL module with an RJ11 port supporting VDSL2/ADSL2+, so no separate modem is needed for DSL WAN links.

Q: What WAN ports does it provide?
A: It has 2 x GE RJ45/SFP shared media ports for WAN use, in addition to the embedded DSL port.

Q: What high availability modes are supported?
A: Active-Active, Active-Passive and clustering configurations are supported.

Q: How can it be mounted?
A: It is a fanless unit designed for desktop, wall mount or rack tray installation.

Q: How many FortiSwitches and FortiAPs can it manage?
A: It can manage up to 16 FortiSwitches and up to 96 FortiAPs (48 in tunnel mode).
