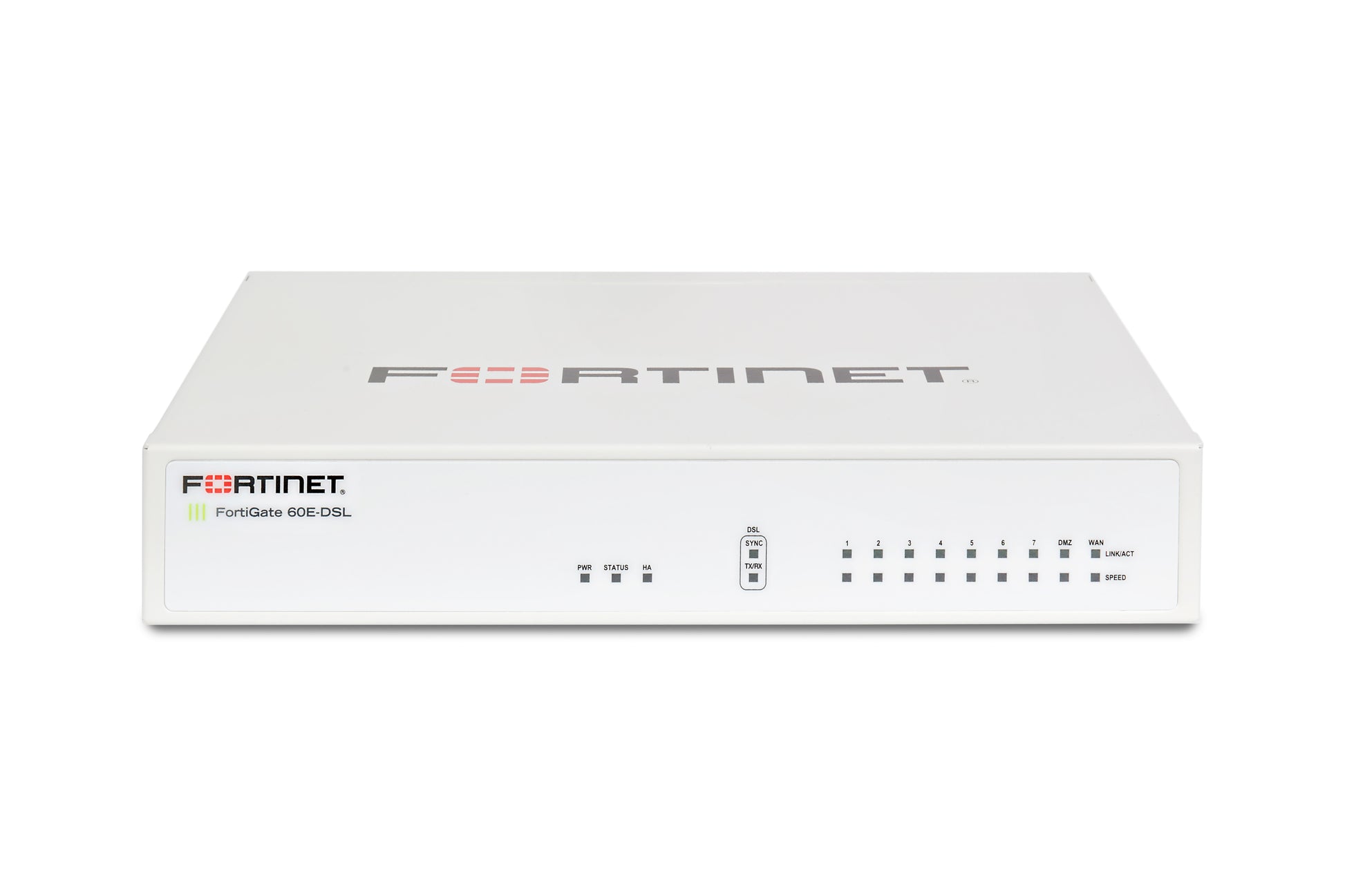

• White Fortinet FortiGate 60E-DSL with 9 GE RJ45 ports and DSL modem

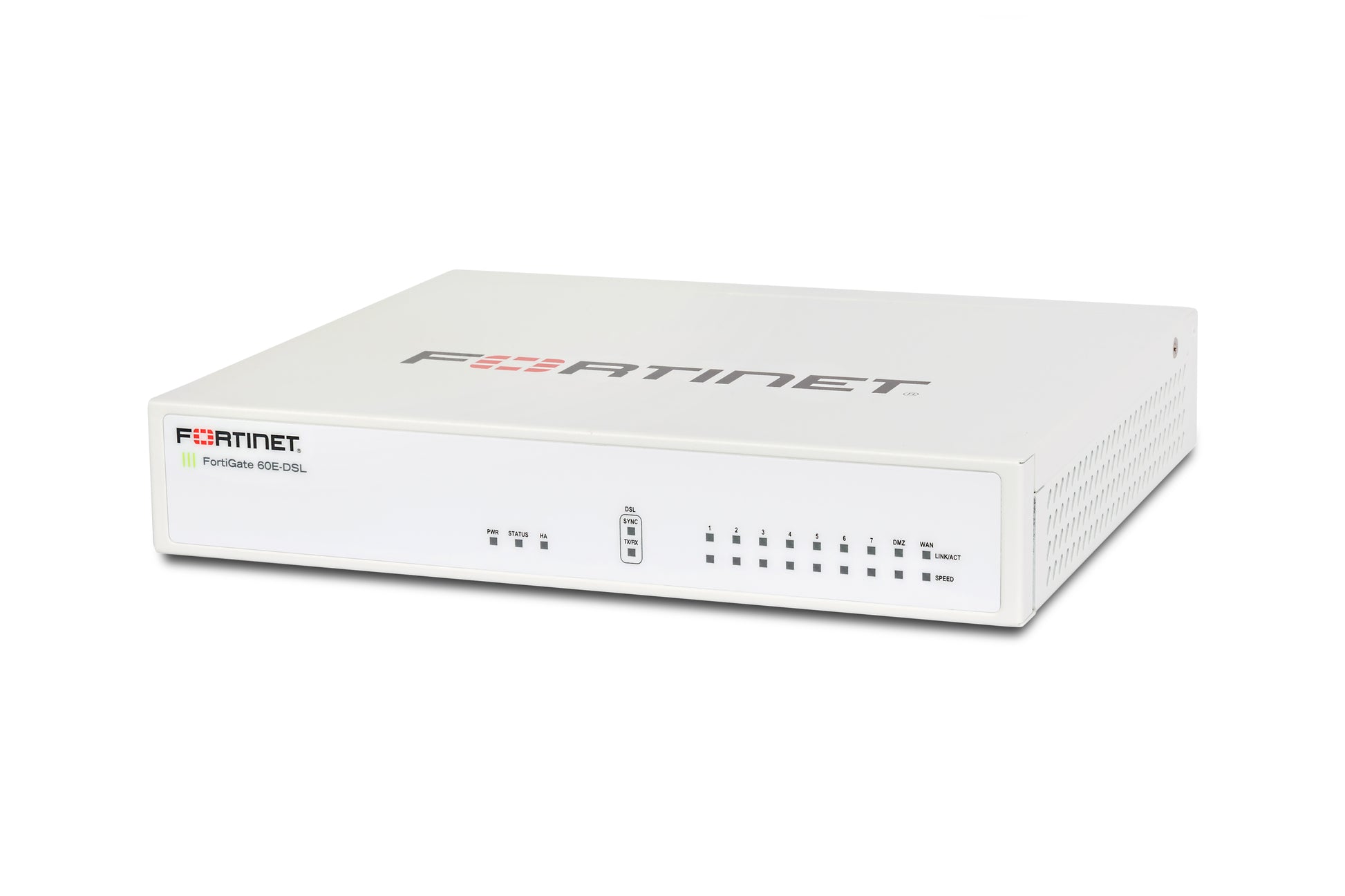

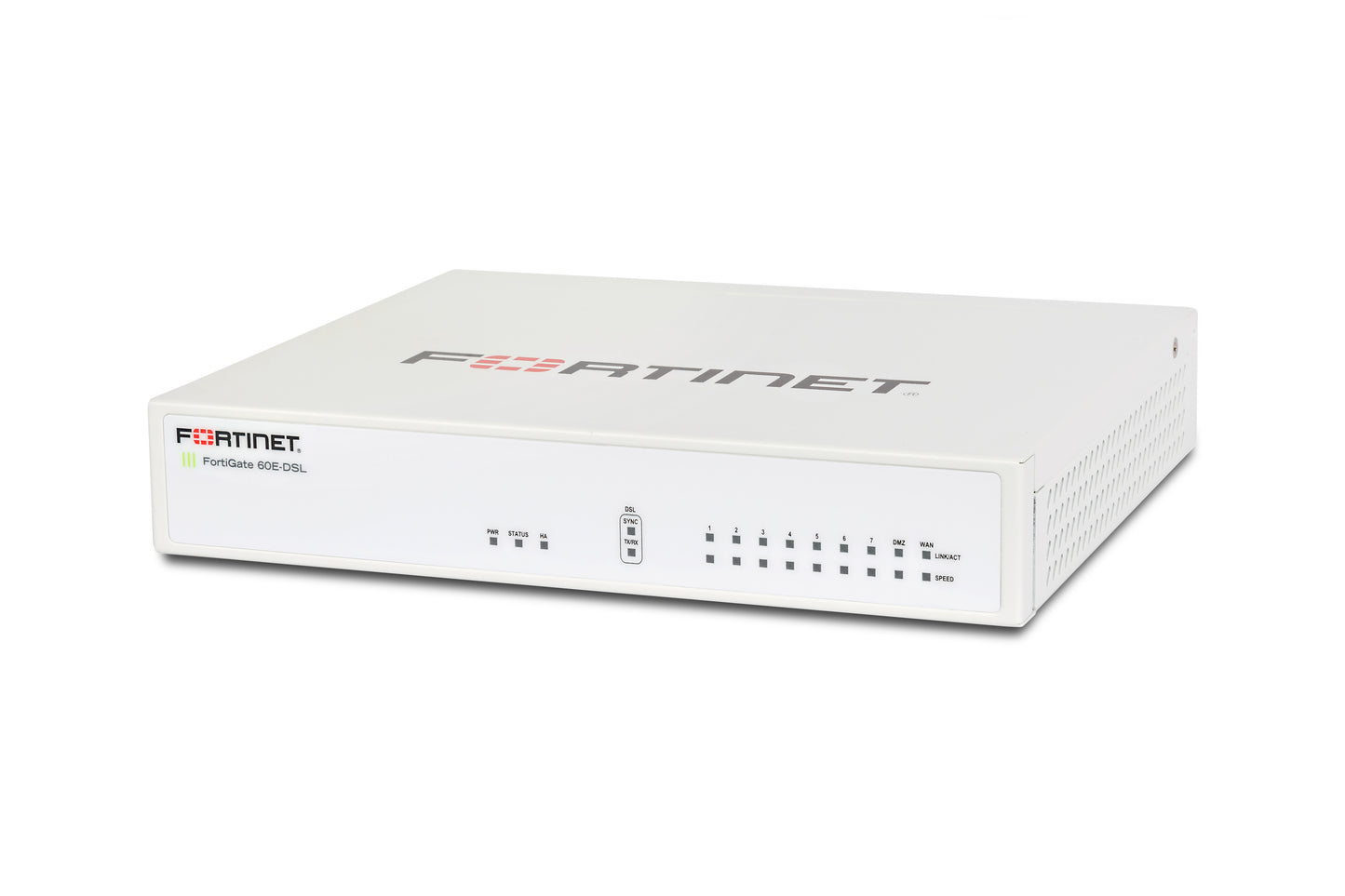

  • White Fortinet FG-60E-DSL security appliance with 9 GE RJ45 ports
1 2

Fortinet

Fortinet FG-60E-DSL | Next-Gen Firewall, 9x GE RJ45, ADSL2+/VDSL2 Modem

Fortinet FG-60E-DSL | Next-Gen Firewall, 9x GE RJ45, ADSL2+/VDSL2 Modem

Authorised Fortinet Partner

FG-60E-DSL

Stock Status: Enquire

$1,752.33 inc. GST
$1,593.03 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Fortinet FortiGate 60E-DSL is a compact desktop next-generation firewall for enterprise branch offices and mid-sized businesses, with an internal ADSL2/2+ and VDSL2 (Annex A/M) modem built in. As a wired FortiGate with no Wi-Fi, it provides 9 x GE RJ45 ports (7 internal, 1 WAN, 1 DMZ) and delivers 3 Gbps of firewall throughput and 2 Gbps of IPsec VPN throughput.

Powered by Fortinet's SPU SoC3 security processor, the FG-60E-DSL combines secure SD-WAN, UTM, routing and VPN in a single appliance, supporting up to 1.3 million concurrent sessions. It integrates with the Fortinet Security Fabric, includes a built-in wireless controller for managing FortiAP access points, and supports 3G/4G failover through third-party USB modems or FortiExtender.

Features

- Purpose-built SPU SoC3 processor combining a RISC-based CPU with Fortinet security and network processors
- Firewall acceleration across all packet sizes with ultra-low latency
- Built-in ADSL2/2+ and VDSL2 modem removes the need for a separate DSL modem
- 3G/4G support via third-party USB modems or FortiExtender for redundant WAN links
- Secure SD-WAN and UTM deployment options
- FortiGuard Labs threat intelligence for protection against known and unknown threats
- Integrated wireless controller, switching, routing and IPsec VPN
- Fortinet Security Fabric integration
- Compact desktop or wall-mount design
- Independent certifications including ICSA Labs for firewall, IPsec, IPS, antivirus and SSL-VPN
- Single-pane-of-glass management with NOC view and compliance checklist

Warranty

Fortinet provides robust warranty coverage for its hardware and software products, with durations and terms based on product category:
• Hardware Warranty: All Fortinet hardware products come with a 1-year (365 days) limited warranty from the Warranty Start Date, covering material defects in workmanship when compared to the published Functional Specifications.
• Software Warranty: Fortinet software is warranted for 90 days from the Warranty Start Date. An exception is FortiToken, which carries a 1-year warranty.
• Limited Lifetime Warranty Products:
Some products are covered by extended terms:
o FortiAP and FortiSwitch (excluding FortiSwitch-5000 series) include a limited lifetime warranty valid for 5 years beyond the product’s announced end-of-life date.
o FortiSwitch-5000 series is covered under the standard 1-year hardware warranty.
Extended Warranty Options:
IP Trading offers extended warranty solutions and ongoing FortiCare support services for Fortinet hardware. Contact our team to customise a support package that matches your operational needs.
https://www.fortinet.com/content/dam/fortinet/assets/legal/EULA.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 9 x GE RJ45 ports: 7 internal, 1 WAN, 1 DMZ
- Internal ADSL2/2+ and VDSL2 modem (Annex A/M)
- 1 x USB port, 1 x RJ45 console port
- Firewall throughput: 3 Gbps (1518/512/64 byte UDP)
- Firewall latency: 3 μs (64 byte UDP)
- Firewall throughput: 4.5 Mpps
- IPS throughput: 400 Mbps (enterprise traffic mix)
- NGFW throughput: 250 Mbps (enterprise traffic mix)
- Threat protection throughput: 200 Mbps (enterprise traffic mix)
- IPsec VPN throughput: 2 Gbps (512 byte)
- SSL-VPN throughput: 150 Mbps
- SSL inspection throughput: 175 Mbps (IPS, HTTP)
- Application control throughput: 650 Mbps (HTTP 64K)
- Concurrent sessions: 1.3 million (TCP)
- New sessions per second: 30,000 (TCP)
- Firewall policies: 5,000
- Gateway-to-gateway IPsec VPN tunnels: 200
- Client-to-gateway IPsec VPN tunnels: 500
- Virtual domains: 10 default / 10 maximum
- Maximum FortiAPs: 30 total / 10 in tunnel mode
- High availability: Active/Active, Active/Passive, Clustering
- No internal storage
- Desktop form factor, 42.5 x 215 x 180 mm, 0.9 kg
- Power: 100-240V AC, 50-60 Hz, 11.7 W average / 14 W maximum
- Operating temperature: 0-40°C, humidity 10-90% non-condensing
- Compliance: FCC Part 15 Class B, C-Tick, VCCI, CE, UL/cUL, CB

FAQs

Q: Does the FG-60E-DSL include Wi-Fi?
A: No. The FG-60E-DSL is a wired FortiGate with no built-in Wi-Fi. It does include an integrated wireless controller, so it can manage FortiAP access points (up to 30 in total, 10 in tunnel mode).

Q: Which DSL standards does the internal modem support?
A: The internal modem supports ADSL Annex A, ADSL2 Annex A/L/M, ADSL2+ Annex A/M, and VDSL2 (G.993.2) profiles 8a to 17a, along with VDSL1 (G.993.1), G.993.5 and G.998.4.

Q: What WAN redundancy options are available?
A: Alongside the built-in DSL modem and the dedicated WAN port, the unit supports 3G/4G failover using third-party USB modems or FortiExtender, giving redundant WAN links for branch sites.

Q: What are the main throughput figures?
A: Firewall throughput is 3 Gbps, IPsec VPN throughput is 2 Gbps, IPS throughput is 400 Mbps, NGFW throughput is 250 Mbps and threat protection throughput is 200 Mbps, with the last three measured on an enterprise traffic mix.

Q: How are the 9 Ethernet ports allocated?
A: The 9 x GE RJ45 ports are split into 7 internal ports, 1 WAN port and 1 DMZ port. There is also 1 USB port and 1 RJ45 console port.

Q: Does it support high availability?
A: Yes. It supports Active/Active, Active/Passive and clustering high availability configurations, so two units can be deployed together for resilient branch connectivity.
