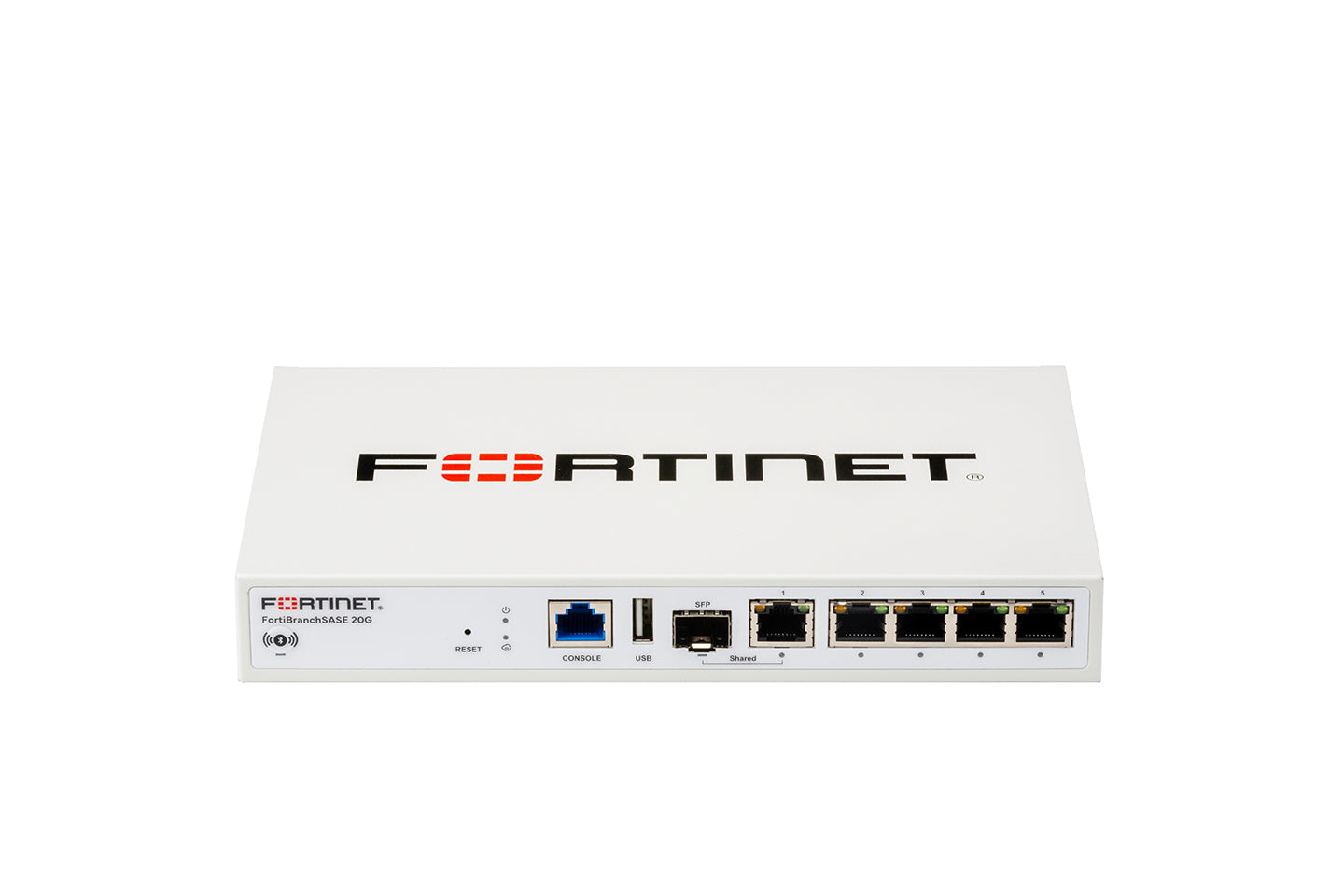

• White Fortinet FortiBranchSASE-20G FBS-20G security appliance with Ethernet ports

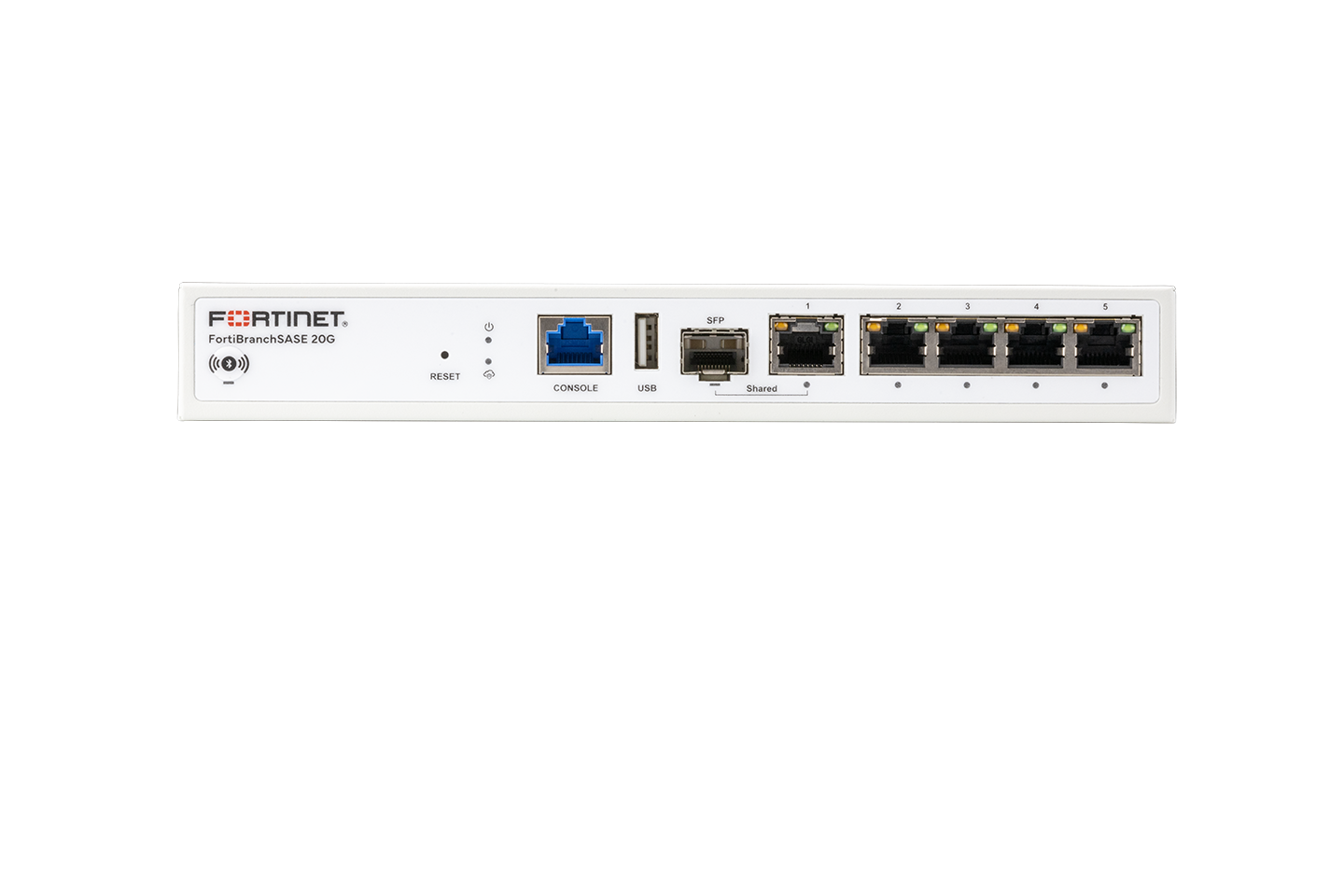

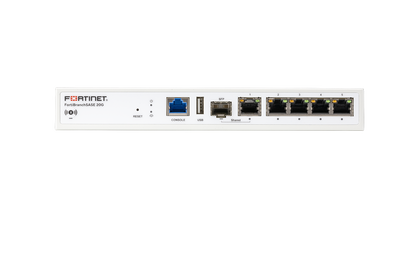

  • White Fortinet FortiBranch SASE-20G FBS-20G appliance with Ethernet and USB ports

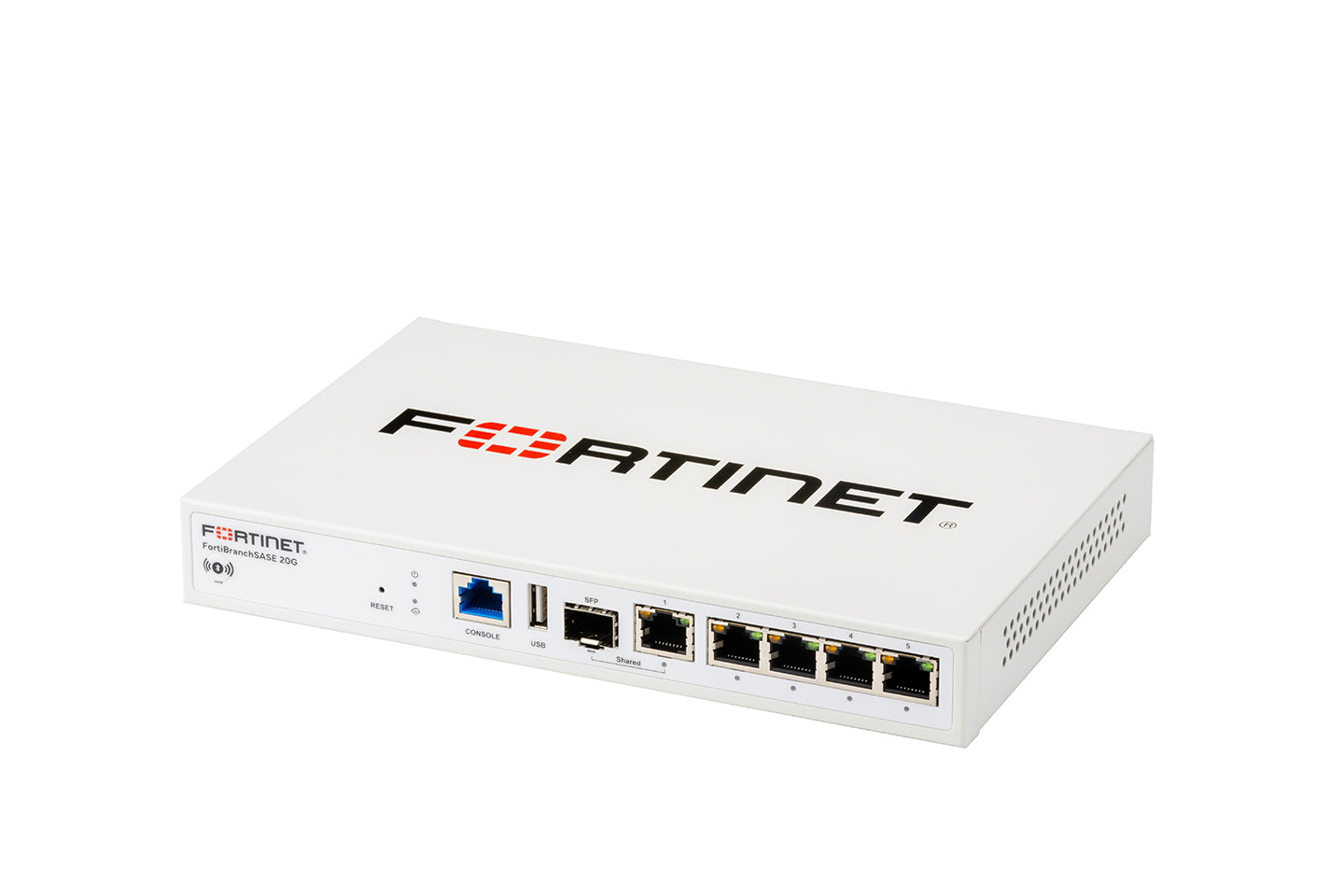

  • White Fortinet FortiGate-60E with Ethernet and USB ports, FortiBranchSASE-20G

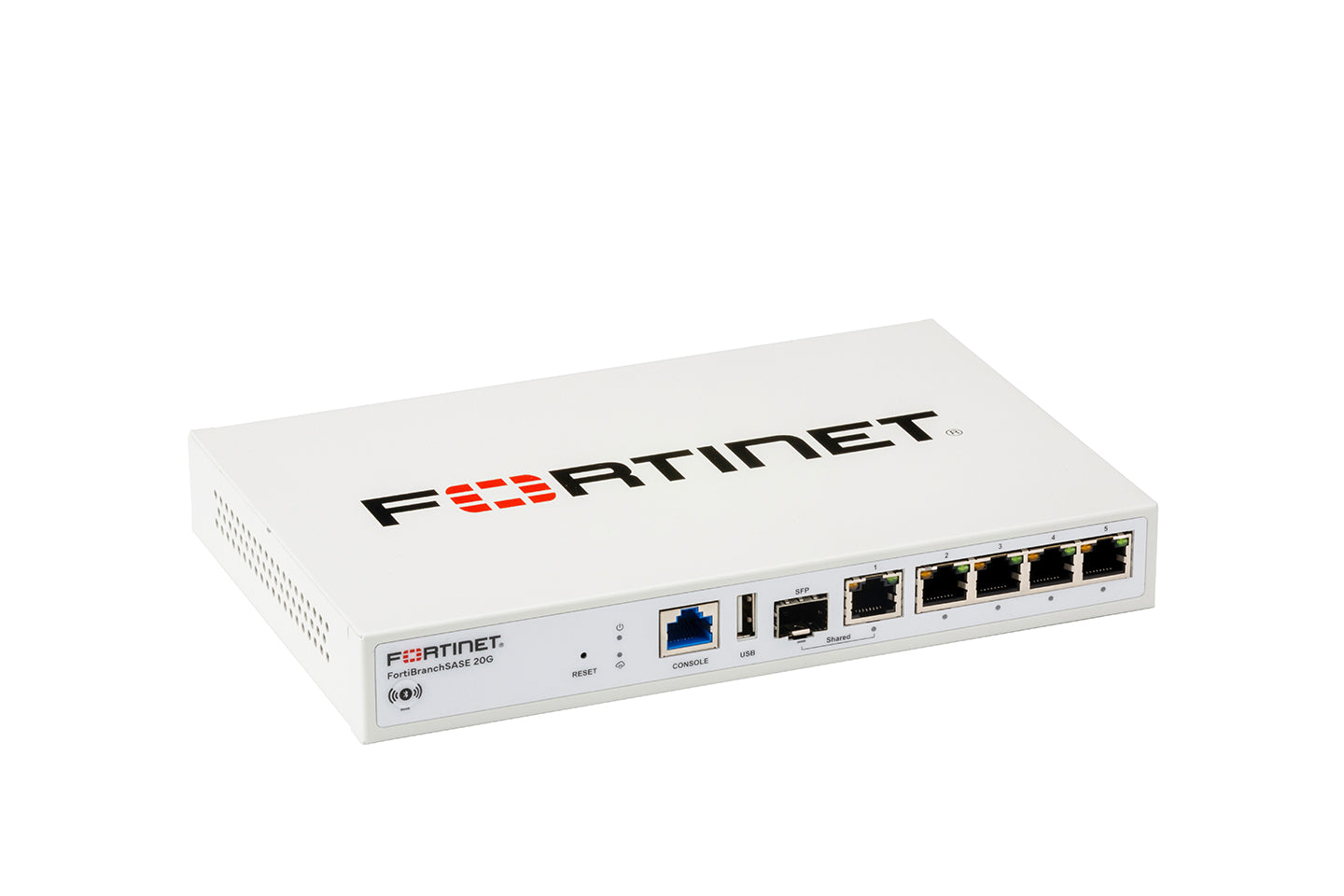

  • White Fortinet SSG-270 firewall with Ethernet ports and USB, FBS-20G model

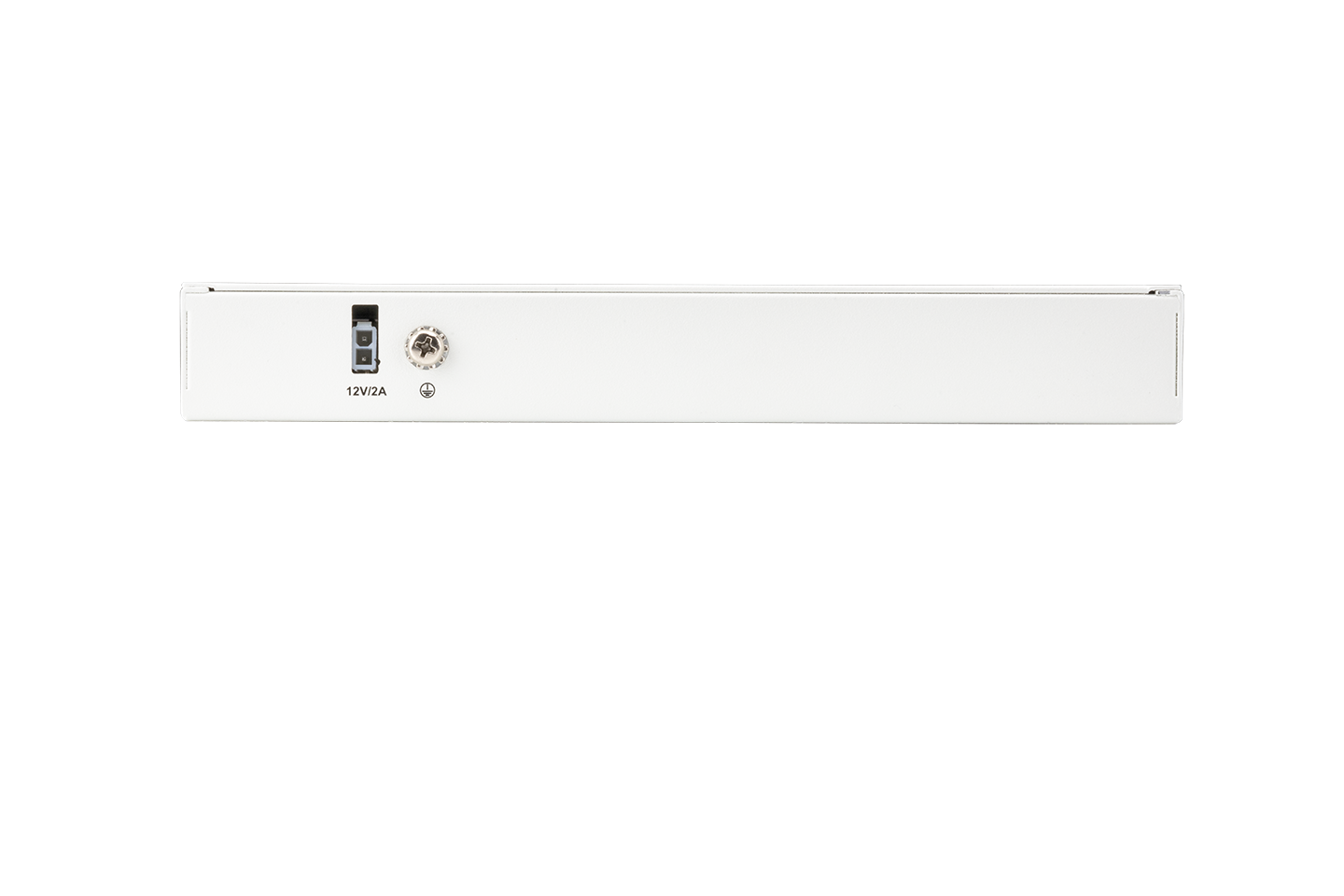

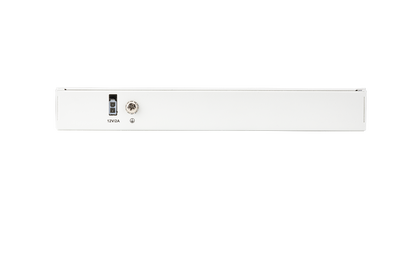

  • Rear view of Fortinet FBS-20G FortiBranchSASE-20G switch with 12V/2A power and Ethernet ports
1 5

Fortinet

Fortinet FBS-20G | FortiBranchSASE-20G SASE Extension Device, Wired, L2 Tunnel, 5-Port

Fortinet FBS-20G | FortiBranchSASE-20G SASE Extension Device, Wired, L2 Tunnel, 5-Port

Authorised Fortinet Partner

FBS-20G

Stock Status: Enquire

$680.58 inc. GST
$618.71 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The FortiBranchSASE-20G is a compact indoor SASE extension device engineered to deliver fast, secure connectivity to small and micro branch offices via L2 tunnelling from FortiSASE or a remote FortiGate. Featuring HW-accelerated IPsec VPN throughput up to 900 Mbps, it extends the Fortinet Security Fabric to thin-edge locations without requiring on-site security infrastructure. The wired-only form factor includes 1x GbE Combo (SFP/RJ45) WAN port and 4x 1GbE RJ45 configurable WAN/LAN ports, making it ideal for rapid branch deployments where simplicity and security are paramount.

As part of the FortiExtender product line, the FBS-20G integrates seamlessly with FortiOS and supports LAN-Extension mode for centralised management via FortiGate. Split-tunnel capabilities allow both secure corporate access and direct internet breakout. The desktop/wall-mount design (wall-mount kit included) suits a range of physical environments including small offices, retail sites, and temporary deployments.

Features

- Delivers secure branch connectivity via L2 tunnel to FortiSASE or remote FortiGate — no on-site security stack required
- HW-accelerated IPsec VPN providing up to 900 Mbps of secured throughput
- Part of the FortiExtender product line — extends Fortinet Security Fabric to thin-edge and micro branch locations
- Integrates natively with FortiOS; supports both FortiSASE managed mode and LAN-Extension mode via FortiGate
- Split-tunnel support for concurrent secure corporate access and direct internet breakout
- Centralised configuration and management for simplified branch network operations
- Flexible mounting: desktop placement or wall mount (kit included), suitable for any small office environment
- Bluetooth Low Energy (BLE) support via internal antenna for IoT and proximity use cases
- Wired-only design with 1x GbE Combo (SFP/RJ45) WAN and 4x 1GbE RJ45 configurable ports
- Low power consumption (avg. 10.7W) — suited for always-on, unattended branch deployments

Warranty

Fortinet provides robust warranty coverage for its hardware and software products, with durations and terms based on product category:
• Hardware Warranty: All Fortinet hardware products come with a 1-year (365 days) limited warranty from the Warranty Start Date, covering material defects in workmanship when compared to the published Functional Specifications.
• Software Warranty: Fortinet software is warranted for 90 days from the Warranty Start Date. An exception is FortiToken, which carries a 1-year warranty.
• Limited Lifetime Warranty Products:
Some products are covered by extended terms:
o FortiAP and FortiSwitch (excluding FortiSwitch-5000 series) include a limited lifetime warranty valid for 5 years beyond the product’s announced end-of-life date.
o FortiSwitch-5000 series is covered under the standard 1-year hardware warranty.
Extended Warranty Options:
IP Trading offers extended warranty solutions and ongoing FortiCare support services for Fortinet hardware. Contact our team to customise a support package that matches your operational needs.
https://www.fortinet.com/content/dam/fortinet/assets/legal/EULA.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Processor: IPQ6010 Quad Core A53, 1.8 GHz
- WAN Port: 1x GbE Combo (SFP + RJ45)
- LAN/WAN Ports: 4x 1GbE RJ45 (configurable WAN or LAN)
- Console Port: 1x RJ45
- USB: 1x USB 2.0 Type-A
- Bluetooth Low Energy (BLE): Yes (internal antenna)
- Wi-Fi: None (wired only)
- PoE: None
- IPsec VPN Throughput: Up to 900 Mbps (HW accelerated)
- Power Input: 12V / 2A (24W adapter)
- Average Power Consumption: 10.7W
- Maximum Power Consumption: 12.8W
- Dimensions (H x W x D): 228 x 148 x 31 mm
- Weight: 0.93 kg
- Operating Temperature: 0°C to 40°C
- Storage Temperature: -40°C to 70°C
- Humidity: 5% to 95% RH (non-condensing)
- Mounting: Desktop and Wall Mount (wall-mount kit included)
- Form Factor: Indoor
- Certifications: FCC Part 15B, 15C, 2.1091

FAQs

Q: What is the FortiBranchSASE-20G and how does it differ from a traditional branch firewall?
A: The FBS-20G is a SASE extension device, not a standalone firewall. Rather than running full security inspection on-site, it tunnels traffic via L2 to FortiSASE or a remote FortiGate, where all security policy enforcement occurs in the cloud or data centre. This dramatically simplifies small branch deployments — there is no complex on-site security configuration required.

Q: Does the FBS-20G include Wi-Fi capability?
A: No. The FBS-20G is a wired-only device with 5x GbE ports (1x Combo SFP/RJ45 WAN + 4x RJ45 configurable WAN/LAN). If Wi-Fi is required at the branch, a separate Fortinet access point or a different FortiBranchSASE model with wireless capability would be required.

Q: Does the FBS-20G require a FortiSASE subscription to operate?
A: The FBS-20G is designed to work as a FortiSASE extension device and is intended to be managed via FortiSASE. It also supports LAN-Extension mode managed by any FortiGate. A valid FortiSASE or FortiGate subscription/license is required for full operation — consult the IP Trading team for licensing guidance.

Q: What deployment scenarios is the FBS-20G best suited for?
A: It is ideal for micro branches, small offices, retail outlets, and temporary or pop-up office environments where deploying a full security stack is impractical. The desktop and wall-mount form factor (kit included) allows flexible installation in any small office environment.

Q: What is the IPsec VPN throughput of the FBS-20G?
A: The FBS-20G delivers up to 900 Mbps of HW-accelerated IPsec VPN throughput, providing fast and secure tunnelled connectivity to corporate resources via FortiSASE or a remote FortiGate.
