Fortinet

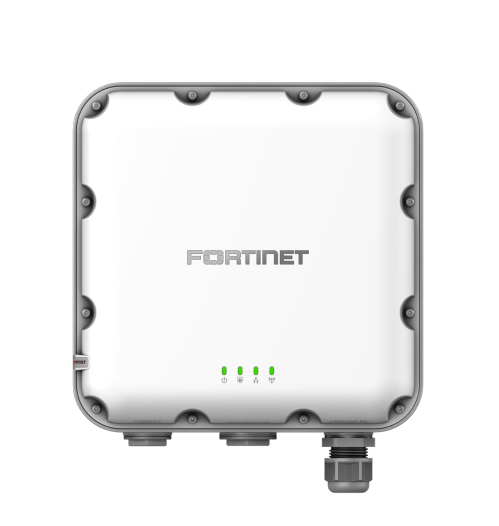

Fortinet FAP-244K-H | Wi-Fi 7 Tri-Band Outdoor Access Point, 2+2+2, 10G SFP+

Fortinet FAP-244K-H | Wi-Fi 7 Tri-Band Outdoor Access Point, 2+2+2, 10G SFP+

SKU:FAP-244K-H

Stock Status: Enquire

Regular price $0.00 AUD
Regular price
$0.00 AUD
$0.00 AUD
Regular price
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The FortiAP-244K is a Wi-Fi 7 (802.11be) outdoor quad-radio access point delivering tri-band 2.4/5/6 GHz coverage with 2x2 spatial streams per band and a dedicated 24/7 scanning radio for real-time WIDS/WIPS monitoring. Designed for outdoor environments, it features a weather-hardened enclosure with internal antennas, a 10GE SFP+ uplink to eliminate wired bottlenecks, and a 5G RJ45 port for flexible PoE-powered connectivity — making it ideal for high-density campuses, stadiums, warehouses, and secure outdoor deployments.

Fully integrated into the Fortinet Security Fabric, the FortiAP-244K is managed via FortiGate (FortiOS 7.4+) or FortiEdge Cloud for centralised, security-driven wireless management. It supports WPA3, EAP-TLS, PEAP, built-in NAC, ZTNA, and SASE — including optional FortiSASE subscription for cloud-managed zero-trust operation. Bluetooth/BLE radio adds IoT and location services capability. PoE injector and ceiling/wall mount kit are included in the box. Upgrade your network with gear from iptrading.com.au — Australia's IT hardware specialists.

Features

- Wi-Fi 7 quad-radio architecture with dedicated 2.4 GHz, 5 GHz, 6 GHz client-serving radios plus a fourth dedicated scanning radio
- 24/7 real-time WIDS/WIPS monitoring via dedicated scanning radio across all frequency bands
- 10GE SFP+ fibre uplink eliminates wired bottlenecks in high-density outdoor environments
- 5G RJ45 uplink port supports flexible PoE-powered wired connectivity
- Integrated BLE radio enables IoT device support and location-based services
- FortiGate WLAN controller and FortiEdge Cloud managed — single-pane-of-glass wired and wireless management
- Fortinet Security Fabric integration for unified policy enforcement and security visibility
- Built-in NAC functions for secure, policy-driven device onboarding
- ZTNA and SASE support for zero-trust microbranch and distributed deployments
- FortiSASE subscription available for cloud-managed operation with included bandwidth
- Enterprise wireless security: WPA3, WPA2, EAP-TLS, EAP-TTLS, PEAP
- Outdoor-hardened enclosure with internal antennas for weather-resistant performance
- Up to 8 SSIDs per client-serving radio for flexible network segmentation
- 802.3bt PoE powered — PoE injector and mount kit included in the box

Warranty

Fortinet provides robust warranty coverage for its hardware and software products, with durations and terms based on product category:
• Hardware Warranty: All Fortinet hardware products come with a 1-year (365 days) limited warranty from the Warranty Start Date, covering material defects in workmanship when compared to the published Functional Specifications.
• Software Warranty: Fortinet software is warranted for 90 days from the Warranty Start Date. An exception is FortiToken, which carries a 1-year warranty.
• Limited Lifetime Warranty Products:
Some products are covered by extended terms:
o FortiAP and FortiSwitch (excluding FortiSwitch-5000 series) include a limited lifetime warranty valid for 5 years beyond the product’s announced end-of-life date.
o FortiSwitch-5000 series is covered under the standard 1-year hardware warranty.
Extended Warranty Options:
IP Trading offers extended warranty solutions and ongoing FortiCare support services for Fortinet hardware. Contact our team to customise a support package that matches your operational needs.
https://www.fortinet.com/content/dam/fortinet/assets/legal/EULA.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Wi-Fi Standard: Wi-Fi 7 (IEEE 802.11be)
- Radio 1: 2.4 GHz, 2x2 MIMO, 20/40 MHz channel widths
- Radio 2: 5 GHz, 2x2 MIMO, 20/40/80/160/240 MHz channel widths
- Radio 3: 6 GHz, 2x2 MIMO, 20/40/80/160/320 MHz channel widths (subject to regional regulatory approval)
- Radio 4: Dedicated scanning radio (WIDS/WIPS, all bands)
- Spatial Streams: 2+2+2 (2 streams per band)
- Antennas: 7 internal antennas

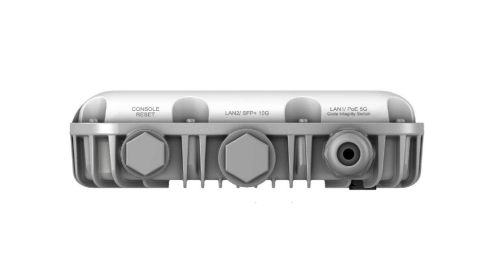

- Ethernet Port 1: 1x 10/100/1000 Base-T RJ45
- Ethernet Port 2: 1x 100/1000/2500/5000/10000 Base-T RJ45 (5G)
- Fibre Uplink: 1x 10GE SFP+ port
- Serial Interface: 1x RS-232 RJ45
- Bluetooth/BLE: Integrated BLE radio
- USB: 1x Type-A USB port
- Power: 802.3bt PoE (PoE injector included)
- Deployment: Outdoor, weather-hardened enclosure

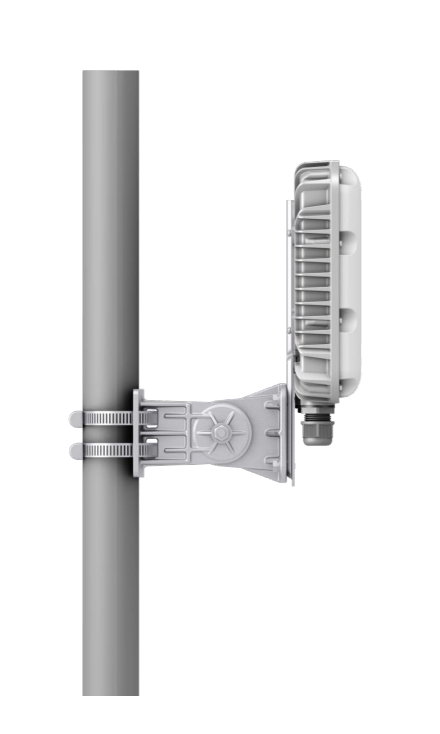

- Mounting: Ceiling/wall mount kit included; pole mount supported
- SSIDs: Up to 8 SSIDs per client-serving radio

FAQs

Q: What Wi-Fi standard does the FortiAP-244K support?
A: The FortiAP-244K supports Wi-Fi 7 (IEEE 802.11be), the latest generation of wireless standard. It operates across tri-band 2.4 GHz, 5 GHz, and 6 GHz frequencies with 2x2 spatial streams per band, and includes a fourth dedicated scanning radio — delivering superior throughput, lower latency, and real-time wireless intrusion detection.

Q: Is the 6 GHz band available in Australia?
A: 6 GHz band availability is subject to regional regulatory authority approval. In Australia, the ACMA governs 6 GHz spectrum access. Buyers should confirm current Australian regulatory status before deploying the FortiAP-244K in 6 GHz mode. The access point will operate fully on 2.4 GHz and 5 GHz bands regardless of 6 GHz regulatory status.

Q: How is the FortiAP-244K managed?
A: The FortiAP-244K can be centrally managed through a FortiGate WLAN controller running FortiOS 7.4 or later, or via the FortiEdge Cloud provisioning portal for cloud-managed deployments. It integrates into the Fortinet Security Fabric for unified wired and wireless visibility and policy management from a single pane of glass.

Q: What uplink options does the FortiAP-244K provide?
A: The FortiAP-244K offers a 10GE SFP+ fibre uplink for high-throughput wired backhaul, a 5G (5000 Base-T) RJ45 port for PoE-powered connectivity, and a standard Gigabit RJ45 port — giving network engineers flexible options to match existing cabling and bandwidth requirements in outdoor deployments.

Q: Is the FortiAP-244K suitable for outdoor and harsh environments?
A: Yes. The FortiAP-244K features an outdoor-hardened enclosure with internal antennas designed for weather-resistant deployment in locations such as campuses, warehouses, stadiums, courtyards, and transport hubs. It ships with a PoE injector and ceiling/wall mount kit, and also supports pole mounting for flexible installation.

Q: Can I purchase the FortiAP-244K in Australia through IP Trading?
A: Yes. IP Trading (iptrading.com.au) is an Australian B2B IT hardware specialist stocking Fortinet products including the FortiAP-244K. Contact the team for pricing, volume discounts, and advice on FortiSASE subscription options to pair with your access point deployment.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
