Fortinet

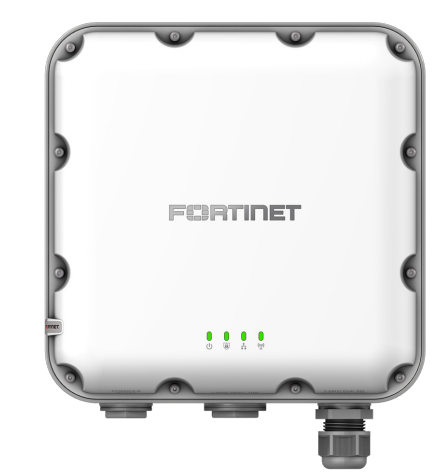

Fortinet FAP-244K-EO | Wi-Fi 7 Tri-Band Outdoor AP, 4 Radios, 5G RJ45, Oceania (EO)

Fortinet FAP-244K-EO | Wi-Fi 7 Tri-Band Outdoor AP, 4 Radios, 5G RJ45, Oceania (EO)

SKU:FAP-244K-EO

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The FortiAP-244K is an enterprise-class Wi-Fi 7 outdoor access point built for demanding environments, delivering simultaneous tri-band coverage across 2.4 GHz, 5 GHz, and 6 GHz with four radios and 2x2 MU-MIMO spatial streams. Designed for harsh outdoor deployments (rated -40°C to 70°C), it features a dedicated 4th scanning radio for 24/7 all-band threat detection without impacting client throughput, a 10G SFP+ uplink for fibre backhaul, and a 5G RJ45 PoE port — making it ideal for campuses, stadiums, logistics yards, and distributed enterprise edge sites across the Oceania region.

The FAP-244K-EO integrates natively with the Fortinet Security Fabric via FortiGate or FortiEdge Cloud for zero-touch deployment and unified wired and wireless security management, including built-in ZTNA, IPS, Application Control, and NAC. An integrated BLE radio supports locationing and IoT onboarding, while OFDMA and MU-MIMO enable high-density client performance of up to 512 clients per radio. Pole and wall mount kits plus a PoE injector (GPI-145) are included. Get it now at iptrading.com.au — authentic hardware, reliable service.

Features

- Wi-Fi 7 (802.11be) tri-band simultaneous operation across 2.4 GHz, 5 GHz, and 6 GHz for maximum throughput and spectrum flexibility
- Dedicated 4th radio provides 24/7 all-band scanning and wireless intrusion detection without reducing client-serving radio capacity
- 10G SFP+ fibre uplink eliminates wired backhaul bottlenecks for long outdoor runs and high-density deployments
- Integrated BLE radio supports IoT device provisioning, asset locationing, and Bluetooth beacon services
- Centrally managed via FortiGate integrated WLAN controller or FortiEdge Cloud with zero-touch provisioning
- Seamless Fortinet Security Fabric integration for unified wired and wireless security policy enforcement
- Built-in ZTNA and SASE foundation supports secure microbranch and distributed edge deployments
- Integrated Firewall, IPS, Application Control, and Web Filter protection applied at the wireless LAN edge
- NAC functions enable secure, policy-driven device onboarding at remote or distributed sites
- AIOps and full NOC visibility simplify network monitoring, troubleshooting, and capacity planning
- Supports PCI DSS compliance and advanced wireless threat protection for regulated industries
- RS-232 RJ45 serial console port for on-site diagnostics and legacy device management
- Ruggedized weatherproof enclosure rated -40°C to 70°C for harsh outdoor environments
- Includes articulating pole and wall mount bracket plus grounding cable for flexible, safe outdoor installation

Warranty

Fortinet provides robust warranty coverage for its hardware and software products, with durations and terms based on product category:
• Hardware Warranty: All Fortinet hardware products come with a 1-year (365 days) limited warranty from the Warranty Start Date, covering material defects in workmanship when compared to the published Functional Specifications.
• Software Warranty: Fortinet software is warranted for 90 days from the Warranty Start Date. An exception is FortiToken, which carries a 1-year warranty.
• Limited Lifetime Warranty Products:
Some products are covered by extended terms:
o FortiAP and FortiSwitch (excluding FortiSwitch-5000 series) include a limited lifetime warranty valid for 5 years beyond the product’s announced end-of-life date.
o FortiSwitch-5000 series is covered under the standard 1-year hardware warranty.
Extended Warranty Options:
IP Trading offers extended warranty solutions and ongoing FortiCare support services for Fortinet hardware. Contact our team to customise a support package that matches your operational needs.
https://www.fortinet.com/content/dam/fortinet/assets/legal/EULA.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Wi-Fi Standard: IEEE 802.11be (Wi-Fi 7), backward compatible with 802.11a/b/g/n/ac/ax
- Frequency Bands: Tri-band — 2.4 GHz, 5 GHz, 6 GHz (6 GHz subject to regional regulatory approval)
- Radios: 4 total — Radio 1 (2.4 GHz), Radio 2 (5 GHz), Radio 3 (6 GHz), Radio 4 (Dedicated All-Band Scan)
- Spatial Streams: 2x2 MU-MIMO per radio (2 streams)
- Max Data Rates: 688 Mbps (2.4 GHz) + 4.324 Gbps (5 GHz) + 5.765 Gbps (6 GHz)
- Antennas: 7 internal — 6x Wi-Fi + 1x BLE/Zigbee
- Uplink Ports: 1x 10G SFP+, 1x 5G RJ45 (802.3bt PoE input)
- Console Port: 1x RS-232 RJ45 Serial
- Wireless Clients: Up to 512 per radio
- Integrated Radios: BLE/Zigbee for IoT and locationing
- Power Input: 802.3bt PoE (GPI-145 PoE injector included)
- Operating Temperature: -40°C to 70°C
- Humidity: 5–90% non-condensing
- Enclosure: Ruggedized weatherproof outdoor
- Mounting: Pole and wall mount bracket included
- Regulatory Region: Oceania (EO)
- Management: FortiGate integrated WLAN controller or FortiEdge Cloud

FAQs

Q: Can I purchase the FAP-244K-EO in Australia through IP Trading?
A: Yes. IP Trading (iptrading.com.au) is an authorised Australian B2B IT hardware reseller stocking authentic Fortinet products including the FAP-244K-EO. The EO variant is the correct regulatory SKU for the Oceania region, making it the appropriate model for Australian deployments.

Q: What makes the FAP-244K different from standard Wi-Fi 6 outdoor access points?
A: The FAP-244K operates on Wi-Fi 7 (802.11be), delivering significantly higher maximum throughput — up to 5.765 Gbps on 6 GHz — alongside OFDMA and a dedicated 4th scanning radio that performs continuous all-band RF monitoring without impacting the three client-serving radios. It also includes a 10G SFP+ uplink, which eliminates wired backhaul as a bottleneck for high-density outdoor sites.

Q: Is the 6 GHz band available for use in Australia?
A: The 6 GHz band availability depends on ACMA regulatory approval in Australia. The FAP-244K-EO supports 6 GHz hardware capability; however, operators should confirm current ACMA approvals before deploying the 6 GHz radio in Australian outdoor environments.

Q: How is the FortiAP-244K managed?
A: The FAP-244K integrates with FortiGate firewalls via the built-in WLAN controller for on-premise management, or with FortiEdge Cloud for zero-touch, cloud-managed deployments. Both options provide centralised policy, monitoring, and Fortinet Security Fabric integration.

Q: What security features are available on this access point?
A: As part of the Fortinet Security Fabric, the FAP-244K supports integrated Firewall, IPS, Application Control, Web Filtering, and NAC directly at the wireless edge. It also provides a foundation for ZTNA and SASE deployments, and the dedicated 4th radio enables continuous wireless threat detection and rogue AP scanning.

Q: What is included in the box with the FAP-244K-EO?
A: The FAP-244K-EO ships with 7 internal antennas (non-removable), an articulating pole and wall mount bracket, a grounding cable, and a GPI-145 PoE injector for power input via the 5G RJ45 port. An SFP+ transceiver for the 10G uplink is not included and must be sourced separately.
