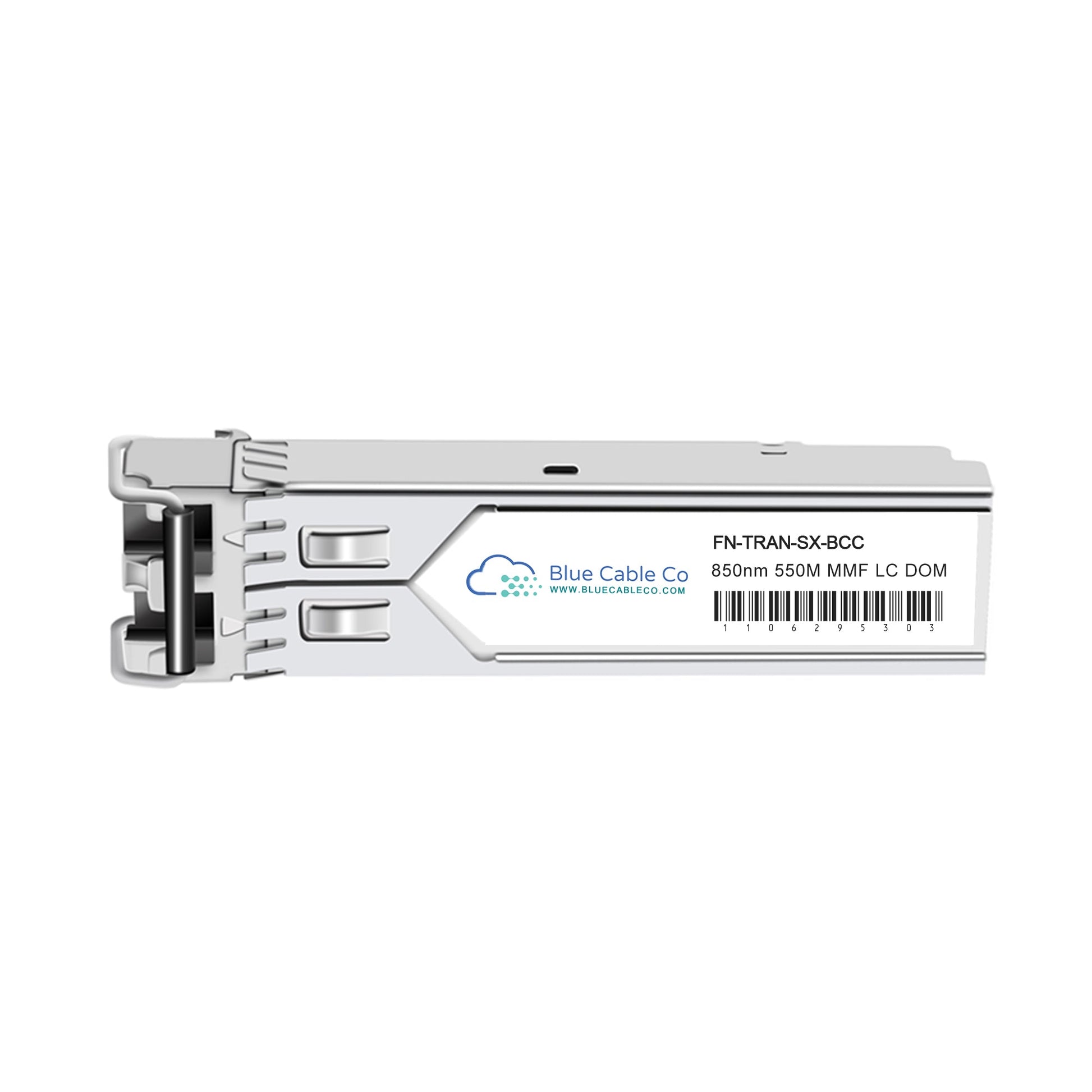

• Silver FN-TRAN-SX-BCC SFP transceiver with Blue Cable Co label
1 1

Blue Cable Co

FN-TRAN-SX-BCC | Fortinet Compatible 1GB Multi-Mode 550m (1000BASE-SX)

FN-TRAN-SX-BCC | Fortinet Compatible 1GB Multi-Mode 550m (1000BASE-SX)

FN-TRAN-SX-BCC

In stock:30

$49.50 AUD
$49.50 AUD
$49.50 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The FN-TRAN-SX-BCC is a drop-in compatible replacement for the Fortinet FN-TRAN-SX. This transceiver provides plug-and-play compatibility with Fortinet systems equipped with SFP slots. - IEEE 802.3z 1000BASE-SX compliance guarantees interoperability with standards-based Gigabit Ethernet equipment - SFP form factor, 1.25 Gbps data rate, 850nm wavelength over multi-mode fibre with duplex LC connector - Reaches up to 550m on OM2 50µm fibre or 220m on OM1 62.5µm fibre - Digital Optical Monitoring (DOM) support enables real-time link parameter diagnostics - Hot-swappable design allows installation and removal without powering down host equipment - Commercial temperature range operation from 0°C to 70°C suitable for standard networking environments

Features

• IEEE 802.3z compliance ensures the transceiver operates correctly on any standards-compliant Gigabit Ethernet switch or router port, regardless of vendor
• 850nm VCSEL transmitter optimised for multi-mode fibre delivers 1.25 Gbps full-duplex transmission with low power consumption under 800mW
• SFF-8472 digital diagnostics provide access to real-time temperature, voltage, transmit power, receive power, and bias current for proactive link monitoring
• Duplex LC connector supports high port density in SFP cages while maintaining secure latching and low insertion loss
• Hot-swappable operation allows field replacement during maintenance windows without disrupting adjacent active ports or requiring chassis power-down
• Commercial temperature rating suits data centre, enterprise LAN, and campus network deployments in climate-controlled environments

Warranty

5-Year Advanced Warranty on All Blue Cable Co® Products

Blue Cable Co® offers a comprehensive 5-Year Advanced Warranty on all our branded products. Our advanced warranty ensures fast, hassle-free replacements to keep your network running smoothly. If a fault occurs, we'll deliver a replacement part before you return the faulty itemminimising downtime and giving you complete peace of mind.

Choose Blue Cable Co® for reliable, high-quality network components backed by industry-leading warranty support.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Compatible SFP Selector

Technical Specifications

Brand: Blue Cable Co
BCC SKU: FN-TRAN-SX-BCC
Compatible Replacement For: FN-TRAN-SX
Compatibility: Fortinet compatible
Lab Testing: Tested in Sydney, Australia
Warranty: 5-year advanced hardware replacement (Blue Cable Co)
Form Factor: SFP
Data Rate: 1.25 Gbps
Wavelength: 850nm
Fibre Type: Multi-Mode (MMF)
Connector Type: Duplex LC
DOM Support: Yes
Standards: IEEE 802.3z 1000BASE-SX, SFP MSA, SFF-8472
Max Reach: 550m on OM2 (50µm), 220m on OM1 (62.5µm)
Operating Temperature: 0°C to 70°C (commercial)

FAQs

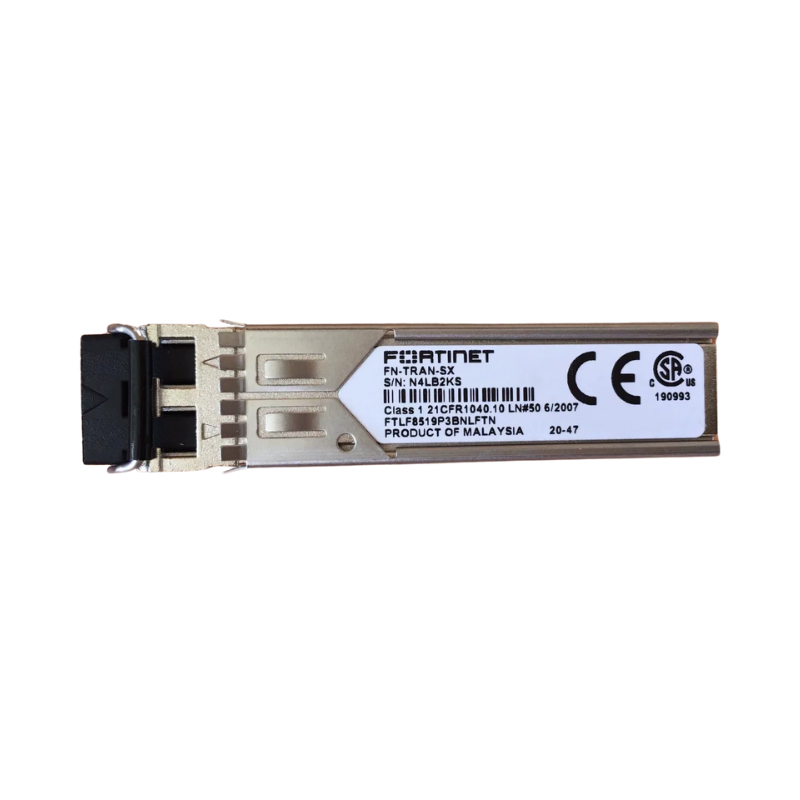

Q: Will this work in place of the Fortinet FN-TRAN-SX?
A: Yes. This transceiver matches the FN-TRAN-SX in form factor (SFP), data rate (1.25 Gbps), wavelength (850nm), reach (550m OM2), and IEEE 802.3z 1000BASE-SX standard compliance. It is plug-and-play compatible with Fortinet systems that support the original part.

Q: Which Fortinet platforms support this transceiver?
A: This transceiver works in any Fortinet device with SFP slots that support 1000BASE-SX optics, including FortiGate security appliances and FortiSwitch models. Compatibility is defined by the SFP slot and IEEE 802.3z support, not by specific model numbers.

Q: What fibre types and distances does this transceiver support?
A: It supports 50µm OM2 multi-mode fibre up to 550m and 62.5µm OM1 multi-mode fibre up to 220m. Actual reach depends on fibre quality, patch panel insertion loss, and link budget. OM3 and OM4 fibres will also work and may extend usable distance slightly, but 550m is the specified maximum.

Q: Can I access DOM diagnostics on this transceiver?
A: Yes. The transceiver includes SFF-8472 compliant digital diagnostics. You can read real-time optical power levels, temperature, supply voltage, and laser bias current through the Fortinet CLI or management interface, provided your platform and firmware support DOM readout for SFP modules.

Q: What happens if I connect this 850nm transceiver to single-mode fibre?
A: The link will not establish. 850nm VCSEL lasers used in 1000BASE-SX transceivers have a modal bandwidth and core size optimised for multi-mode fibre (50µm or 62.5µm). Single-mode fibre requires a 1310nm or 1550nm laser source, such as the FN-TRAN-LX or FN-TRAN-EX.
