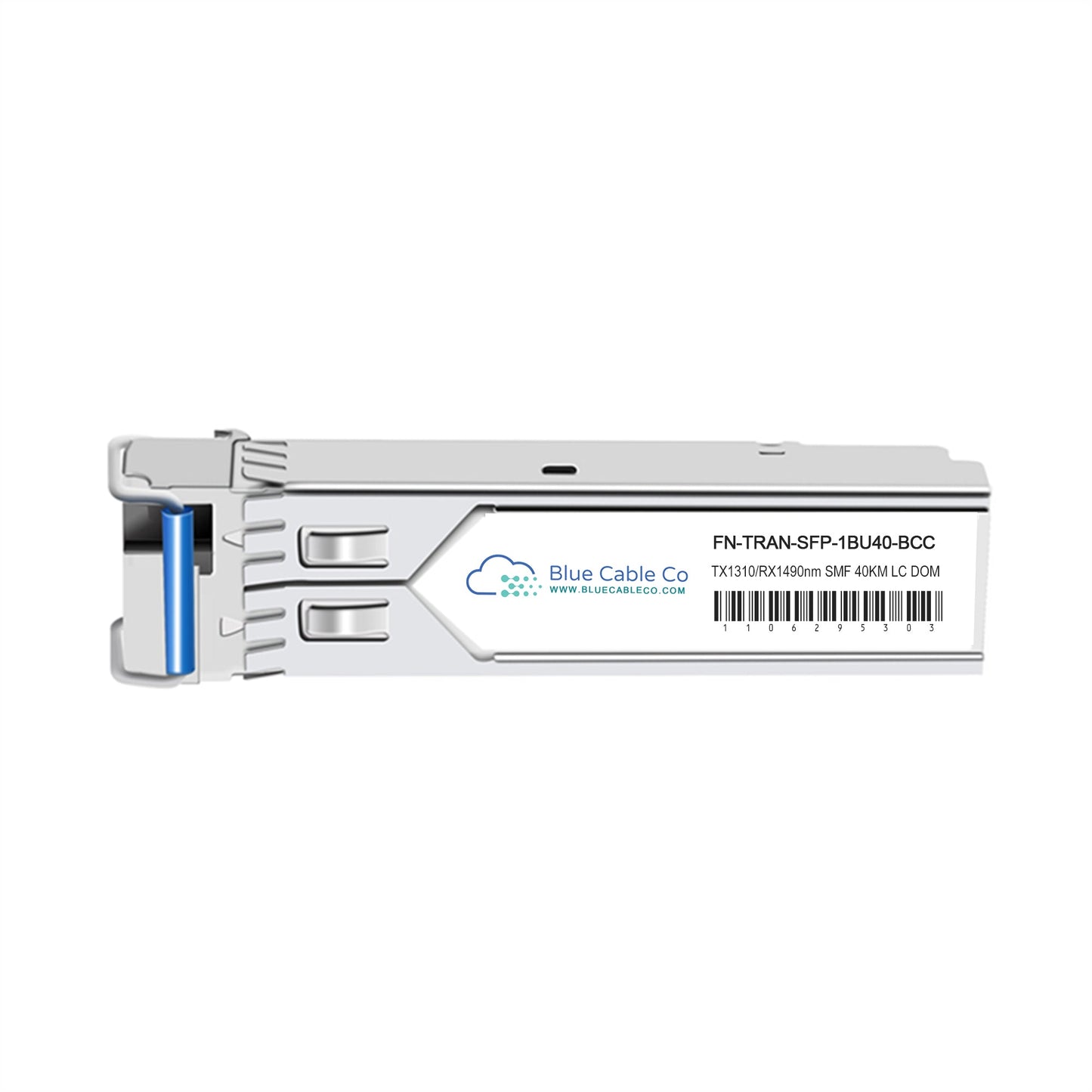

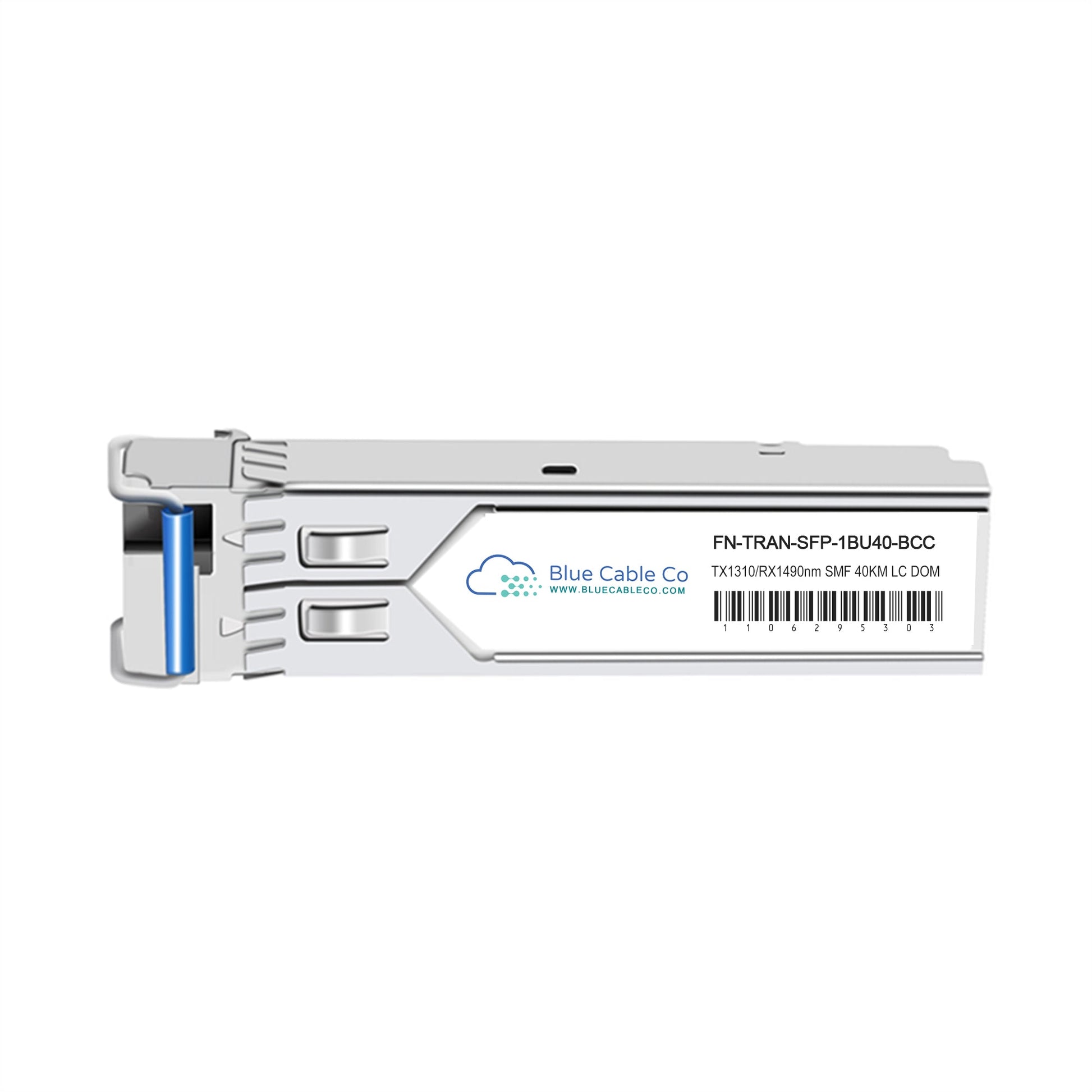

• Fortinet compatible 1GB SFP transceiver with blue fiber connector, Blue Cable Co. label
1 1

Blue Cable Co

FN-TRAN-SFP-1BU40-BCC | Fortinet Compatible 1GB Single-Mode 40km (1000BASE-BX40-U) Industrial

FN-TRAN-SFP-1BU40-BCC | Fortinet Compatible 1GB Single-Mode 40km (1000BASE-BX40-U) Industrial

FN-TRAN-SFP-1BU40-BCC

Stock Status: Enquire

$77.00 AUD
$77.00 AUD
$77.00 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The FN-TRAN-SFP-1BU40-BCC is a drop-in compatible replacement for the Fortinet FN-TRAN-SFP-1BU40. This SFP transceiver operates plug-and-play in Fortinet systems with SFP and SFP+ slots, delivering industrial-grade reliability from -40C to +85C. - 1000BASE-BX40-U compliance per IEEE 802.3ah guarantees interoperability with BiDi upstream equipment on single-mode fibre - BiDi technology transmits 1310nm and receives 1490nm over a single LC simplex connector, reducing fibre requirements by 50 percent - 40km reach over 9/125 micron single-mode fibre at 1.25 Gbps data rate - DOM support provides real-time monitoring of optical power, temperature, bias current, and voltage - Industrial temperature range (-40C to +85C) supports deployment in harsh environments and outdoor enclosures - Must be paired with complementary BiDi transceiver (FN-TRAN-SFP-1BD40 or equivalent with 1490nm Tx / 1310nm Rx wavelengths)

Features

• IEEE 802.3ah 1000BASE-BX40-U standard compliance ensures interoperability with BiDi upstream transceivers using complementary wavelength pairs on point-to-point single-mode links
• DFB laser transmitter at 1310nm paired with PIN photodiode receiver at 1490nm integrated into a single BiDi BOSA, enabling bidirectional transmission over one fibre strand
• Industrial temperature rating from -40C to +85C supports deployments in outdoor cabinets, roadside equipment, and industrial environments without climate control
• SFF-8472 digital diagnostics interface provides real-time access to Tx power, Rx power, temperature, bias current, and supply voltage for proactive link monitoring
• Hot-swappable SFP form factor allows field installation and replacement without powering down the host system
• Simplex LC connector requires complementary downstream BiDi transceiver (1490nm Tx / 1310nm Rx) such as FN-TRAN-SFP-1BD40 to complete the bidirectional link
• Power consumption under 1W and compliance with SFP MSA specifications ensure compatibility with standard SFP and SFP+ cage designs

Warranty

5-Year Advanced Warranty on All Blue Cable Co® Products

Blue Cable Co® offers a comprehensive 5-Year Advanced Warranty on all our branded products. Our advanced warranty ensures fast, hassle-free replacements to keep your network running smoothly. If a fault occurs, we'll deliver a replacement part before you return the faulty itemminimising downtime and giving you complete peace of mind.

Choose Blue Cable Co® for reliable, high-quality network components backed by industry-leading warranty support.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Compatible SFP Selector

Technical Specifications

Brand: Blue Cable Co
BCC SKU: FN-TRAN-SFP-1BU40-BCC
Compatible Replacement For: FN-TRAN-SFP-1BU40
Compatibility: Fortinet compatible
Lab Testing: Tested in Sydney, Australia
Warranty: 5-year advanced hardware replacement (Blue Cable Co)
Form Factor: SFP
Data Rate: 1.25 Gbps
Standards: 1000BASE-BX40-U (IEEE 802.3ah)
Wavelength: Tx 1310nm / Rx 1490nm
Fibre Type: Single-mode (9/125 micron)
Connector Type: Simplex LC
Max Reach: 40km (subject to fibre quality and link budget)
DOM Support: Yes (SFF-8472 compliant)
Operating Temperature: -40C to +85C (industrial)
Power Dissipation: < 1W

FAQs

Q: Will this work in place of the FN-TRAN-SFP-1BU40?
A: Yes. This transceiver matches the FN-TRAN-SFP-1BU40 specification for form factor (SFP), data rate (1.25 Gbps), standard (1000BASE-BX40-U per IEEE 802.3ah), wavelengths (Tx 1310nm / Rx 1490nm), and industrial temperature range. It operates plug-and-play in Fortinet systems with SFP or SFP+ slots.

Q: Which Fortinet platforms support this transceiver?
A: This transceiver is designed for Fortinet systems with SFP or SFP+ slots. The Fortinet datasheet specifies compatibility with systems equipped with SFP+ slots that support 1GE operation. Verify your specific FortiGate or FortiSwitch model includes SFP or SFP+ ports rated for Gigabit Ethernet.

Q: Why does this BiDi transceiver require a specific partner wavelength?
A: This is the upstream (U) variant transmitting at 1310nm and receiving at 1490nm. The link requires a downstream partner transceiver with reversed wavelengths (Tx 1490nm / Rx 1310nm), such as the FN-TRAN-SFP-1BD40. Mismatched wavelength pairs will not establish a link because the receiver on each end must match the transmitter wavelength on the opposite end.

Q: What is the actual usable reach over single-mode fibre?
A: The 40km specification assumes ITU-T G.652 compliant single-mode fibre with typical insertion loss around 0.35 dB/km plus connector and splice losses. In practice, reach depends on total link budget. DOM monitoring allows you to measure received optical power in real time to confirm adequate margin before deployment.

Q: Can this transceiver tolerate the industrial temperature range at full data rate?
A: Yes. The -40C to +85C specification means the transceiver is designed to maintain full 1.25 Gbps performance and meet optical power and sensitivity specifications across the entire industrial temperature range. This distinguishes it from commercial-grade transceivers rated 0C to +70C.
