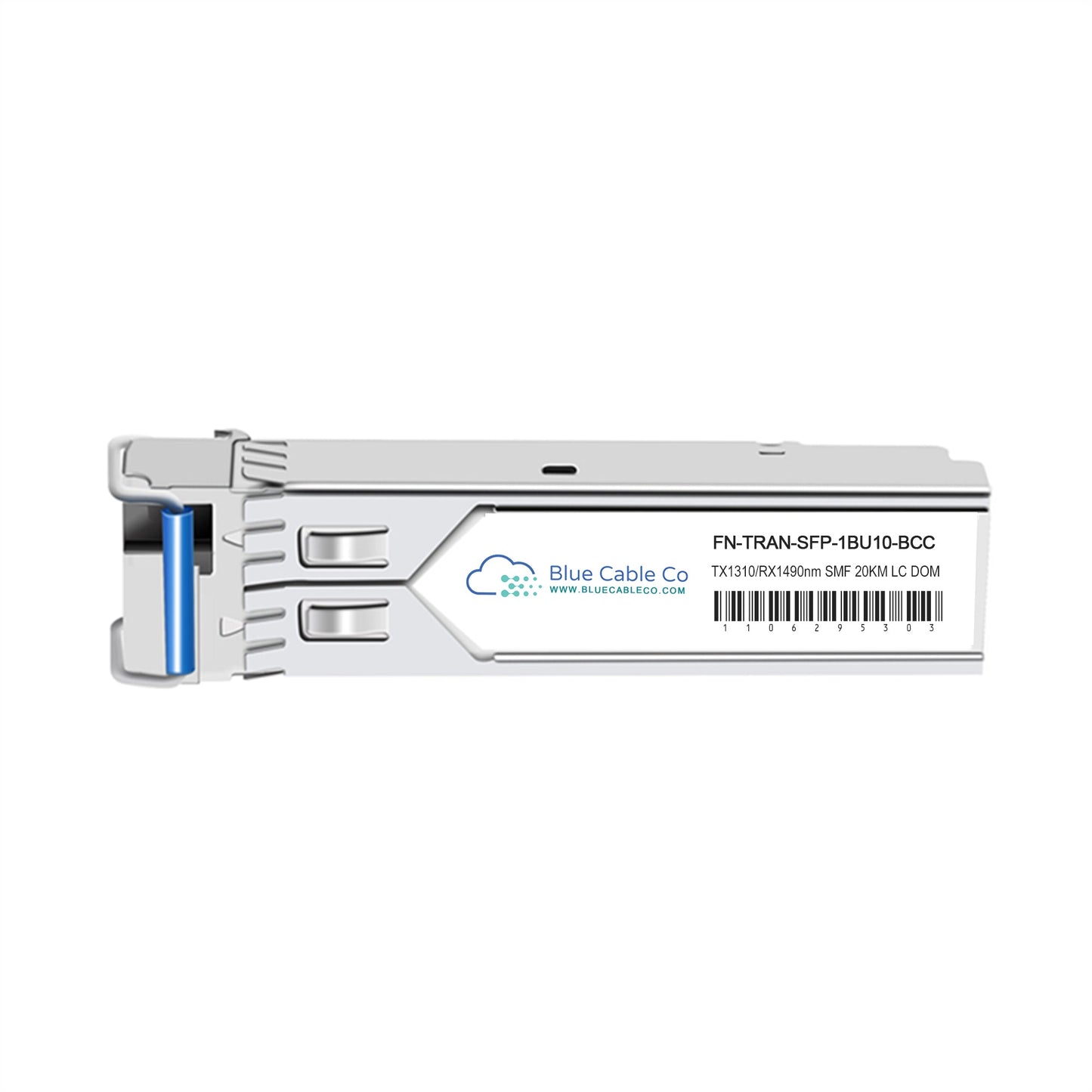

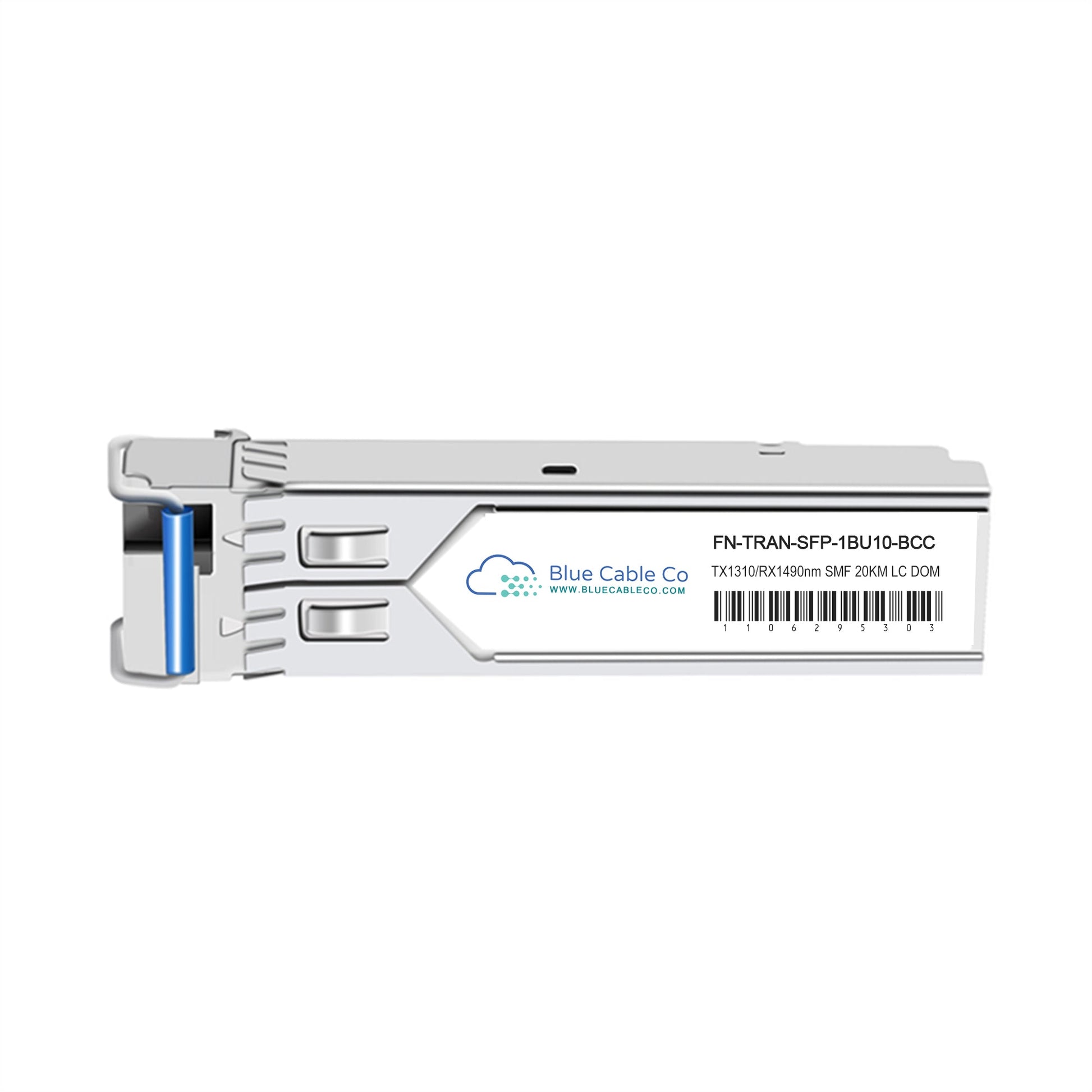

• Fortinet compatible 1GB BiDi SFP transceiver with blue fiber connector
1 1

Blue Cable Co

FN-TRAN-SFP-1BU10-BCC | Fortinet Compatible 1GB BiDi Transceiver - 10km (1000BASE-BX-U)

FN-TRAN-SFP-1BU10-BCC | Fortinet Compatible 1GB BiDi Transceiver - 10km (1000BASE-BX-U)

FN-TRAN-SFP-1BU10-BCC

In stock:13

$55.99 AUD
$55.99 AUD
$55.99 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The FN-TRAN-SFP-1BU10-BCC is a drop-in compatible replacement for the Fortinet FN-TRAN-SFP-1BU10. This plug-and-play transceiver operates in Fortinet systems with SFP or SFP+ slots requiring 1000BASE-BX-U connectivity. - IEEE 802.3ah 1000BASE-BX10 standard compliance ensures interoperability with standards-based Gigabit Ethernet equipment - SFP form factor with 1.25 Gbps data rate, single-mode fibre, simplex LC connector, 10km reach - BiDi architecture: transmits at 1310nm, receives at 1490nm over a single fibre strand - Must be paired with a complementary 1000BASE-BX-D downstream transceiver (1490nm TX / 1310nm RX) - DOM support provides real-time monitoring of optical power, temperature, bias current, and supply voltage - Industrial temperature range: -40°C to 85°C

Features

• IEEE 802.3ah compliance guarantees standards-based Gigabit Ethernet interoperability with equipment from any vendor supporting 1000BASE-BX10
• BiDi (bidirectional) technology uses WDM to transmit and receive over a single fibre strand, halving fibre infrastructure costs compared to duplex solutions
• Upstream (U) designation: this transceiver must be deployed with a complementary downstream (D) transceiver with inverse wavelengths (1490nm TX / 1310nm RX)
• DOM capability exposes real-time diagnostic parameters (optical power, temperature, bias current, voltage) via the host interface for proactive link monitoring
• Industrial temperature rating (-40°C to 85°C) supports deployment in non-climate-controlled environments including outdoor cabinets and remote installations
• Hot-swappable SFP form factor allows field installation and replacement without powering down the host system
• Single-mode fibre at 1310nm transmission provides 10km reach over OS1 or OS2 fibre with typical link budgets

Warranty

5-Year Advanced Warranty on All Blue Cable Co® Products

Blue Cable Co® offers a comprehensive 5-Year Advanced Warranty on all our branded products. Our advanced warranty ensures fast, hassle-free replacements to keep your network running smoothly. If a fault occurs, we'll deliver a replacement part before you return the faulty itemminimising downtime and giving you complete peace of mind.

Choose Blue Cable Co® for reliable, high-quality network components backed by industry-leading warranty support.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Compatible SFP Selector

Technical Specifications

Brand: Blue Cable Co
BCC SKU: FN-TRAN-SFP-1BU10-BCC
Compatible Replacement For: FN-TRAN-SFP-1BU10
Compatibility: Fortinet compatible
Lab Testing: Tested in Sydney, Australia
Warranty: 5-year advanced hardware replacement (Blue Cable Co)
Form Factor: SFP
Data Rate: 1.25 Gbps
Standard: 1000BASE-BX10 (IEEE 802.3ah)
Wavelength: TX 1310nm / RX 1490nm
Fibre Type: Single-Mode (SMF)
Connector Type: Simplex LC
Max Reach: 10km (per datasheet, subject to fibre and link conditions)
DOM Support: Yes
Power Dissipation: < 1W
Operating Temperature: -40°C to 85°C

FAQs

Q: Will this work in place of the Fortinet FN-TRAN-SFP-1BU10?
A: Yes. This transceiver is fully compliant with the IEEE 802.3ah 1000BASE-BX10 standard, uses the same SFP form factor, operates at 1.25 Gbps, and matches the specification: TX 1310nm / RX 1490nm over single-mode fibre to 10km. It is plug-and-play in Fortinet systems with SFP or SFP+ slots.

Q: Which Fortinet platforms support this transceiver?
A: This transceiver works in any Fortinet system with SFP or SFP+ slots that support 1000BASE-BX10 transceivers. The datasheet confirms compatibility with systems having SFP/SFP+ slots. Consult your platform documentation to confirm the port supports 1000BASE-BX operation.

Q: Why must this transceiver be paired with a specific complementary unit?
A: BiDi transceivers use wavelength division multiplexing (WDM) over a single fibre strand. The upstream (U) transceiver transmits at 1310nm and receives at 1490nm. The far end must use a downstream (D) transceiver with inverse wavelengths: TX 1490nm / RX 1310nm. Pairing two upstream or two downstream transceivers will not establish a link because both would transmit on the same wavelength.

Q: What fibre type and quality is required for 10km reach?
A: This transceiver requires single-mode fibre (SMF) such as OS1 or OS2. The 10km reach assumes typical link budget and fibre attenuation around 0.35 dB/km at 1310nm. Actual reach depends on fibre quality, splice loss, connector condition, and any inline attenuation. Use clean LC/UPC connectors and verify link budget if operating near maximum distance.

Q: Can this transceiver operate in SFP+ 10GE ports at reduced speed?
A: Yes, if the host port supports multi-rate operation. Many SFP+ ports auto-negotiate to 1GE when a 1.25 Gbps transceiver is installed. The Fortinet datasheet confirms this transceiver works in systems with SFP+ slots. Verify your specific platform supports 1GE operation in SFP+ ports, as some 10GE-only ports may not negotiate down to 1.25 Gbps.
