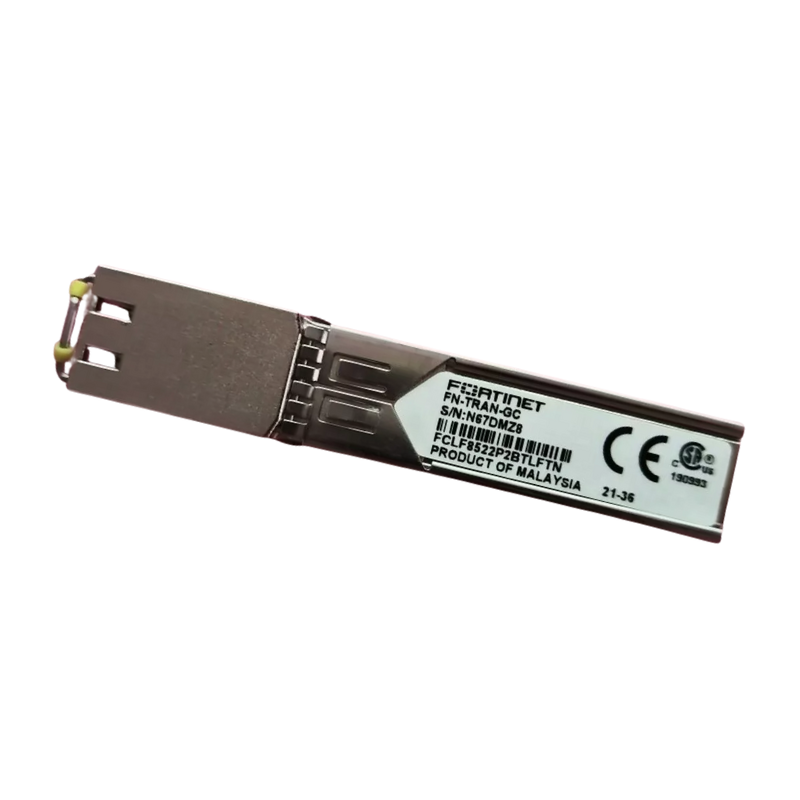

• Silver FN-TRAN-GC-BCC Fortinet SFP RJ45 transceiver module, 100m copper
1 1

Blue Cable Co

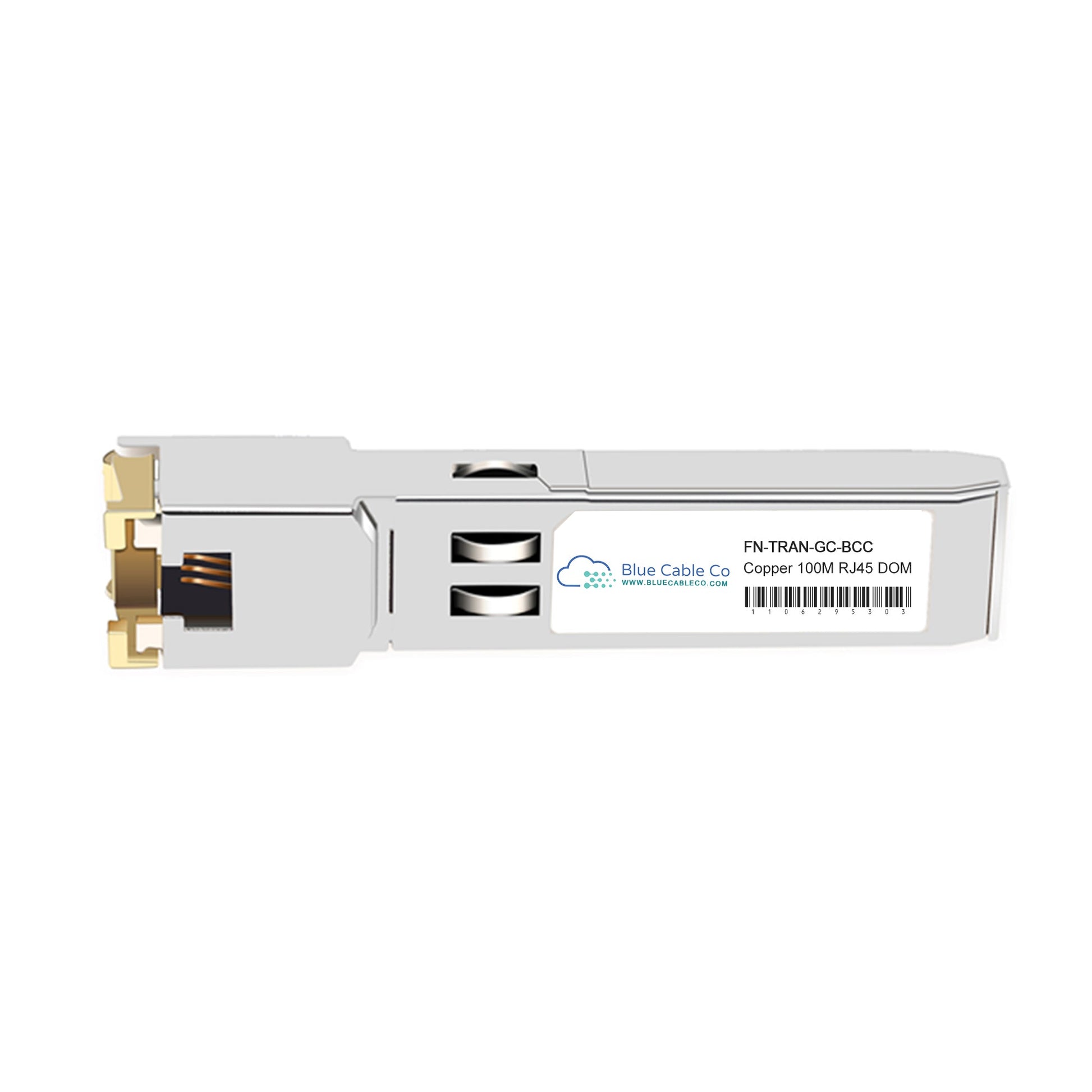

FN-TRAN-GC-BCC | Fortinet Compatible 1GB Ethernet RJ45 100m (1000BASE-T)

FN-TRAN-GC-BCC | Fortinet Compatible 1GB Ethernet RJ45 100m (1000BASE-T)

FN-TRAN-GC-BCC

In stock:40

$66.00 AUD
$66.00 AUD
$66.00 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The FN-TRAN-GC-BCC is a drop-in compatible replacement for the Fortinet FN-TRAN-GC. This copper SFP transceiver provides plug-and-play Gigabit Ethernet connectivity over standard Cat5, Cat5e, or Cat6 twisted-pair cabling for Fortinet switches, routers, and security appliances with SFP or SFP+ slots. - IEEE 802.3ab 1000BASE-T compliance ensures interoperability with any standards-compliant Gigabit Ethernet port - SFP form factor, 1.25 Gbps data rate, RJ-45 copper interface, up to 100m reach over Cat5/Cat5e/Cat6 cable - Hot-swappable with auto-negotiation support for seamless link establishment - Digital monitoring interface (DMI) provides real-time access to temperature, voltage, and link performance data - Low power consumption (1.05W typical) with extended operating temperature range from 0 to 85°C - Compliant with SFP MSA and SFF-8431 specifications for multi-vendor compatibility

Features

• IEEE 802.3ab 1000BASE-T standard guarantees full interoperability with any Gigabit Ethernet copper infrastructure using standard four-pair twisted-pair signaling over 100-meter links
• Internal Ethernet PHY chipset handles all physical-layer signal processing, auto-negotiation, and electrical conversion, enabling the SFP slot to function as a native RJ-45 Gigabit Ethernet port
• Hot-swappable design with ESD protection allows field installation and replacement without system downtime or power cycling
• Digital Diagnostic Monitoring Interface provides real-time telemetry including temperature, supply voltage, and TX/RX power levels via I2C/MDIO access for proactive fault isolation
• Extended operating temperature range (0 to 85°C) supports deployment in both standard office and harsher industrial networking environments without thermal derating
• Low power dissipation (1.05W typical) minimizes heat load in high-density switch chassis and reduces total system power draw compared to earlier-generation copper SFPs
• Compliant with SFP MSA and SFF-8431 mechanical and electrical specifications, ensuring compatibility with SFP and SFP+ slots across multi-vendor platforms

Warranty

5-Year Advanced Warranty on All Blue Cable Co® Products

Blue Cable Co® offers a comprehensive 5-Year Advanced Warranty on all our branded products. Our advanced warranty ensures fast, hassle-free replacements to keep your network running smoothly. If a fault occurs, we'll deliver a replacement part before you return the faulty itemminimising downtime and giving you complete peace of mind.

Choose Blue Cable Co® for reliable, high-quality network components backed by industry-leading warranty support.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Compatible SFP Selector

Technical Specifications

Brand: Blue Cable Co
BCC SKU: FN-TRAN-GC-BCC
Compatible Replacement For: FN-TRAN-GC
Compatibility: Fortinet compatible
Lab Testing: Tested in Sydney, Australia
Warranty: 5-year advanced hardware replacement (Blue Cable Co)
Form Factor: SFP (Small Form-Factor Pluggable)
Data Rate: 1.25 Gbps
Standard: 1000BASE-T (IEEE 802.3ab)
Connector Type: RJ-45
Cable Type: Copper (Cat5, Cat5e, or Cat6 UTP)
Max Reach: 100m
Digital Monitoring: Yes (DMI/DOM supported)
Auto-Negotiation: Yes
Power Consumption: 1.05W typical
Operating Temperature: 0°C to 85°C

FAQs

Q: Will this work in place of the Fortinet FN-TRAN-GC?
A: Yes. The FN-TRAN-GC-BCC is designed as a plug-and-play drop-in replacement for the Fortinet FN-TRAN-GC. It shares the same IEEE 802.3ab 1000BASE-T standard, SFP form factor, 1.25 Gbps data rate, RJ-45 copper interface, and 100m reach specification over Cat5 or better cable.

Q: Which Fortinet platforms support this transceiver?
A: This transceiver is compatible with Fortinet switches, routers, firewalls, and security appliances that have SFP or SFP+ slots and list the FN-TRAN-GC as a supported transceiver. Because it conforms to the 1000BASE-T standard and SFP MSA specification, it will function in any SFP slot that supports copper Gigabit Ethernet operation.

Q: What cable type is required and can I use existing Cat5 infrastructure?
A: Yes. This transceiver supports standard unshielded twisted-pair (UTP) Ethernet cable rated Cat5, Cat5e, or Cat6. The 1000BASE-T standard requires all four pairs for bi-directional 1.25 Gbps signaling. Existing Cat5 cable installations rated for 100m Gigabit Ethernet will work without modification.

Q: Does this transceiver support link speed auto-negotiation and how does it interact with 10/100 Mbps ports?
A: This transceiver supports IEEE 802.3 auto-negotiation and will establish a 1000 Mbps full-duplex link when connected to a Gigabit Ethernet port. However, it is designed specifically for 1000BASE-T operation. If your deployment requires multi-rate 10/100/1000 Mbps support on the same port, verify that your host platform and this module variant explicitly support SGMII or lower-speed fallback modes.

Q: Can I access diagnostic data and what parameters are available via the digital monitoring interface?
A: Yes. This transceiver includes a Digital Diagnostic Monitoring Interface (DMI/DOM) accessible via the two-wire serial bus defined in the SFP MSA. You can monitor real-time temperature, supply voltage, TX bias current, and receive signal strength. Access method depends on your NOS or management platform, typically via SNMP, CLI, or vendor-specific APIs that read the transceiver EEPROM registers.
