• Fortinet FN-CABLE-QSFP28-X-BCC QSFP28 to QSFP28 10g black silver copper cable

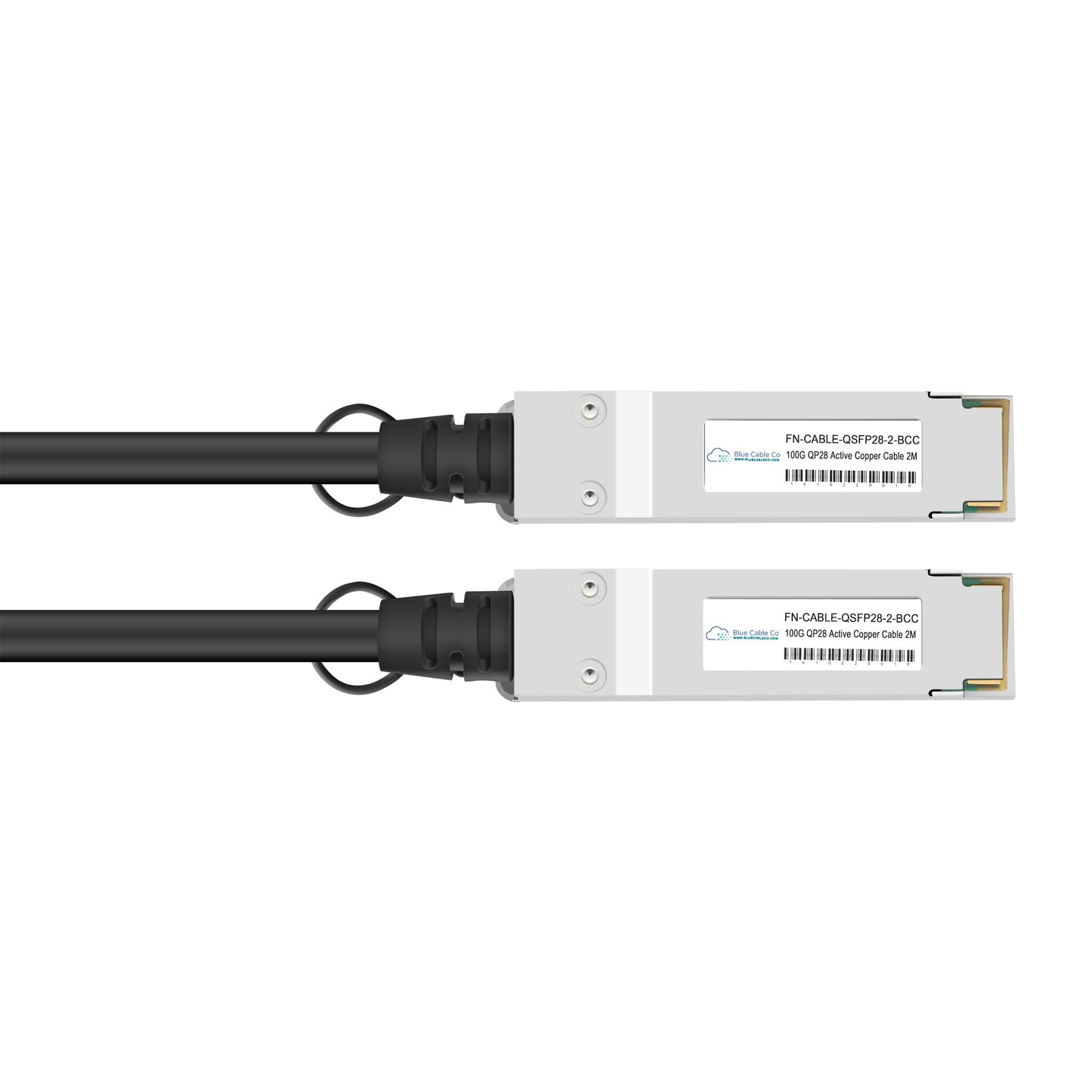

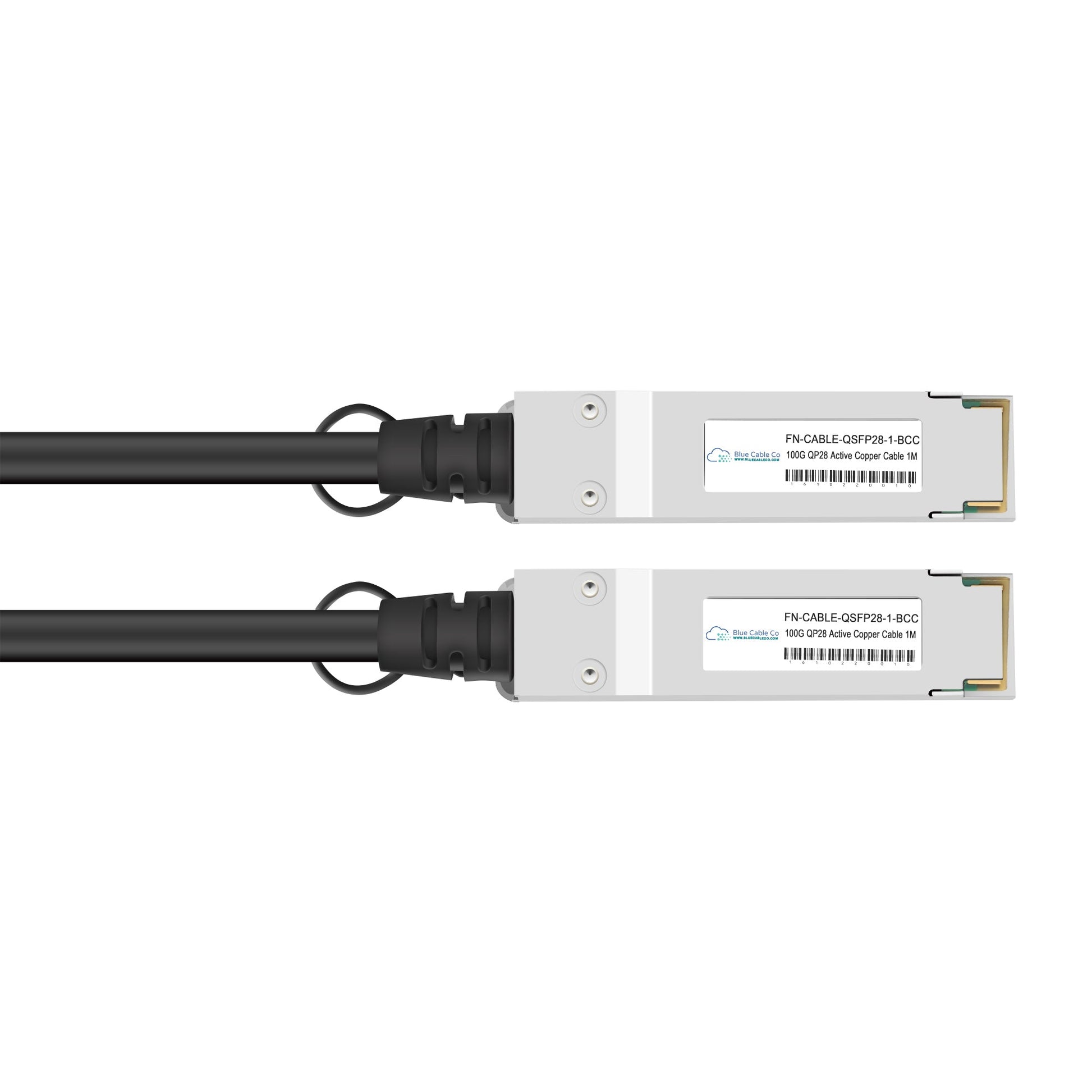

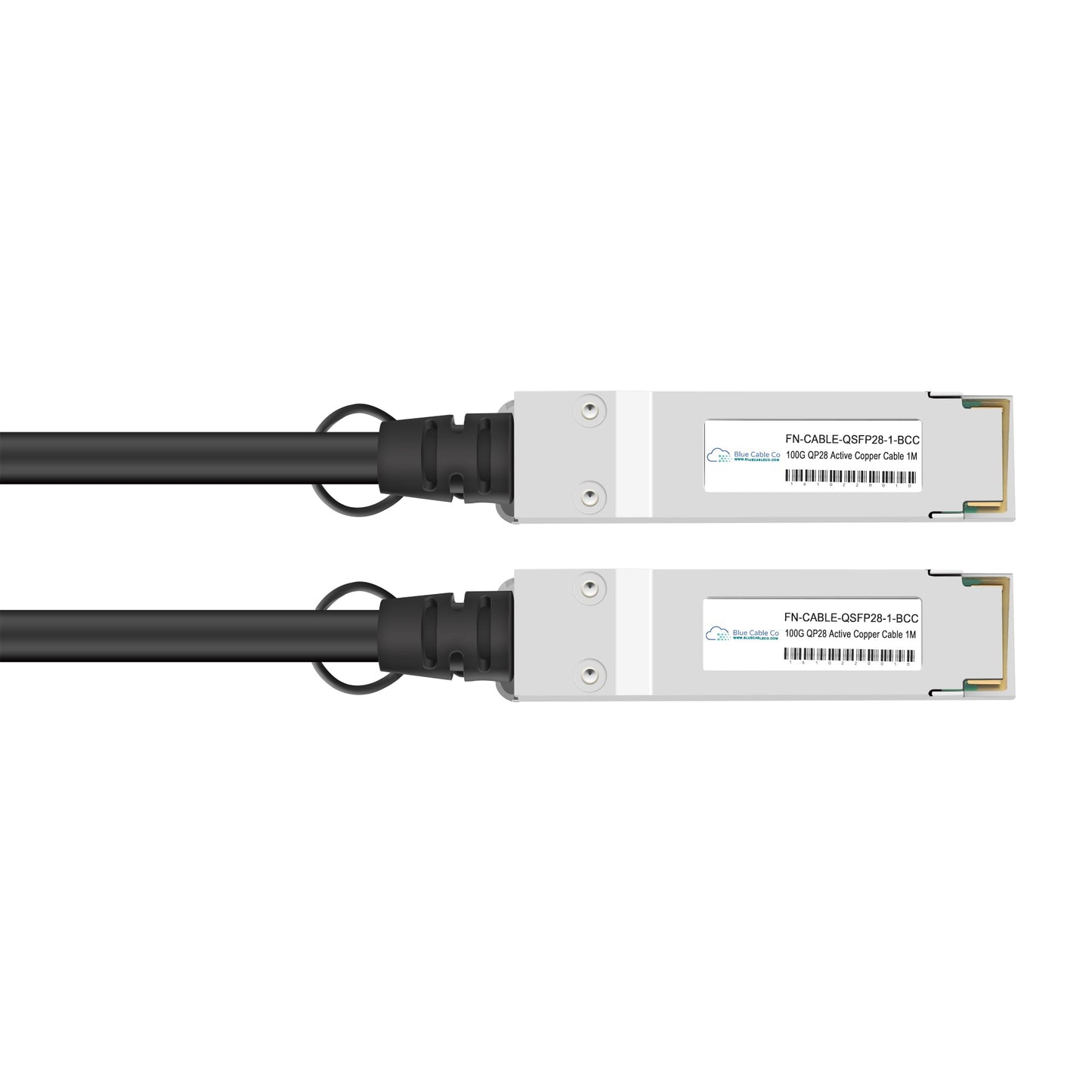

  • Black and silver FN-CABLE-QSFP28-X-BCC QSFP28 active copper cable 100G
  • Fortinet FN-CABLE-QSFP28-X-BCC QSFP28 silver active copper cable 1-5M
  • Black and silver QSFP28 S-BCB active copper cable, Fortinet compatible 100GBASE-CR4, 1-5M
1 4

Blue Cable Co

FN-CABLE-QSFP28-X-BCC | Fortinet Compatible QSFP to QSFP Copper Direct-Attach 100GBASE-CR4 Cable | 1 to 5M

FN-CABLE-QSFP28-X-BCC | Fortinet Compatible QSFP to QSFP Copper Direct-Attach 100GBASE-CR4 Cable | 1 to 5M

FN-CABLE-QSFP28-1-BCC

In stock:10

$126.50 AUD
$126.50 AUD
$126.50 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The FN-CABLE-QSFP28-X-BCC is a drop-in compatible replacement for the Fortinet FN-CABLE-QSFP28-1. This passive copper cable is plug-and-play compatible with Fortinet systems with QSFP28 slots. - Compliant with IEEE 802.3bj 100GBASE-CR4 and QSFP28 MSA SFF-8665 standards, ensuring full compatibility with 100G Ethernet systems - QSFP28 form factor, passive copper twinax construction, 100Gb/s data rate over four 25Gb/s lanes - Operating temperature range: 0°C to 70°C - Available in 1m, 2m, 3m, and 5m lengths for flexible intra-rack and adjacent rack interconnects - Power-efficient passive design with maximum 1.5W power consumption per connector - Hot-swappable for simplified maintenance and reduced downtime

Features

• IEEE 802.3bj 100GBASE-CR4 compliance guarantees four-lane electrical signaling at 25.78Gb/s per channel for full 100G throughput without protocol translation
• Four shielded twinax copper pairs deliver low insertion loss and ultra-low crosstalk for reliable short-reach connectivity within and between racks
• Passive copper design eliminates active electronics in the cable assembly, reducing power draw to 1.5W per connector and simplifying thermal management
• Hot-swappable QSFP28 connectors with EEPROM memory support I2C interface for host system identification and interoperability
• Operating temperature range of 0°C to 70°C suits standard data center environments without extended-temperature hardware requirements
• Four cable length options (1m, 2m, 3m, 5m) accommodate variable rack topologies and cable management constraints in spine-leaf or top-of-rack designs
• Compatible with systems using QSFP28 slots that adhere to MSA SFF-8665 mechanical and electrical specifications

Warranty

5-Year Advanced Warranty on All Blue Cable Co® Products

Blue Cable Co® offers a comprehensive 5-Year Advanced Warranty on all our branded products. Our advanced warranty ensures fast, hassle-free replacements to keep your network running smoothly. If a fault occurs, we'll deliver a replacement part before you return the faulty itemminimising downtime and giving you complete peace of mind.

Choose Blue Cable Co® for reliable, high-quality network components backed by industry-leading warranty support.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Compatible SFP Selector

Technical Specifications

Brand: Blue Cable Co
BCC SKU: FN-CABLE-QSFP28-xM
Compatible Replacement For: FN-CABLE-QSFP28-1
Compatibility: Fortinet compatible
Lab Testing: Tested in Sydney, Australia
Warranty: 5-year advanced hardware replacement (Blue Cable Co)
Form Factor: QSFP28 to QSFP28
Data Rate: 100Gb/s (4 x 25Gb/s)
Cable Type: Passive Direct Attach Copper (Twinax)
Standards: IEEE 802.3bj 100GBASE-CR4, QSFP28 MSA SFF-8665
Available Lengths: 1m, 2m, 3m, 5m
Operating Temperature: 0°C to 70°C
Power Consumption: Max 1.5W per end
Connector Type: QSFP28 dual connectors

FAQs

Q: Will this work in place of the Fortinet FN-CABLE-QSFP28-1?
A: Yes. This cable is a direct replacement for the FN-CABLE-QSFP28-1 and meets the same IEEE 802.3bj 100GBASE-CR4 standard with QSFP28 form factor and 100Gb/s data rate. It is plug-and-play compatible with Fortinet systems with QSFP28 slots and operates from 0°C to 70°C.

Q: Which Fortinet devices support this cable?
A: This cable works in any Fortinet switch, router, or appliance with QSFP28 slots supporting 100G Ethernet. If your system has a QSFP28 port and supports 100GBASE-CR4, this cable will function without configuration changes.

Q: What is the maximum reach for passive copper at 100Gb/s?
A: Passive copper DAC cables for 100GBASE-CR4 reliably support distances up to 5m over twinax. Beyond 5m, signal integrity degrades and active optical cables (AOC) are recommended. The four available lengths (1m, 2m, 3m, 5m) cover standard intra-rack and adjacent rack scenarios.

Q: Does this cable support InfiniBand EDR or only Ethernet?
A: This cable is specified for IEEE 802.3bj 100GBASE-CR4 Ethernet. While 100G passive twinax cables often share electrical characteristics with InfiniBand EDR (4 x 25Gb/s), compatibility depends on the host system EEPROM interpretation. This cable is programmed and tested for Fortinet Ethernet platforms.

Q: Can I mix different cable lengths in the same switch?
A: Yes. Each cable is an independent point-to-point connection and does not interact with other ports. You can deploy 1m cables for intra-rack connections and 3m or 5m cables for adjacent rack links in the same system without signal interference or configuration requirements.

Compatible SFP Selector

Need a Compatible SFP or QSFP Transceiver?

Use the Blue Cable Co Compatible SFP Selector to quickly filter by vendor compatibility, speed, form factor, fibre type, distance and connector and only see options that exist in our range.
Fully tested. No brand-tax. Sydney re-coding available if required.

Find Compatible Transceivers
