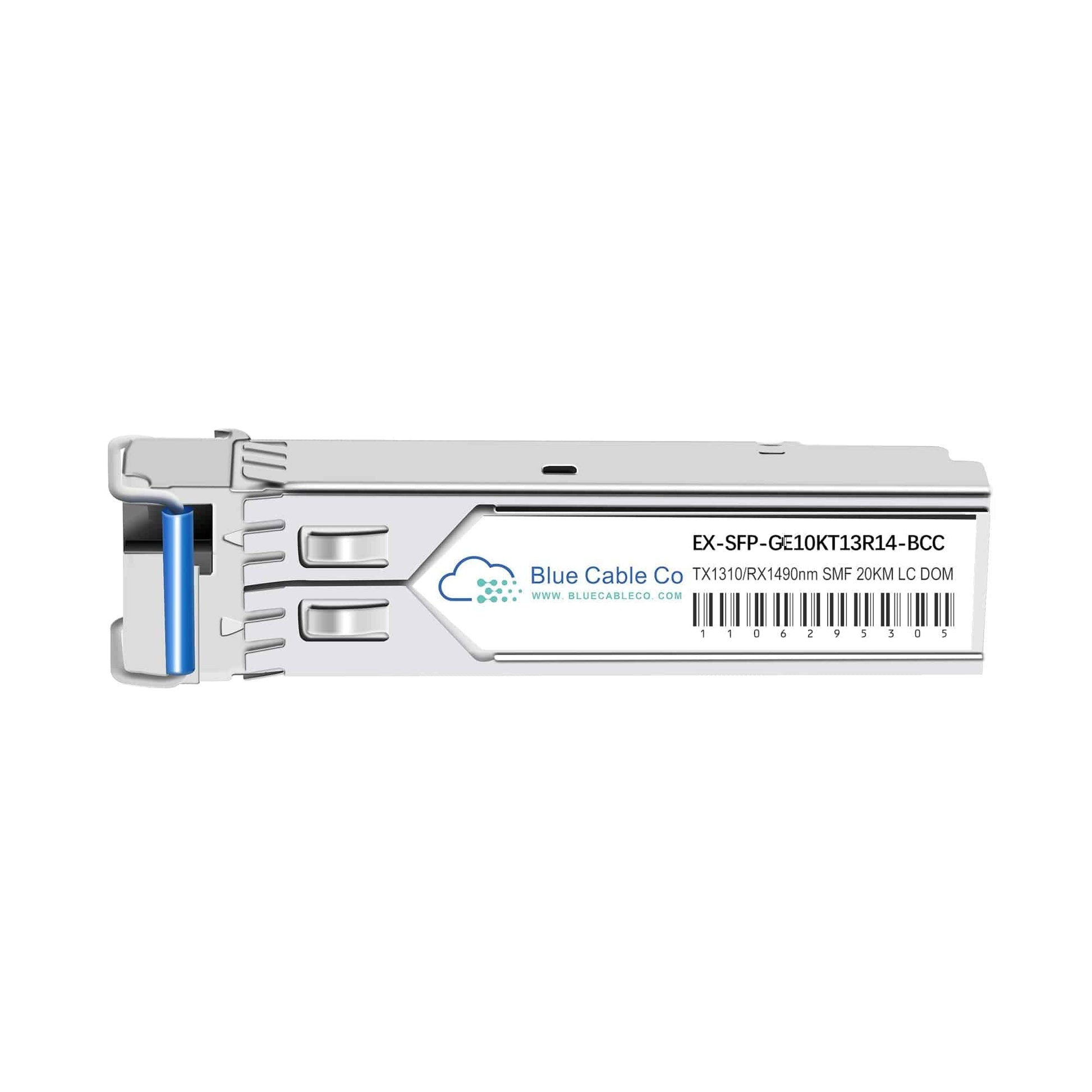

• Silver EX-SFP-GE10KT13R14-BCC-Blue Cable Co 1GB BiDi SFP transceiver
1 1

Blue Cable Co

EX-SFP-GE10KT13R14-BCC | Juniper Compatible 1GB BiDi Transceiver - 10km (1000BASE-BX-U)

EX-SFP-GE10KT13R14-BCC | Juniper Compatible 1GB BiDi Transceiver - 10km (1000BASE-BX-U)

EX-SFP-GE10KT13R14-BCC

In stock:13

$55.99 AUD
$55.99 AUD
$55.99 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The EX-SFP-GE10KT13R14-BCC is a drop-in compatible replacement for the Juniper EX-SFP-GE10KT13R14. This BiDi SFP transceiver delivers plug-and-play 1000BASE-BX connectivity in Juniper switches and routers with SFP ports. - IEEE 802.3ah 1000BASE-BX10-U compliant, guaranteeing interoperability with standard Gigabit Ethernet infrastructure - Transmits at 1310nm and receives at 1490nm over a single strand of SMF, reaching up to 10km - BiDi (bidirectional) design uses wavelength division multiplexing (WDM) to send and receive on one fibre, halving fibre requirements - Must be paired with a complementary downstream BiDi transceiver (1490nm Tx / 1310nm Rx) such as the EX-SFP-GE10KT14R13 - Digital Diagnostics Monitoring (DOM/DDM) support enables real-time monitoring of optical power, temperature, and bias current - Hot-swappable SFP MSA compliant form factor with simplex LC connector

Features

• IEEE 802.3ah 1000BASE-BX10-U compliance ensures seamless integration into standard Gigabit Ethernet networks and guarantees interoperability with other 1000BASE-BX devices when properly paired
• Wavelength division multiplexing separates the 1310nm transmit and 1490nm receive paths on a single fibre strand, enabling full-duplex communication without interference or the need for dual fibre runs
• This is an upstream (U) transceiver and must be deployed with a downstream (D) transceiver transmitting at 1490nm and receiving at 1310nm to complete the bidirectional link
• Integrated WDM splitter within the SFP splits the optical paths internally, allowing simplex LC connector operation over single-strand SMF while maintaining standard SFP MSA mechanical and electrical interfaces
• Digital Diagnostics Monitoring per SFF-8472 MSA provides access to optical transmit power, receive power, module temperature, laser bias current, and supply voltage for proactive link health monitoring
• Hot-swappable design supports insertion and removal without powering down the host device, with 3.3V single power supply operation and typical power consumption under 1W
• FP laser transmitter at 1310nm paired with PIN photodiode receiver at 1490nm delivers stable optical performance across the 10km single-mode fibre budget with commercial temperature rating

Warranty

5-Year Advanced Warranty on All Blue Cable Co® Products

Blue Cable Co® offers a comprehensive 5-Year Advanced Warranty on all our branded products. Our advanced warranty ensures fast, hassle-free replacements to keep your network running smoothly. If a fault occurs, we'll deliver a replacement part before you return the faulty itemminimising downtime and giving you complete peace of mind.

Choose Blue Cable Co® for reliable, high-quality network components backed by industry-leading warranty support.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Alternate Part Codes

FAQs

Compatible SFP Selector

Technical Specifications

Brand: Blue Cable Co
BCC SKU: EX-SFP-GE10KT13R14-BCC
Compatible Replacement For: EX-SFP-GE10KT13R14
Compatibility: Juniper compatible
Lab Testing: Tested in Sydney, Australia
Warranty: 5-year advanced hardware replacement (Blue Cable Co)
Form Factor: SFP (Small Form-Factor Pluggable)
Data Rate: 1.25 Gbps (1000BASE-BX)
Wavelength: Tx 1310nm / Rx 1490nm
Fibre Type: Single-Mode Fibre (SMF) 9/125µm
Connector Type: Simplex LC
DOM Support: Yes (Digital Diagnostics Monitoring)
Standards: IEEE 802.3ah 1000BASE-BX10-U, SFP MSA SFF-8472
Max Reach: Up to 10km (per datasheet, subject to fibre and link conditions)
Operating Temperature: 0 to 70°C (Commercial)

Alternate Part Codes

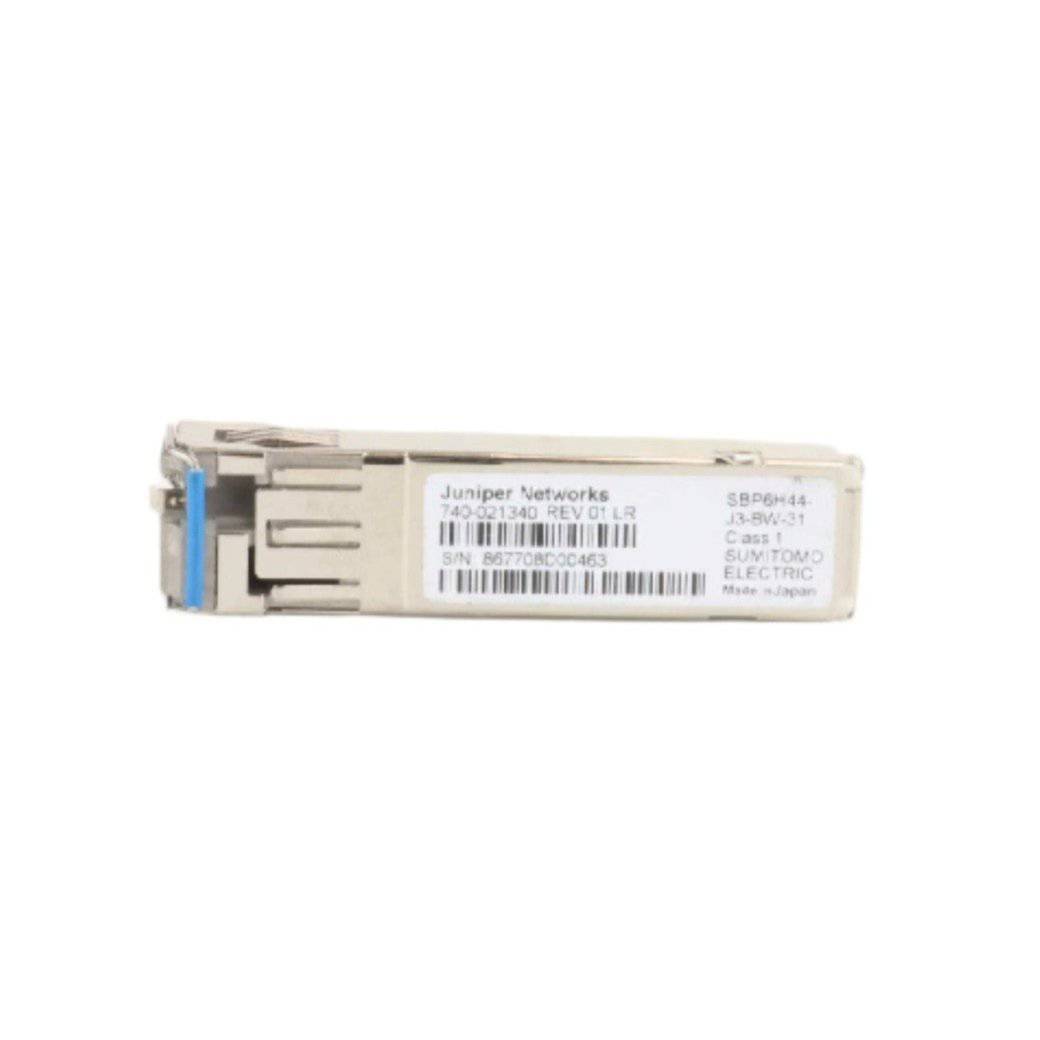

740-021340, SFP-GE10KT13R14

FAQs

Q: Will this work in place of the Juniper EX-SFP-GE10KT13R14?
A: Yes. The EX-SFP-GE10KT13R14-BCC is a direct plug-and-play replacement based on the same 1000BASE-BX10-U standard, SFP form factor, and 1.25 Gbps data rate. It delivers the same 1310nm Tx / 1490nm Rx wavelength pairing and 10km reach over single-mode fibre as the OEM part.

Q: Which Juniper platforms support this transceiver?
A: This transceiver is compatible with Juniper switches, routers, and network appliances that support Gigabit Ethernet SFP modules and list the EX-SFP-GE10KT13R14 or 1000BASE-BX10-U transceivers as supported optics. Consult your device's hardware compatibility matrix to confirm SFP slot support for BiDi optics.

Q: Why must this transceiver be used in pairs, and what happens if I pair it incorrectly?
A: This is an upstream transceiver (Tx 1310nm / Rx 1490nm) and requires a downstream counterpart (Tx 1490nm / Rx 1310nm) such as the EX-SFP-GE10KT14R13 to establish a bidirectional link. Pairing two upstream or two downstream transceivers will result in no communication, as both devices would transmit and receive on the same wavelengths with no compatible signal path.

Q: What fibre type and link budget does this transceiver require to reach 10km?
A: The transceiver requires single-mode fibre (SMF) 9/125µm. The 10km reach assumes standard OS1 or OS2 fibre with typical attenuation of 0.4 dB/km or lower. Actual distance depends on total link loss including fibre attenuation, connector loss, splice loss, and any inline components. The module provides sufficient optical power budget for 10km under typical deployment conditions.

Q: Can I monitor the optical link health, and what parameters are accessible via DOM?
A: Yes. The transceiver supports SFF-8472 Digital Diagnostics Monitoring, giving you real-time access to transmitted optical power, received optical power, module internal temperature, laser bias current, and supply voltage. These parameters are readable via standard network management tools or CLI commands on compatible Juniper platforms, enabling proactive fault detection and link performance analysis.
