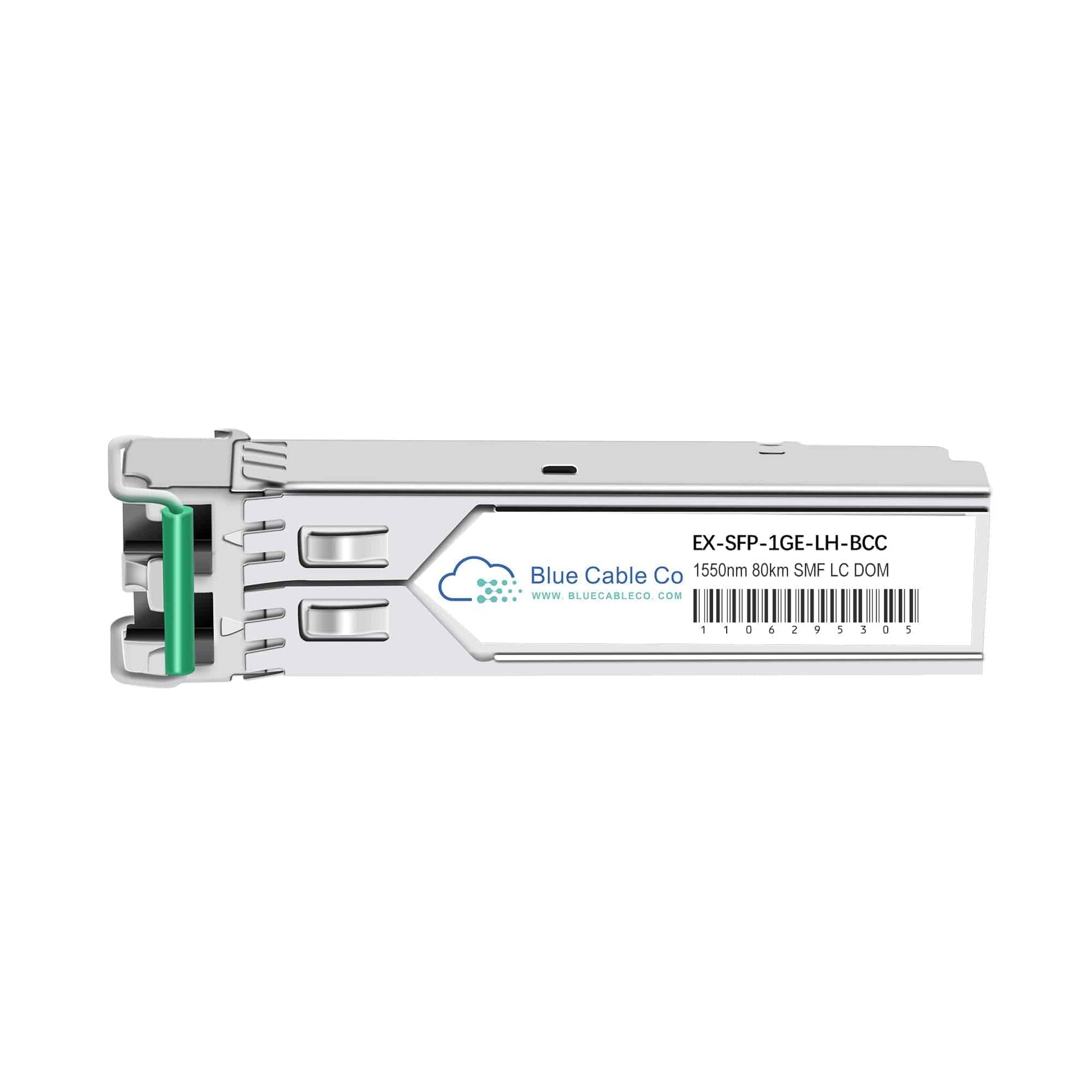

• Silver EX-SFP-1GE-LH-BCC Juniper compatible transceiver with green latch
1 1

Blue Cable Co

EX-SFP-1GE-LH-BCC | Juniper Compatible 1GB Single-Mode ZR - 70km (1000BASE-ZX)

EX-SFP-1GE-LH-BCC | Juniper Compatible 1GB Single-Mode ZR - 70km (1000BASE-ZX)

EX-SFP-1GE-LH-BCC

In stock:8

$124.30 AUD
$124.30 AUD
$124.30 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The EX-SFP-1GE-LH-BCC is a drop-in compatible replacement for the Juniper EX-SFP-1GE-LH. This SFP transceiver provides plug-and-play 1000BASE-ZX connectivity for Juniper switching and routing platforms with Gigabit Ethernet SFP ports. - Complies with IEEE 802.3z Gigabit Ethernet and SFP MSA standards, ensuring interoperability with standards-based equipment - 1550nm wavelength transmission over single-mode fibre delivers up to 70km reach with appropriate link budget - Hot-swappable SFP form factor with duplex LC connector for seamless installation and maintenance - Digital optical monitoring support provides real-time visibility of optical power, temperature, and voltage parameters - 1.25 Gbps data rate suitable for Gigabit Ethernet and 1G Fibre Channel applications over extended distance links

Features

• IEEE 802.3z compliance guarantees interoperability with standards-based Gigabit Ethernet equipment across multi-vendor network environments
• 1550nm extended wavelength transmission enables 70km single-mode fibre links with higher power budget than 1310nm alternatives, ideal for metro and campus backbone applications
• SFF-8472 digital diagnostics provide real-time monitoring of transmit power, receive power, laser bias current, supply voltage, and temperature for proactive link management
• Hot-swappable design allows field insertion and removal without system power-down, supporting maintenance windows and rapid fault isolation
• High transmit power and receiver sensitivity optimised for long-haul deployment; appropriate optical attenuation recommended for shorter links to prevent receiver overload
• 8b/10b encoding maintains DC balance and clock recovery over extended fibre spans, ensuring signal integrity at maximum rated distance

Warranty

5-Year Advanced Warranty on All Blue Cable Co® Products

Blue Cable Co® offers a comprehensive 5-Year Advanced Warranty on all our branded products. Our advanced warranty ensures fast, hassle-free replacements to keep your network running smoothly. If a fault occurs, we'll deliver a replacement part before you return the faulty itemminimising downtime and giving you complete peace of mind.

Choose Blue Cable Co® for reliable, high-quality network components backed by industry-leading warranty support.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Alternate Part Codes

FAQs

Compatible SFP Selector

Technical Specifications

Brand: Blue Cable Co
BCC SKU: EX-SFP-1GE-LH-BCC
Compatible Replacement For: EX-SFP-1GE-LH
Compatibility: Juniper compatible
Lab Testing: Tested in Sydney, Australia
Warranty: 5-year advanced hardware replacement (Blue Cable Co)
Form Factor: SFP
Data Rate: 1.25 Gbps (1000BASE-ZX)
Wavelength: 1550 nm
Fibre Type: Single-mode (SMF 9/125 micron)
Connector Type: Duplex LC
DOM Support: Yes (digital optical monitoring per SFF-8472)
Standards: IEEE 802.3z, 1000BASE-ZX, SFP MSA
Max Reach: Up to 70km (per datasheet, subject to fibre quality and link budget)
Operating Temperature: 0 to 70°C (commercial grade)

Alternate Part Codes

740-011612, SFP-1G-LH-C, SRX-SFP-1GE-LH

FAQs

Q: Will this work in place of the Juniper EX-SFP-1GE-LH?
A: Yes. The EX-SFP-1GE-LH-BCC provides identical 1000BASE-ZX functionality at 1.25 Gbps over single-mode fibre with 1550nm wavelength and duplex LC interface. It is plug-and-play compatible and meets the same SFP MSA and IEEE 802.3z specifications as the OEM module.

Q: Which Juniper platforms support this transceiver?
A: This SFP is compatible with Juniper switches, routers, and appliances that support Gigabit Ethernet SFP modules per the EX-SFP-1GE-LH specification. Compatibility is determined by SFP MSA compliance and platform support for 1000BASE-ZX optics; consult Juniper documentation or the hardware compatibility tool for your specific platform model.

Q: Why does this module use 1550nm wavelength instead of 1310nm?
A: The 1550nm wavelength exhibits lower attenuation in single-mode fibre compared to 1310nm, enabling reach up to 70km with adequate power budget. This makes 1000BASE-ZX suitable for metro area and long-haul campus links where 1000BASE-LX (1310nm, 10km) is insufficient. The higher transmit power at 1550nm requires attenuation on short links to prevent receiver saturation.

Q: What fibre type and quality is required for 70km operation?
A: Operation at 70km requires OS1 or OS2 single-mode fibre (9/125 micron) with low insertion loss and minimal splice/connector losses. Actual reach depends on total link loss budget: the module provides approximately 21 dB budget, so cumulative fibre attenuation, splice loss, and connector loss must remain within this margin. High-quality low-loss fibre and clean connectors are essential for maximum distance.

Q: Can I mix this transceiver with 1310nm optics on the same switch?
A: Yes, provided each link uses matching wavelength optics at both ends. Juniper platforms support mixed deployment of 1000BASE-SX, 1000BASE-LX, and 1000BASE-ZX on a per-port basis. Each fibre link is independent, so you can deploy 1550nm modules for long reach and 1310nm modules for shorter links simultaneously, as long as both ends of each link use the same wavelength and fibre type.
