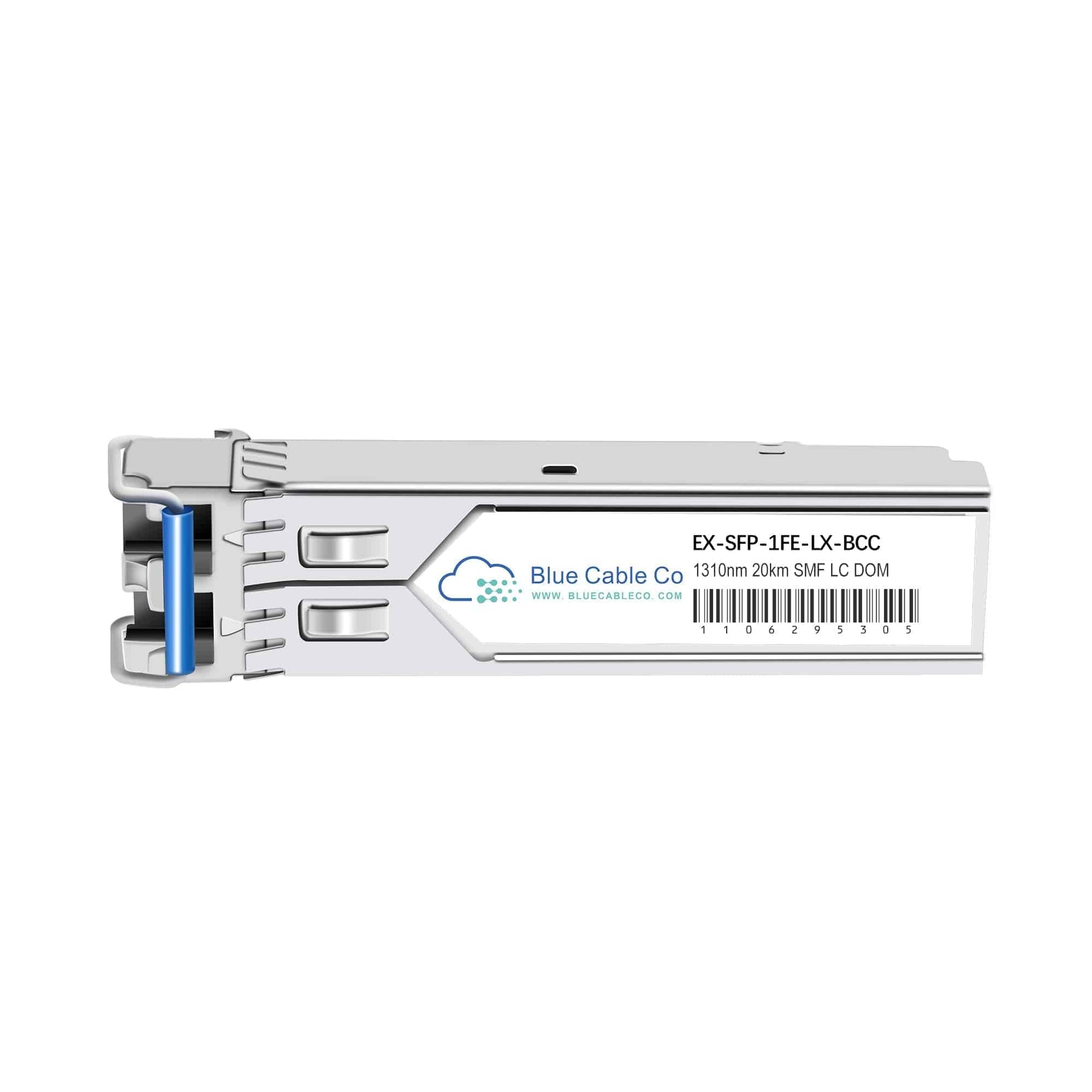

• Juniper compatible EX-SFP-1FE-LX-BCC silver SFP module with blue connector
1 1

Blue Cable Co

EX-SFP-1FE-LX-BCC | Juniper Compatible 100MB Single-Mode - 10km (100BASE-LX)

EX-SFP-1FE-LX-BCC | Juniper Compatible 100MB Single-Mode - 10km (100BASE-LX)

EX-SFP-1FE-LX-BCC

In stock:4

$54.67 AUD
$54.67 AUD
$54.67 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The EX-SFP-1FE-LX-BCC is a drop-in compatible replacement for the Juniper EX-SFP-1FE-LX. This transceiver delivers plug-and-play 100Base-LX connectivity for Juniper platforms with SFP ports that support Fast Ethernet over single-mode fibre. - 100BASE-LX standard compliance guarantees interoperability with IEEE 802.3 Fast Ethernet infrastructure over single-mode fibre links - SFP form factor transceiver operating at 100 Mbps data rate over single-mode fibre at 1310nm wavelength with LC duplex connector - Supports link distances up to 10km over 9/125 micron single-mode fibre - Digital Optical Monitoring (DOM) support provides real-time access to temperature, voltage, transmit power, receive power, and laser bias current via SFF-8472 compliant interfaces - Hot-swappable design enables installation and replacement without network downtime or host system power cycling - MSA compliant for seamless integration with other standards-based SFP transceivers in mixed-vendor deployments

Features

• 100BASE-LX and SFP MSA compliance ensures the transceiver initializes correctly in Juniper platforms and interoperates with IEEE 802.3-compliant Fast Ethernet equipment at the far end, regardless of vendor
• 1310nm single-mode laser transmitter paired with PIN photodiode receiver optimized for 9/125 micron single-mode fibre with transmission distances up to 10km, subject to fibre quality and insertion loss budget
• Digital Diagnostic Monitoring via SFF-8472 provides access to five real-time parameters (temperature, supply voltage, transmit optical power, receive optical power, laser bias current) through I2C interface for proactive link health monitoring and troubleshooting
• Hot-swappable operation allows field installation and replacement without powering down the host platform or disrupting adjacent active links in the same chassis
• Standard commercial temperature range (0 to 70 degrees C) suits data centre, enterprise campus, and indoor telecom equipment room deployments
• Class 1 laser safety rating per IEC-60825 with duplex LC optical interface for straightforward cabling and port density in SFP cages

Warranty

5-Year Advanced Warranty on All Blue Cable Co® Products

Blue Cable Co® offers a comprehensive 5-Year Advanced Warranty on all our branded products. Our advanced warranty ensures fast, hassle-free replacements to keep your network running smoothly. If a fault occurs, we'll deliver a replacement part before you return the faulty itemminimising downtime and giving you complete peace of mind.

Choose Blue Cable Co® for reliable, high-quality network components backed by industry-leading warranty support.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Alternate Part Codes

FAQs

Compatible SFP Selector

Technical Specifications

Brand: Blue Cable Co
BCC SKU: EX-SFP-1FE-LX-BCC
Compatible Replacement For: EX-SFP-1FE-LX
Compatibility: Juniper compatible
Lab Testing: Tested in Sydney, Australia
Warranty: 5-year advanced hardware replacement (Blue Cable Co)
Form Factor: SFP
Data Rate: 100 Mbps
Wavelength: 1310nm
Fibre Type: Single-mode (9/125 micron)
Connector Type: Duplex LC
DOM Support: Yes (SFF-8472 compliant)
Standards: 100BASE-LX, IEEE 802.3, SFP MSA
Max Reach: Up to 10km (per datasheet, subject to fibre and link conditions)
Operating Temperature: 0 to 70 degrees C

Alternate Part Codes

740-028307

FAQs

Q: Will this work in place of the Juniper EX-SFP-1FE-LX?
A: Yes. The EX-SFP-1FE-LX-BCC is designed as a direct replacement for the Juniper EX-SFP-1FE-LX. It delivers 100BASE-LX throughput over the same SFP form factor, operates at 1310nm over single-mode fibre to 10km, and is plug-and-play compatible with Juniper equipment that accepts the original module.

Q: Which Juniper platforms support this transceiver?
A: This transceiver works in any Juniper platform with SFP ports that support 100 Mbps Fast Ethernet operation, including EX Series switches with Fast Ethernet SFP capability and MX Series routers that accept 100BASE-LX SFP modules. Verify your specific model supports 100BASE operation in SFP slots via Juniper documentation.

Q: What fibre type and distance does this module support?
A: The transceiver is specified for 9/125 micron single-mode fibre with a maximum reach of 10km. Actual distance depends on fibre quality, number of splices, connector insertion loss, and total link budget. It is not designed for multimode fibre at the 10km distance.

Q: How do I access the DOM parameters on this transceiver?
A: The module implements SFF-8472 Digital Diagnostic Monitoring accessible via the I2C interface in the SFP connector. On Juniper platforms, use CLI commands such as 'show interfaces diagnostics optics' to retrieve real-time temperature, voltage, transmit power, receive power, and laser bias current. Verify your Junos version supports DOM display for the specific interface.

Q: Can I mix this transceiver with OEM Juniper SFPs in the same switch?
A: Yes. The transceiver is MSA compliant and can be mixed with original Juniper or other third-party MSA-compliant SFP modules in the same chassis without compatibility issues. MSA compliance ensures consistent electrical and mechanical interfaces across vendors.
