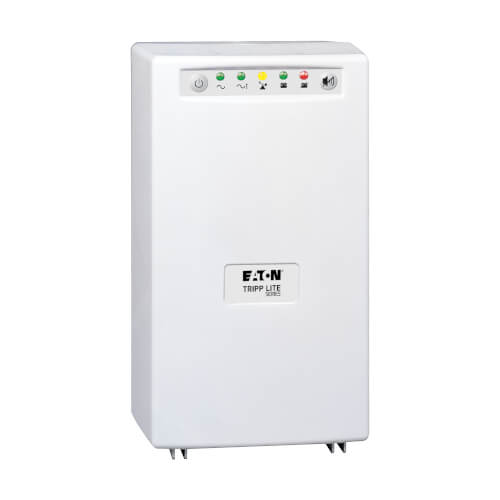

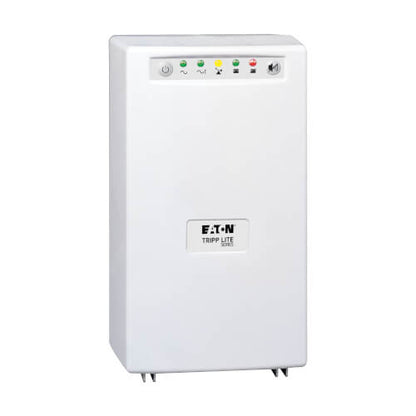

Eaton Tripp Lite SMX1200XLHG Medical-Grade UPS, 1kVA 750W, 230V, 6 x C13, Full Isolation, Extended Runtime

Eaton Tripp Lite SMX1200XLHG Medical-Grade UPS, 1kVA 750W, 230V, 6 x C13, Full Isolation, Extended Runtime

SMX1200XLHG

Stock Status: Enquire

$0.00 AUD
$0.00 AUD
$0.00 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The Eaton Tripp Lite SMX1200XLHG is a medical-grade, line-interactive UPS designed for dependable backup power in patient-care vicinities when plugged into a hospital-grade outlet. It provides 1kVA / 750W capacity with full isolation via an integrated isolation transformer and Faraday shield, helping reduce common mode noise while maintaining surge protection in all modes.

Automatic voltage regulation (AVR) corrects brownouts and overvoltages without using battery, keeping connected equipment running through unstable mains power. A quiet alarm mode, clear front-panel status LEDs, and USB/DB9 monitoring with PowerAlert software support safe, unattended shutdown during extended outages.

Need more runtime? This model supports external battery packs for extended runtime, making it suitable for longer power interruptions where you need extra time to ride through or shut down cleanly.

Features

• Medical-grade UPS for patient-care vicinities when used with a hospital-grade outlet (UL 60601-1)
• Full isolation via built-in isolation transformer with Faraday shield, reduces common mode noise
• 1kVA / 750W line-interactive protection with AVR, corrects 155V to 274V without battery drain
• 6 x hospital-grade IEC C13 outlets, all with battery backup and 340J surge protection
• Quiet-friendly alarm mute/quiet mode and clear front-panel status LEDs
• USB and DB9 monitoring with included PowerAlert software for unattended shutdown
• Hot-swappable battery design, replacement cartridge RBC36SLT
• Expandable runtime support with optional external battery packs

Warranty

2-year limited warranty

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

Model: SMX1200XLHG
Topology: Line-interactive UPS
Capacity: 1000VA (1kVA), 750W (0.75kW)
Input Voltage: 230V AC (single-phase)
Input Voltage Range (AVR): 155V to 274V AC
Output Voltage: 230V nominal (supports 220V / 230V / 240V)
Output Frequency: 50/60 Hz (auto sensing)
Output Waveform (battery mode): PWM sine wave
Transfer Time: 2 to 4 ms

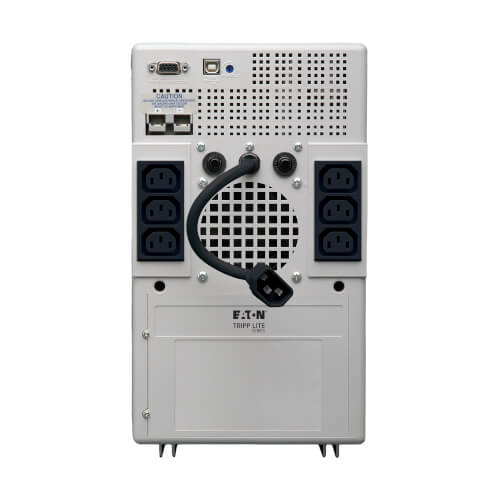

Outlets: 6 x IEC C13 (hospital-grade), battery + surge protected
Input Connection: IEC C14 inlet, hospital-grade C14 plug on 0.2 m dongle
Surge Protection: 340 joules, EMI/RFI noise filtering

Battery Type: VRLA (valve regulated lead acid)
Runtime (half load 375W): up to 27.5 minutes
Runtime (full load 750W): up to 11 minutes
Recharge Time: <4.5 hours (10% to 90%)
Hot-swap Battery: Yes (battery access door)
Replacement Battery Cartridge: RBC36SLT
DC System Voltage: 36V DC
Expandable Runtime: Yes
External Battery Pack Support: BP36V15-2U (limit 1), BP36V42-3U (multi-pack), BP36V27-2US (multi-pack)

Communications: USB and DB9 serial
Indicators/Controls: 5 LEDs, audible alarm with mute/quiet control
Cooling: Rear-exit fan

Dimensions (W x H x D): 191 x 323 x 231 mm
Unit Weight: 20.64 kg
Operating Temp: 0°C to 40°C
Certifications/Compliance: UL 60601-1; RoHS; CE; EN60601-1-2:2015 (4th Edition)
Warranty: 2-year limited warranty
In the box: UPS, USB cable (1.8 m), DB

FAQs

Q1: Is this UPS suitable for use in patient-care areas?
A1: Yes, the SMX1200XLHG is designed for healthcare environments and is UL 60601-1 compliant when plugged into a hospital-grade outlet.

Q2: What outlets does it provide?
A2: It provides 6 x IEC C13 hospital-grade outlets. All outlets provide both battery backup and surge protection.

Q3: How long will it run during a blackout?
A3: Runtime depends on load. It supports up to 27.5 minutes at half load (375W) and up to 11 minutes at full load (750W).

Q4: Can I increase runtime beyond the internal battery?
A4: Yes. It supports external battery packs for extended runtime, including BP36V15-2U (limit 1) and BP36V42-3U or BP36V27-2US (multi-pack compatible).

Q5: Does it include a power cord and how do I monitor it?
A5: A mains power cord is not supplied. The UPS uses an IEC C14 input. For monitoring and safe shutdown, it includes USB and DB9 connections plus PowerAlert software (USB and serial cables are included).
