• White Eaton Tripp Lite 503c surge protector with indicator lights shown on the back side of medical-grade UPS 230V 700VA unit

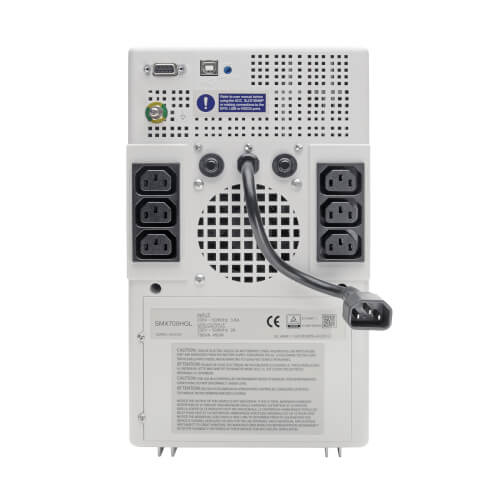

  • White plastic back side of Eaton Tripp Lite SmartPro SMX700HGL medical-grade UPS with six black C13 power outlets and ventilation grille
1 2

Eaton

Eaton Tripp Lite SmartPro SMX700HGL | Medical-Grade UPS 230V 700VA 450W | Lithium (LiFePO4) | 6 x C13 | Full Isolation

Eaton Tripp Lite SmartPro SMX700HGL | Medical-Grade UPS 230V 700VA 450W | Lithium (LiFePO4) | 6 x C13 | Full Isolation

SMX700HGL

Stock Status: Enquire

$2,377.09 AUD
$2,377.09 AUD
$2,377.09 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

SMX700HGL is a 230V, medical-grade line-interactive UPS designed for use in medical facilities, including patient care vicinities, when connected to an appropriate hospital-grade outlet. It provides reliable battery backup, automatic voltage regulation (AVR) and full isolation for sensitive equipment.

Unlike traditional UPS models that use sealed lead-acid batteries, the SMX700HGL uses a replaceable lithium iron phosphate (LiFePO4) battery designed for very high cycle life. AVR corrects brownouts and overvoltages without consuming battery, and the built-in isolation transformer with Faraday shield helps remove common mode noise while maintaining surge suppression.

  • Capacity: 700VA / 450W
  • Battery: LiFePO4 (lithium iron phosphate), replaceable cartridge
  • Outlets: 6 x IEC C13 hospital-grade outlets (battery backup + surge protection)
  • Isolation: built-in isolation transformer with Faraday shield (full isolation)
  • Monitoring: USB + DB9 serial, supports unattended shutdown with PowerAlert
  • Voltage correction: AVR input range 155V to 274V

Note: This model does not support external runtime expansion packs. Use runtime figures as a guide only, actual runtime varies based on load and conditions.

Features

• Medical-grade 230V line-interactive UPS for use in medical facilities, including patient care vicinities (when connected appropriately)
• LiFePO4 battery technology designed for very high cycle life, replaceable battery cartridge (RBC53L)
• 700VA / 450W capacity with AVR, corrects input from 155V to 274V without using battery
• Built-in isolation transformer with Faraday shield for full isolation and common mode noise reduction
• 6 x hospital-grade IEC C13 outlets, all with battery backup plus 340J surge protection
• USB and DB9 serial monitoring with PowerAlert support for unattended shutdown
• Fast transfer time (5 ms) and cold-start support

Warranty

2-year limited warranty

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Replacement Battery Finder

Technical Specifications

Part Number: SMX700HGL
UPS Type: Line-Interactive (AVR)

Capacity:
- 700VA / 450W

Input:
- Nominal Input Voltage: 230V AC
- Input Phase: Single-phase
- Input Connection Type: C14 inlet
- Input Cord Length: 0.2 m
- Rated Input Current (max load): 3.6A
- Maximum Input Amps: 4A
- Recommended Electrical Service: 10A 230V

Output:
- Nominal Output Voltage Supported: 220V / 230V / 240V
- Frequency: 50 / 60 Hz (automatic selection)
- Output Voltage Regulation (line mode): -18%, +8%
- Output Waveform (battery mode): PWM sine wave
- Outlets: 6 x IEC C13 (hospital-grade)

Battery:
- Battery Type: Lithium-ion (LiFePO4)
- Runtime (full load 450W): 14.5 minutes
- Runtime (half load 225W): 36 minutes
- DC System Voltage: 36V DC
- Recharge Rate: less than 3.6 hours (10% to 90%, typical after full load discharge)
- Battery Access: battery access door supports hot-swap replacement
- Replacement Battery Cartridge: RBC53L
- Expandable Runtime: No
- Typical Battery Lifespan: 3 to 6 years (usage dependent)

Voltage Regulation (AVR):
- Input voltage range: 155V to 274V AC
- Overvoltage correction: 206V to 245V reduced by 9%
- Undervoltage correction: 183V to 199V boosted by 10%
- Severe undervoltage correction: 155V to 182V boosted by 21%

Surge / Noise Suppression:
- EMI/RFI Noise Suppression: Yes
- Surge Suppression: 340 joules
- Response Time: Instantaneous

Transfer:
- Transfer Time: 5 milliseconds
- Low voltage transfer to battery: 155V
- High voltage transfer to battery: 274V
- Cold Start: Supported

Physical:
- Form Factor: Tower
- Cooling: rear-exit fan
- Dimensions (W x H x D): 191 x 325 x 229 mm
- Unit Weight: 19.10 kg
- Shipping Weight: 15.88 kg
- Housing Material: PVC

Communications:
- Interfaces: USB, DB9 Serial
- Network Management Card: Not supported

Compliance:
- Certifications: UL 60601-1
- Compliance: RoHS, CE

Warranty:
- 5-year limited warranty (international)

In the box:
- SMX700HGL UPS (tower)
- USB monitoring cable, 1.8 m
- DB9 serial monitoring cable, 1.8 m
- Owner’s manual

FAQs

Q1: What makes the SMX700HGL different from standard UPS models?
A1: It is a medical-grade UPS with full isolation (isolation transformer with Faraday shield) and it uses a LiFePO4 lithium battery rather than traditional sealed lead-acid.

Q2: How many outlets does it have and what type are they?
A2: It has 6 x IEC C13 hospital-grade outlets. All outlets provide battery backup and surge protection.

Q3: What is the runtime during an outage?
A3: Runtime depends on load. Typical figures are 36 minutes at half load (225W) and 14.5 minutes at full load (450W).

Q4: Can I add external battery packs to extend runtime?
A4: No. This model does not support expandable runtime via external battery packs.

Q5: How do I monitor the UPS and automate shutdown?
A5: It includes USB and DB9 serial connections and supports PowerAlert software for unattended system shutdown during extended outages.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Replacement Battery Finder

Looking for an Eaton UPS replacement battery?

Use the official Eaton UPS Battery Finder tool to identify compatible battery replacement kits and genuine Eaton battery cartridges for your specific UPS model in Australia.

Find My Replacement Battery
