Eaton

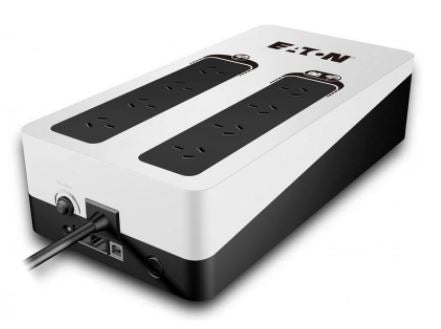

Eaton PW85066 | 3S 600VA 360W Power Board Style Standby UPS

Eaton PW85066 | 3S 600VA 360W Power Board Style Standby UPS

PW85066

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The Eaton 3S 600VA Standby UPS delivers reliable battery backup in a power board form factor, making it ideal for small business workstations, POS systems, and home office equipment across Australia. With 600VA/360W of capacity, it protects connected devices from power outages, surges, and voltage fluctuations, keeping critical equipment running long enough for a safe shutdown.

The power board style design provides multiple protected outlets in a compact, easy-to-deploy form that fits under or beside a desk without the bulk of a traditional tower UPS. Compatible with a wide range of IT and office equipment, the Eaton 3S is a cost-effective entry-level UPS solution for SMB and retail environments. Available now at iptrading.com.au — competitive prices and local support.

Features

- Standby (offline) UPS topology provides cost-effective battery backup for essential office and retail equipment
- Power board form factor allows discreet, space-saving deployment under or beside a desk
- Surge protection on all outlets safeguards connected devices from voltage spikes and line noise
- USB communication port enables automatic graceful PC shutdown via compatible UPS management software
- Internal sealed lead-acid battery — no external battery module required
- Compatible with Australian 230V mains and features Australian-style power outlets
- Audible alarms and LED indicators provide at-a-glance UPS status and battery condition monitoring
- Eaton 3S series — trusted entry-level UPS range widely deployed in SMB, retail, and home office environments

Warranty

• Standard UPS (with VRLA batteries): 2–3 year warranty
• Lithium-ion UPS (up to 3kVA): 5-year warranty
Extended Warranty Options:
Extended Eaton UPS warranties are available through IP Trading. Contact us to discuss a plan that suits your power protection needs.
https://www.eaton.com/us/en-us/catalog/services/ups-services/understanding-your-eaton-ups-warranty-.html

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Capacity: 600VA / 360W
- UPS Type: Standby (Offline)
- Form Factor: Power board style
- Input Voltage: 230V AC (Australian mains compatible)
- Output Voltage: 230V AC
- Waveform: Simulated sine wave (on battery)
- Battery Type: Sealed lead-acid (internal)
- Typical Backup Time: ~5–10 minutes at full load (varies by load)
- Outlets: Multiple protected Australian-style power sockets
- Surge Protection: Included on all outlets
- Connectivity: USB port for automatic shutdown communication
- Operating Temperature: 0–40°C

FAQs

Q: What is the difference between a standby UPS and a line-interactive UPS?
A: A standby UPS like the Eaton 3S remains in bypass mode under normal conditions and switches to battery power when an outage or significant voltage event is detected. This makes it cost-effective for basic protection. A line-interactive UPS additionally includes automatic voltage regulation (AVR) to handle minor voltage fluctuations without switching to battery, making it better suited to environments with unstable mains power.

Q: How many devices can I connect to the Eaton 3S 600VA?
A: The 3S 600VA provides multiple protected power board outlets. You can connect devices up to a combined load of 360W / 600VA. Typical use cases include a desktop PC, monitor, and basic networking equipment, or a POS terminal with peripherals.

Q: Does the Eaton 3S 600VA include software for automatic PC shutdown?
A: Yes, the 3S includes a USB communication port that connects to your computer. Eaton's Intelligent Power Software (IPS) or compatible UPS management software can be installed to monitor the UPS status and trigger an automatic graceful shutdown of your system when the battery reaches a low threshold during an outage.

Q: Is this UPS compatible with Australian power sockets and 230V mains?
A: Yes. The Eaton 3S 600VA is designed for the Australian 230V AC mains environment and features Australian-style power outlets, making it ready to deploy out of the box without any adapters.

Q: Can I purchase the Eaton PW85066 in Australia with local support?
A: Yes. IP Trading (iptrading.com.au) is an Australian B2B IT hardware reseller offering the Eaton 3S 600VA at competitive prices with local support. Orders are fulfilled from Australian stock with prompt dispatch for business customers.

Q: What types of equipment is the Eaton 3S 600VA best suited for?
A: The 3S 600VA is ideal for protecting small office workstations, POS terminals, network switches, routers, CCTV DVRs, and home office setups where space is limited and basic battery backup plus surge protection is required. For servers or sensitive equipment requiring pure sine wave output, a higher-tier line-interactive or online UPS is recommended.
