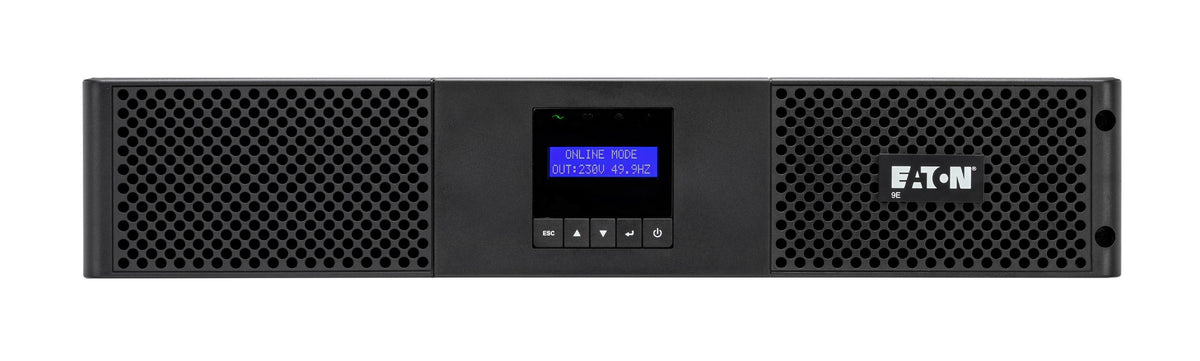

Eaton 9E3000IR | 9E Rack UPS, 3000VA, 2700W, Online, 2U, C20 Input

Authorised Eaton Partner

SKU:9E3000IR

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Eaton 9E 3000VA online double-conversion rack UPS delivers 2700W of continuously conditioned power in a 2U rack-mount chassis. This 3000VA model uses a C20 input and provides seven outlets (6x C13 and 1x C19), suiting servers, network switches and storage in server rooms and comms cabinets that need clean, regulated power.

Double-conversion technology regulates voltage and frequency at all times, protecting connected equipment from surges, sags and noise. A multilingual LCD control panel, USB and serial interfaces and remote power off (RPO) simplify local monitoring and control, while the Intelligent Power slot accepts an optional network management card. Runtime can be extended with additional battery packs, and the rack-mount kit with rails and brackets is included.

Features

- Online double-conversion technology that regulates voltage and frequency
- Multilingual LCD control panel for status and configuration
- USB and serial interfaces plus remote power off (RPO)
- Intelligent Power slot for an optional network management card
- Rack-mount kit with rails and brackets included
- Runtime scalable with additional battery packs

Warranty

• Standard UPS (with VRLA batteries): 2–3 year warranty
• Lithium-ion UPS (up to 3kVA): 5-year warranty
Extended Warranty Options:
Extended Eaton UPS warranties are available through IP Trading. Contact us to discuss a plan that suits your power protection needs.
https://www.eaton.com/us/en-us/catalog/services/ups-services/understanding-your-eaton-ups-warranty-.html

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Capacity: 3000 VA / 2700 W
- Topology: Online double-conversion
- Form factor: Rack mount, 2U
- Input connection: IEC 320 C20
- Outputs: 6 x IEC 320 C13, 1 x IEC 320 C19 (7 outlets)
- Voltage: 230 V
- Display: Multilingual LCD control panel
- Interfaces: USB, serial, RPO, Intelligent Power slot
- Dimensions (W x H x D): 438 x 87 x 608 mm
- Weight: 31.3 kg
- Rack-mount kit with rails and brackets included
- Expandable with additional battery packs (EBM)

FAQs

Q: What type of UPS is the Eaton 9E3000IR?
A: It is an online double-conversion UPS rated 3000VA / 2700W, which continuously conditions voltage and frequency for connected equipment.

Q: What outlets and input does this model have?
A: It has an IEC C20 input and seven outputs: six IEC C13 and one IEC C19.

Q: Is the rack-mount kit included?
A: Yes. A rack-mount kit with rails and brackets is included for 2U installation.

Q: Can I extend the runtime?
A: Yes. Runtime can be extended by adding compatible Eaton 9E extended battery modules (EBM).

Q: Can this UPS be managed over a network?
A: The Intelligent Power slot accepts an optional network management card for remote monitoring. USB and serial ports are built in.

Q: What input voltage does this version support?
A: This is the 230 V version, with a C20 inlet.
