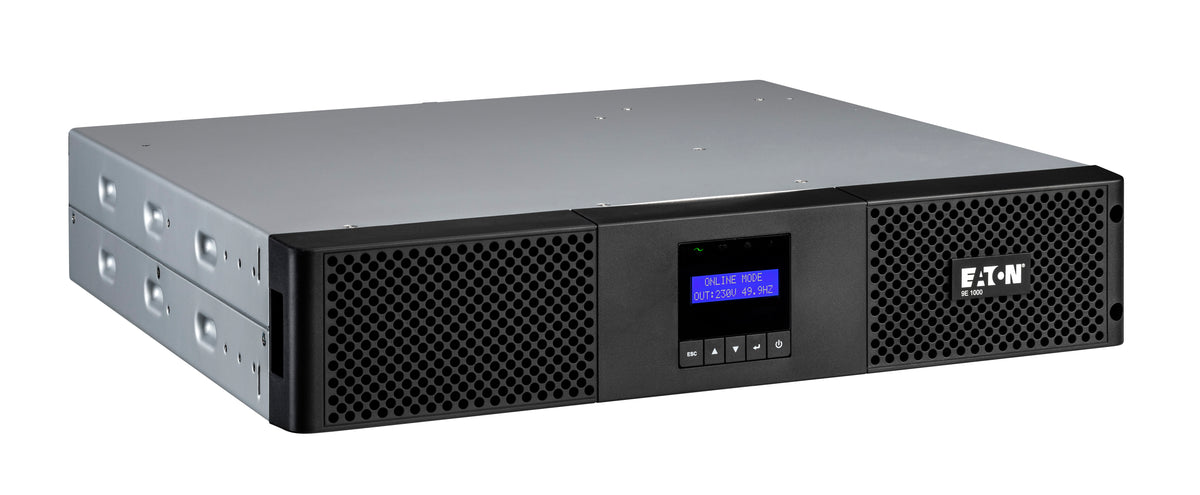

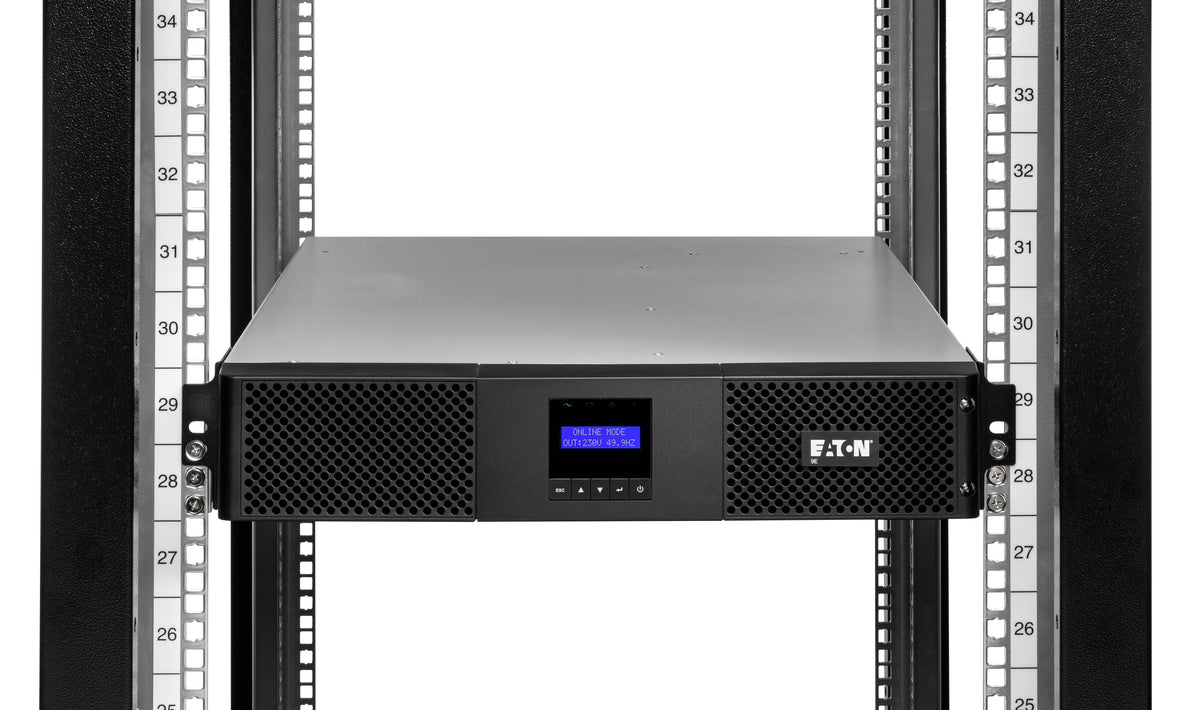

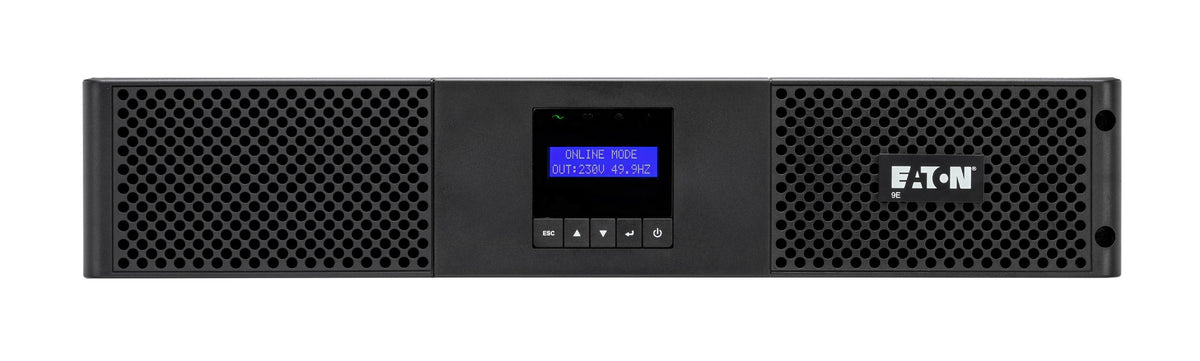

Eaton 9E1000IR | 9E Online Double-Conversion Rack UPS, 1000VA, 900W, 2U

Eaton 9E1000IR | 9E Online Double-Conversion Rack UPS, 1000VA, 900W, 2U

9E1000IR

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Eaton 9E 1000VA Rack UPS delivers online double-conversion power protection in a compact 2U rackmount enclosure, making it an ideal choice for small server rooms, edge deployments, and critical IT infrastructure requiring zero transfer time and continuous power conditioning. With 900W of output capacity, four IEC C13 outlets, and a 0.9 power factor, this unit efficiently protects servers, networking gear, and storage systems from all power disturbances including surges, sags, and complete outages.

The 9E 1000IR includes both USB and RS232 serial communication ports, an internal automatic bypass for fault-safe operation, and a hot-swappable battery accessible from the front panel without removing the unit from the rack. An optional management card slot supports Network-M3 and INDGW-M2 cards for full remote monitoring, and the UPS integrates with Eaton Intelligent Power Manager (IPM) and virtual environments including VMware and Hyper-V. All rack-mounting hardware is included in the box. Order now at iptrading.com.au — trusted by Australian IT professionals.

Features

- Online double-conversion topology provides zero transfer time and continuous power conditioning — no switching delay on mains failure
- Internal automatic bypass maintains power to connected equipment in the event of an internal UPS fault
- Hot-swappable batteries accessible from the front panel — no need to remove the unit from the rack during replacement
- Multilingual LCD display for real-time status monitoring of load, battery, and input/output conditions
- Temperature-compensated battery charging, automatic battery self-test, and deep discharge protection extend battery life
- Optional management card slot supports Network-M3 (SNMP/web), INDGW-M2, and Relay-MS cards for remote monitoring and control
- USB (HID-compliant) and RS232 serial ports included for direct UPS-to-host communication
- RPO (Remote Power Off) connector supports data centre emergency power-off procedures
- Compatible with Eaton Intelligent Power Manager (IPM) and major virtualisation platforms including VMware and Hyper-V
- Input power factor correction (PFC) reduces harmonic distortion and improves generator compatibility
- All 19-inch rack-mounting accessories and hardware included in the box
- CE and TUV certified — meets IEC/EN 62040-1 and IEC/EN 62040-2 safety and EMC standards

Warranty

• Standard UPS (with VRLA batteries): 2–3 year warranty
• Lithium-ion UPS (up to 3kVA): 5-year warranty
Extended Warranty Options:
Extended Eaton UPS warranties are available through IP Trading. Contact us to discuss a plan that suits your power protection needs.
https://www.eaton.com/us/en-us/catalog/services/ups-services/understanding-your-eaton-ups-warranty-.html

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Topology: Online Double-Conversion with Automatic Bypass
- Power Rating: 1000 VA / 900 W
- Output Power Factor: 0.9
- Input Connection: IEC C14
- Output Outlets: 4 x IEC C13 (10A)
- Input Nominal Voltage: 220 / 230 / 240V (default 230V)
- Input Frequency Range: 40–70 Hz
- Output Voltage: 220 / 230 / 240V ±2%, Pure Sine Wave
- Battery: 36 Vdc — 3 x 12V / 7Ah sealed lead-acid (replaceable)
- Form Factor: 2U Rack (19-inch)
- Dimensions (W×H×D): 438 × 86.5 × 438 mm
- Weight: 17.6 kg
- Communication Ports: 1 x USB (HID-compliant) + 1 x RS232 Serial
- Management Card Slot: 1 x optional (Network-M3, INDGW-M2, or Relay-MS)
- RPO (Remote Power Off) Connector: Yes
- Noise Level: <40 dB at 1 metre
- Certifications: IEC/EN 62040-1, IEC/EN 62040-2, CE, TUV

FAQs

Q: What is the difference between online double-conversion and line-interactive UPS topology?
A: An online double-conversion UPS like the Eaton 9E 1000IR continuously converts incoming AC power to DC and back to AC, meaning connected equipment always runs from the UPS inverter — there is zero transfer time on mains failure. Line-interactive UPS units switch to battery only when a fault is detected, introducing a brief transfer delay. Online double-conversion also provides tighter voltage regulation and is preferred for servers, networking equipment, and other sensitive loads.

Q: Can I add network monitoring capabilities to the Eaton 9E 1000IR?
A: Yes. The 9E 1000IR includes a dedicated management card slot that accepts Eaton's optional Network-M3 card (SNMP, web-based monitoring, and email alerts), the INDGW-M2 industrial gateway card, or the Relay-MS contact closure card. USB and RS232 serial ports are built in and work with Eaton's Intelligent Power Manager (IPM) software out of the box.

Q: How do I replace the batteries in the Eaton 9E 1000IR without downtime?
A: The 9E 1000IR features front-panel battery access. Replacement batteries can be swapped while the UPS remains in the rack and continues to supply power via its internal automatic bypass, minimising disruption to connected equipment. No tools or rack removal are required for a standard battery replacement.

Q: Is the Eaton 9E 1000IR compatible with virtualisation environments?
A: Yes. The UPS integrates with Eaton Intelligent Power Manager (IPM), which supports graceful shutdown orchestration for VMware vSphere, Microsoft Hyper-V, Citrix Hypervisor, and other major virtualisation platforms. When connected via USB or RS232, the host system receives power event notifications and can trigger automated guest VM shutdown sequences before battery is exhausted.

Q: What output outlets does the Eaton 9E 1000IR provide, and are they suitable for Australian equipment?
A: The 9E 1000IR provides four IEC C13 (10A) output sockets, which are the standard international rack power outlets used by most servers, switches, and network appliances. Australian equipment with IEC C14 power cords will connect directly. For devices with Australian 3-pin plugs, a standard IEC C13-to-AU adapter or power cable is required.

Q: Can I purchase the Eaton 9E 1000IR in Australia, and what support is available?
A: Yes. The Eaton 9E 1000IR (SKU: 9E1000IR) is available to order now through iptrading.com.au — a trusted Australian B2B IT hardware reseller. IP Trading serves IT professionals, systems integrators, and enterprise procurement teams across Australia with competitive pricing and reliable fulfilment.
