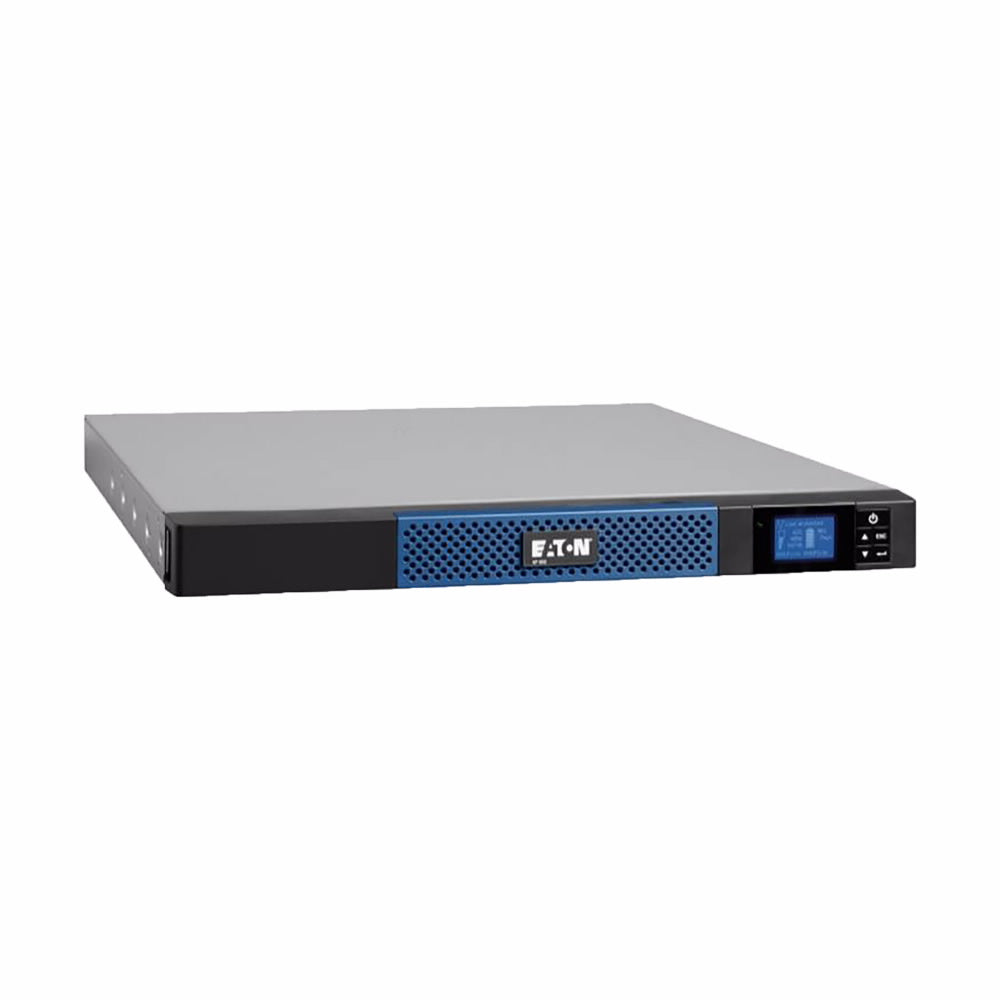

• Eaton 5P1550GR-L black and blue rackmount UPS power supply with display
1 1

Eaton

Eaton 5P1550GR-L | 5P Lithium-ion 1U Rack UPS, 1550VA, 1100W, 6x C13

Eaton 5P1550GR-L | 5P Lithium-ion 1U Rack UPS, 1550VA, 1100W, 6x C13

Authorised Eaton Partner

5P1550GR-L

$2,624.98 inc. GST
$2,386.35 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

In stock:2

Description

The Eaton 5P1550GR-L is a 1U line-interactive rackmount UPS rated 1550VA / 1100W, built on lithium-ion battery technology for network and IT equipment racks. It delivers pure sine wave output at 230V default from six C13 outlets, with a graphical LCD for at-a-glance status and configuration.

An integrated battery management system handles temperature regulation and life cycle monitoring, and the user-replaceable battery simplifies maintenance. RS-232 (RJ45) and USB (HID) ports are standard, with one slot for an optional Gigabit Network-M3 card for remote management. The UPS works with Eaton Intelligent Power Manager software and ships with a rack mounting kit.

Features

- Lithium-ion battery chemistry with integrated battery management system
- Pure sine wave output for sensitive IT equipment
- Automatic voltage regulation (AVR)
- Auto shutdown function
- Graphical LCD display
- Rack mounting kit included, with rackmount or wallmount flexibility
- Optional Gigabit Network-M3 card for remote management
- Eaton Intelligent Power Manager software compatibility
- Potential free switch contact

Warranty

• Standard UPS (with VRLA batteries): 2–3 year warranty
• Lithium-ion UPS (up to 3kVA): 5-year warranty
Extended Warranty Options:
Extended Eaton UPS warranties are available through IP Trading. Contact us to discuss a plan that suits your power protection needs.
https://www.eaton.com/us/en-us/catalog/services/ups-services/understanding-your-eaton-ups-warranty-.html

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Replacement Battery Finder

Technical Specifications

- Rating: 1550 VA / 1100 W
- Topology: line-interactive, pure sine wave output
- Form factor: 1U rackmount (19 inch)
- Input connection: 1 x C14
- Output: 6 x C13 outlets
- Nominal output voltage: 230 V default (200/208/220/230/240 V)
- Input voltage range: 160-294 V (adjustable to 150-294 V)
- Battery: lithium-ion, user replaceable, integrated BMS
- Runtime: 11 min at half load, 4 min at full load
- Efficiency at max. load: 97%
- Communication: RS-232 (RJ45) and USB (HID)
- Expansion: one slot for optional Network-M3 card (not included)
- Display: graphical LCD
- Operating temperature: 0 to 40 C
- Dimensions: approx. 438 x 554 x 43 mm
- Weight: approx. 16.3 kg
- Certifications: UL 1778, cULus Listed, CE Marked, RoHS Compliant

FAQs

Q: What is the load capacity of the Eaton 5P1550GR-L?
A: It is rated at 1550 VA / 1100 W with an output power factor of 0.7.

Q: What type of battery does this UPS use?
A: It uses a user-replaceable lithium-ion battery with an integrated battery management system for temperature regulation and life cycle monitoring.

Q: How many outlets does it have and what type?
A: It provides six C13 outlets, and the input is a single C14 connection. Two IEC to IEC jumper cables are included.

Q: Is a network card included for remote management?
A: No. The UPS has one expansion slot that accepts the optional Gigabit Network-M3 card. RS-232 and USB (HID) ports are standard.

Q: How long will it run on battery?
A: Typical runtime is 11 minutes at half load and 4 minutes at full load.

Q: Is a rack mounting kit included?
A: Yes. The UPS is a 1U, 19 inch rackmount unit and ships with mounting hardware, USB and RS-232 cables.
