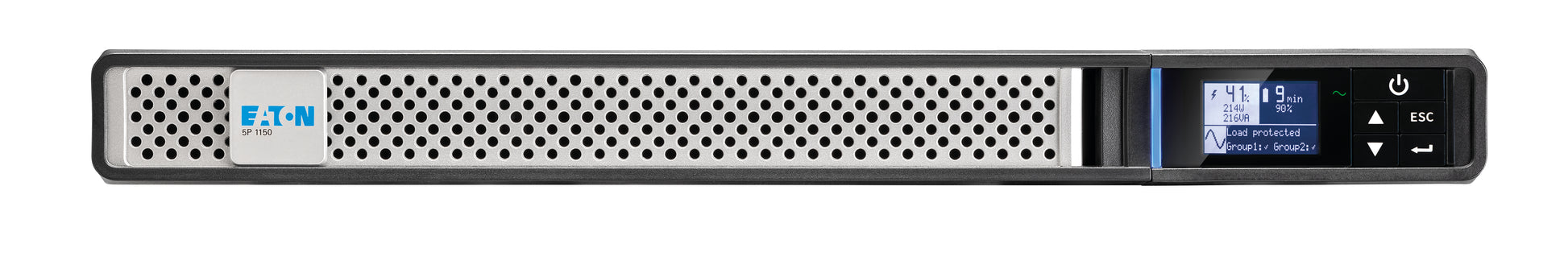

Eaton 5P1150iRAUG2 | 5P Gen2 1150VA/920W 1U Rack UPS, Line-Interactive, 6x C13

Eaton 5P1150iRAUG2 | 5P Gen2 1150VA/920W 1U Rack UPS, Line-Interactive, 6x C13

Authorised Eaton Partner

SKU:5P1150IRAUG2

$1,273.27 inc. GST
$1,157.52 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

In stock:21

Description

The Eaton 5P Gen2 1150VA/920W 1U rackmount UPS is a line-interactive power protection solution for small IT rooms, network closets and edge deployments. It delivers a clean sine wave output through six C13 outlets, with a C14 input, and fits a standard 19 inch rack in just 1U of space. This AU model offers a default 230 V nominal output, configurable between 200, 208, 220, 230 and 240 V.

A next-generation graphical LCD provides at-a-glance status and configuration, while Automatic Voltage Regulation (AVR) conditions fluctuating mains power without draining the battery. ABM+ advanced battery management helps extend battery life and improve replacement prediction. One slot accepts an optional network management, relay or industrial card, and USB and serial ports support local monitoring and automatic shutdown. The unit is compatible with virtual environments including VMware, Hyper-V, Citrix Xen and Red Hat, and integrates with the Eaton Brightlayer software suite.

Features

- Automatic Voltage Regulation (AVR) corrects mains fluctuations without using the battery
- Clean sine wave output suits sensitive network and server equipment
- High-density 1U design for space-constrained racks
- Energy efficient operation, up to 99% efficiency, reducing energy and cooling costs
- Slot for optional network management, relay, or network and industrial card
- Compatible with VMware, Hyper-V, Citrix Xen and Red Hat virtual environments
- Integrates with Eaton Brightlayer software suite
- ABM+ advanced battery management extends battery life and improves replacement prediction
- Next-generation graphical LCD for status and configuration
- Auto shutdown function protects connected equipment during extended outages

Warranty

Standard UPS (with VRLA batteries): 2-3 year warranty
Lithium-ion UPS (up to 3kVA): 5-year warranty
Extended Warranty Options:
Extended Eaton UPS warranties are available through IP Trading. Contact us to discuss a plan that suits your power protection needs.
https://www.eaton.com/us/en-us/catalog/services/ups-services/understanding-your-eaton-ups-warranty-.html

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Manual

Replacement Battery Finder

Technical Specifications

- Capacity: 1150 VA / 920 W
- Topology: Line-interactive
- Output waveform: Sine wave
- Form factor: 1U rackmount, 19 inch
- Dimensions: 438 x 509 x 43.2 mm
- Weight: 14.2 kg
- Input connection: C14
- Outputs: 6 x C13
- Output nominal voltage: 230 V default (200/208/220/230/240 V configurable)
- Nominal frequency: 50-60 Hz, primary frequency range 47 to 70 Hz
- Display: Graphical LCD
- Communication: 1 USB port, 1 serial port, 1 slot for optional communication card
- Rack mounting kit included
- Package contents: rack-mounting kit, cable locking system, USB cable, 2 x IEC-IEC cables, quickstart guide, safety instructions
- Compliance: LVD, EMC, RoHS, WEEE, Packaging and Batteries Directives

FAQs

Q: What outlets does the Eaton 5P1150iRAUG2 provide?
A: It has six C13 outlets and a C14 input. Two IEC-IEC cables are included in the box.

Q: Is this UPS true sine wave?
A: Yes. It is a line-interactive UPS that delivers a sine wave output, which suits servers, switches and other sensitive IT equipment.

Q: How much rack space does it need?
A: It is a 1U unit, 438 mm wide, 509 mm deep and 43.2 mm high, and the rack-mounting kit is included.

Q: Can I add network monitoring to this UPS?
A: Yes. It has one slot for an optional network management, relay, or network and industrial card, plus USB and serial ports for local connection.

Q: What output voltage does it use?
A: The default nominal output is 230 V, and it can be configured to 200, 208, 220, 230 or 240 V.

Q: Does it work with virtualised environments?
A: Yes. It is compatible with VMware, Hyper-V, Citrix Xen and Red Hat, and integrates with the Eaton Brightlayer software suite.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Replacement Battery Finder

Looking for an Eaton UPS replacement battery?

Use the official Eaton UPS Battery Finder tool to identify compatible battery replacement kits and genuine Eaton battery cartridges for your specific UPS model in Australia.

Find My Replacement Battery
