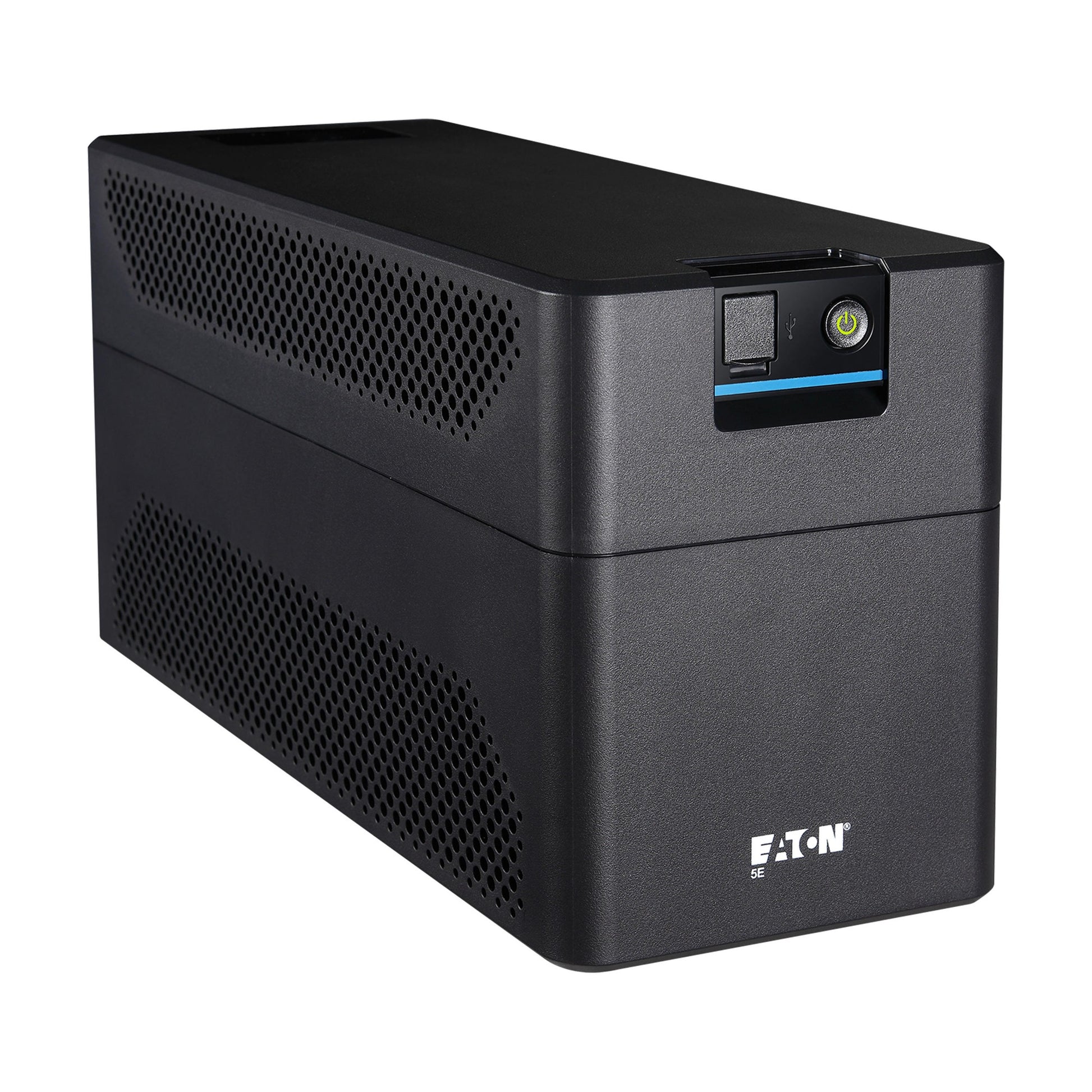

• Eaton 5E2200UIAU black UPS with perforated panels and blue control panel
1 1

Eaton

Eaton 5E2200UIAU | 5E Gen2 Tower UPS, 2200VA/1200W, 3x AU Outlets, USB

Eaton 5E2200UIAU | 5E Gen2 Tower UPS, 2200VA/1200W, 3x AU Outlets, USB

Authorised Eaton Partner

5E2200UIAU

In stock:204

$471.58 inc. GST
$428.71 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Eaton 5E Gen2 2200VA/1200W tower UPS is a compact line-interactive UPS for protecting desktops, workstations, small servers and network equipment from blackouts, brownouts and power surges. It provides three Australian/NZ outlets at 240V and a HID-compliant USB port, so a connected computer can shut down automatically when mains power fails.

Automatic voltage regulation corrects under- and over-voltage without drawing on the battery, with an input window of 140-300V. Two sealed 12V/9Ah lead-acid batteries support typical backup times of around 52 minutes for one PC and 17 minutes for three PCs. Eaton UPS Companion software handles safe shutdown, energy metering and UPS configuration. The free-standing black chassis measures just 330 x 180 x 133 mm and weighs 9.8 kg.

Features

- Automatic Voltage Regulation (AVR) corrects brownouts and over-voltage without using the battery
- Compact tower design saves desk and floor space
- HID-compliant USB port integrates automatically with Windows, macOS and Linux
- Eaton UPS Companion software for safe system shutdown, energy metering and UPS configuration
- Automatic battery test, deep-discharge protection and cold-start capability
- Fan-cooled operation, quieter in line mode than in battery or AVR mode

Warranty

• Standard UPS (with VRLA batteries): 2–3 year warranty
• Lithium-ion UPS (up to 3kVA): 5-year warranty
Extended Warranty Options:
Extended Eaton UPS warranties are available through IP Trading. Contact us to discuss a plan that suits your power protection needs.
https://www.eaton.com/us/en-us/catalog/services/ups-services/understanding-your-eaton-ups-warranty-.html

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Replacement Battery Finder

Technical Specifications

- Capacity: 2200VA / 1200W
- Topology: Line-interactive
- Outlets: 3 x AU
- Input connection: AU plug
- Nominal voltage: 240V input and output, 50/60Hz
- Input voltage range: 140-300V without using battery
- Output voltage range: 195-257V
- Efficiency at maximum load: 95%
- Batteries: 2 x 12V / 9Ah sealed lead-acid
- Typical backup time: 52 min (1 PC), 32 min (2 PC), 17 min (3 PC), 10 min (4 PC)
- Communication: USB port (HID compliant)
- User interface: LEDs
- Surge protection: Yes
- Noise level: <25 dBA in line mode, <40 dBA in battery or AVR mode
- Operating temperature: 0 to 40 C
- Form factor: Tower, free-standing
- Dimensions (D x H x W): 330 x 180 x 133 mm
- Weight: 9.8 kg
- Certifications: IEC/EN 62040-1, IEC/EN 62040-2, IEC/EN 62040-3, CE, EAC, UKCA

FAQs

Q: How many devices can the Eaton 5E2200UIAU power?
A: It has three Australian/NZ outlets and a total rating of 2200VA/1200W, so it suits a few PCs, a monitor, a router or switch, and similar equipment as long as the combined load stays within 1200W.

Q: How long will it run on battery?
A: Typical backup time is about 52 minutes with one PC, 32 minutes with two, 17 minutes with three and 10 minutes with four. Actual runtime depends on the connected load.

Q: Does it have a network port for remote management?
A: No. Communication is through a USB HID-compliant port, and it does not include a network card or Ethernet interface. Eaton UPS Companion software provides monitoring and automatic shutdown for the connected computer.

Q: Can it be rack mounted or expanded with extra batteries?
A: No. This model is a free-standing tower unit with no rack mounting kit and no extended battery capability.

Q: Is it a true online UPS?
A: No. It is a line-interactive UPS with automatic voltage regulation, which corrects voltage variations and switches to battery during an outage.

Q: What is the input voltage window?
A: It tolerates input from 140V to 300V without drawing on the batteries, helping to preserve battery life where mains power is unstable.
