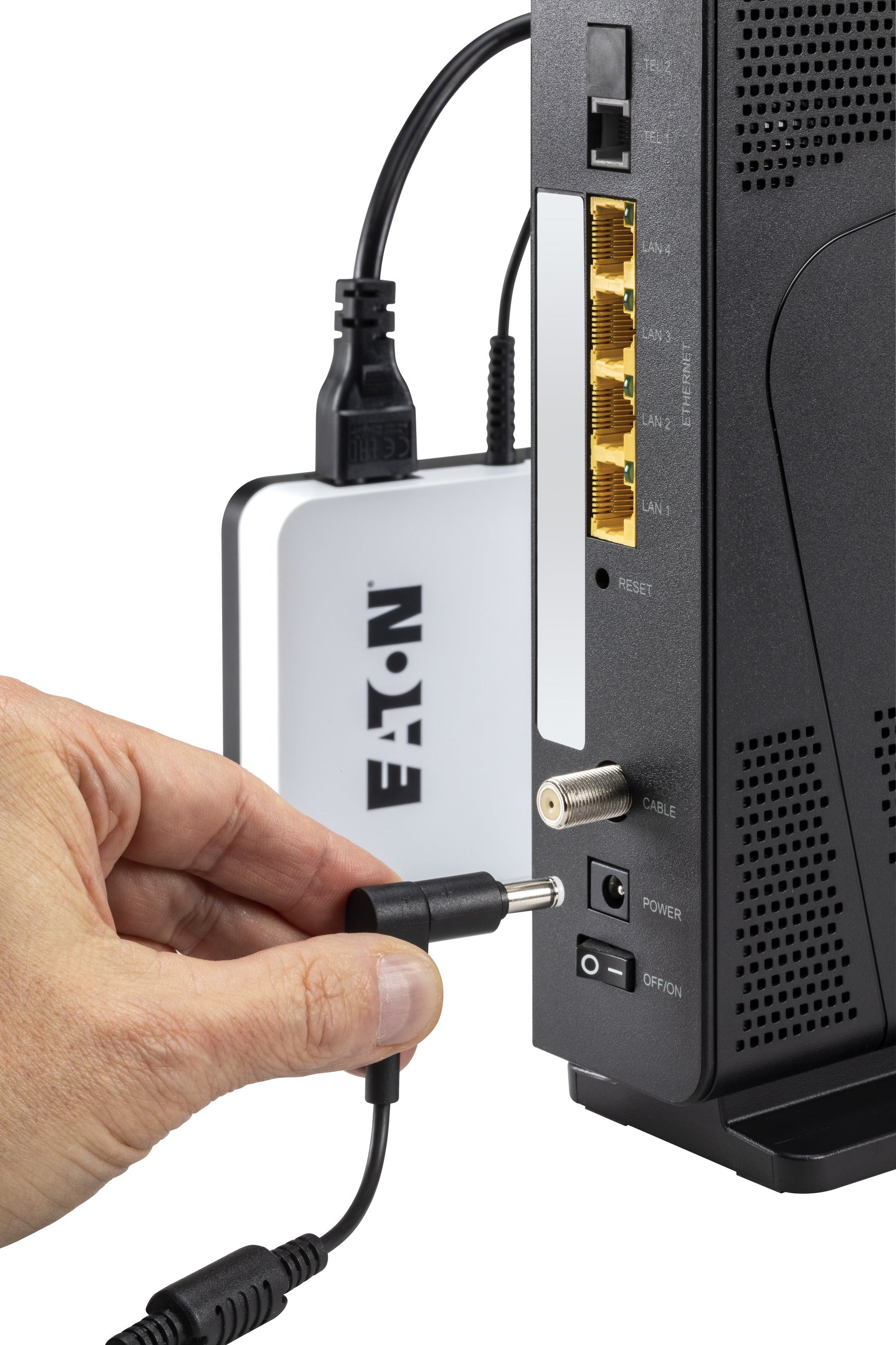

  • Eaton 3SM36AU 3S Mini UPS white adapter with black barrel connectors
1 2

Eaton

Eaton 3SM36AU | 3S Mini DC UPS, 36W, 4 Barrel Outputs, AU Plug

Eaton 3SM36AU | 3S Mini DC UPS, 36W, 4 Barrel Outputs, AU Plug

Authorised Eaton Partner

3SM36AU

In stock:15

$81.44 inc. GST
$74.04 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Eaton 3S Mini is a compact, silent 36W offline DC UPS that keeps routers, IP cameras, streaming players and other low-power devices running through a blackout. It provides four DC barrel outputs with selectable voltages of 9V, 12V, 15V and 19V, and this 3SM36AU model ships with an Australian input cord and four barrel adaptors.

Powered by a user-replaceable lithium-ion battery, the 3S Mini suits home office, retail and small branch deployments where network edge gear needs ride-through protection. LED indicators show voltage, battery level and abnormal conditions, and the slim 95.5 x 30 x 136 mm chassis weighs just 0.4 kg for easy placement near the device being protected.

Features

- Choice of four output voltages (9V, 12V, 15V, 19V) and four DC barrel connectors to suit a wide range of devices
- Up to 5 hours of battery life for an IP camera
- Up to 4 hours for a streaming TV player
- Up to 2 hours for a Wi-Fi extender
- Up to 80 minutes for an internet gateway
- Super compact, silent and stylish design
- User-replaceable lithium-ion battery
- LED indicators for voltage, battery level and abnormal situations

Warranty

• Standard UPS (with VRLA batteries): 2–3 year warranty
• Lithium-ion UPS (up to 3kVA): 5-year warranty
Extended Warranty Options:
Extended Eaton UPS warranties are available through IP Trading. Contact us to discuss a plan that suits your power protection needs.
https://www.eaton.com/us/en-us/catalog/services/ups-services/understanding-your-eaton-ups-warranty-.html

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Replacement Battery Finder

Technical Specifications

- 36 W output rating
- Offline topology
- 4 x DC barrel outputs
- Selectable output voltages: 9V/3A, 12V/3A, 15V/2.4A, 19V/1.89A
- Battery: lithium-ion, 3.7 V / 2200 mAh x 2, user replaceable
- Input: AU input cord, 1 m cord length, 50/60 Hz
- Noise level: below 25 dB at 1 metre
- User interface: LED indicators
- Dimensions (W x H x D): 95.5 x 30 x 136 mm
- Weight: 0.4 kg
- Operating temperature: 0 to 35 C
- Package contents: UPS, AU input cord, 4 barrel adaptors, quick start guide

FAQs

Q: What devices can the Eaton 3S Mini 36W power?
A: It suits low-power DC devices such as routers, internet gateways, IP cameras, streaming TV players and Wi-Fi extenders, provided they run at 9V, 12V, 15V or 19V and stay within the 36W output rating.

Q: Which output voltages are supported?
A: The four selectable output voltages are 9V at 3A, 12V at 3A, 15V at 2.4A and 19V at 1.89A, delivered through DC barrel connectors with four barrel adaptors included.

Q: Is this an online or offline UPS?
A: It is an offline topology DC UPS, which is well suited to network edge and consumer-grade equipment that needs ride-through during a power outage.

Q: How long will it run my equipment?
A: Runtime depends on the connected load. Typical figures are up to 5 hours for an IP camera, 4 hours for a streaming TV player, 2 hours for a Wi-Fi extender and around 80 minutes for an internet gateway.

Q: Can the battery be replaced?
A: Yes, the lithium-ion battery (3.7 V / 2200 mAh x 2) is user replaceable.

Q: What is included in the box?
A: The package contains the UPS, an Australian input cord, four barrel adaptors and a quick start guide.

Replacement Battery Finder

Looking for an Eaton UPS replacement battery?

Use the official Eaton UPS Battery Finder tool to identify compatible battery replacement kits and genuine Eaton battery cartridges for your specific UPS model in Australia.

Find My Replacement Battery
