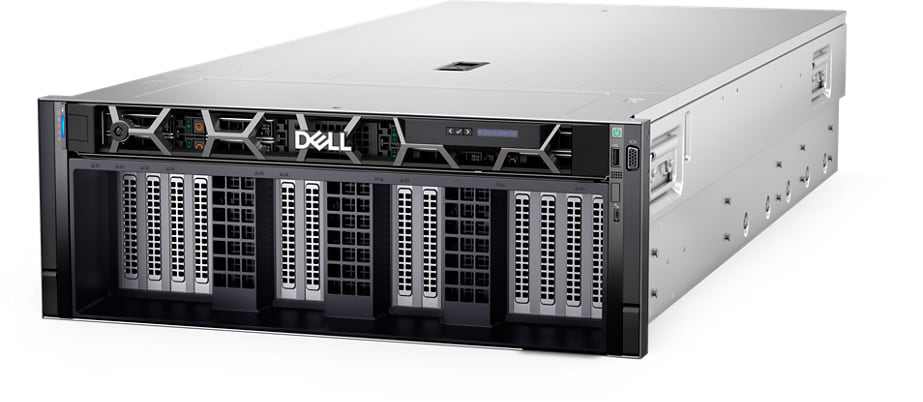

Dell XE9685L | PowerEdge XE9685L 4U AI GPU Server, Dual AMD EPYC, Liquid-Cooled

Authorised Dell Partner

SKU:XE9685L

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Dell PowerEdge XE9685L is a 4U, dual-socket AI and HPC GPU rack server built on 5th Gen AMD EPYC 9005 Series processors and cooled with direct liquid cooling. It supports up to eight NVIDIA HGX B200 SXM6 GPUs fully interconnected with NVLink, making it suited to AI training, fine-tuning, inference, recommendation engines, molecular dynamics and genome sequencing.

The platform pairs up to 3 TB of DDR5 memory with up to eight front U.2 NVMe SSDs optimised for NVIDIA GPUDirect Storage, and up to 12 PCIe Gen5 slots for flexible networking and expansion. Six 3000W Titanium power supplies provide redundant power, and a BOSS-N1 boot module with hardware RAID 1 protects the operating system.

Features

- Designed and optimised for AI training, fine-tuning, inference, recommendation engines, molecular dynamics and genome sequencing
- Direct liquid cooling captures about 70% of generated heat
- NVMe drives optimised for NVIDIA GPUDirect Storage
- Six CPU cooling fans on the top layer and six GPU cooling fans on the bottom layer
- 12 PCIe Gen5 slots for flexible networking and expansion
- Fully interconnected NVLink GPU fabric across eight NVIDIA HGX B200 GPUs

Warranty

Dell hardware typically includes a 1 to 3-year limited hardware warranty, depending on the product model and configuration. Coverage includes repair or replacement for defects in materials and workmanship.

Extended Warranty Options:
Extended warranty and support packages are available through IP Trading. Contact us to customise a solution for your Dell infrastructure.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Form factor: 4U rack server with direct liquid cooling
- Processors: 2 x 5th Gen AMD EPYC 9005 Series, up to 192 cores per processor
- Memory: 24 DDR5 RDIMM slots, up to 6400 MT/s (1 DPC), up to 3 TB
- GPUs: up to 8 x NVIDIA HGX B200 180GB 1000W SXM6, fully interconnected with NVLink
- Front storage: up to 8 x U.2 NVMe SSDs (direct from PSB)
- Boot: BOSS-N1 with 2 x M.2 NVMe SSDs, hardware RAID 1
- Expansion: up to 12 PCIe Gen5 slots
- Networking: embedded 2 x 1GbE LOM, OCP 3.0 x8 mezzanine
- Power: 6 x 3000W AC Titanium PSUs, 3+3 FTR and 5+1 redundancy
- Security: TPM 2.0 FIPS, CC-TCG certified

FAQs

Q: Which GPUs does the Dell PowerEdge XE9685L support?
A: It supports up to eight NVIDIA HGX B200 180GB 1000W SXM6 GPUs, fully interconnected with NVLink.

Q: Which processors does the XE9685L use?
A: It uses two 5th Gen AMD EPYC 9005 Series processors, with up to 192 cores per processor.

Q: How much memory can the XE9685L hold?
A: It has 24 DDR5 RDIMM slots running up to 6400 MT/s at 1 DPC, for up to 3 TB of memory.

Q: Is the XE9685L air-cooled or liquid-cooled?
A: It uses direct liquid cooling, which captures about 70% of the heat generated, supported by six CPU fans and six GPU fans.

Q: What storage and boot options are available?
A: The front bays hold up to eight U.2 NVMe SSDs, and the BOSS-N1 boot module provides two M.2 NVMe SSDs with hardware RAID 1.

Q: How is the XE9685L powered?
A: It has six 3000W AC Titanium power supplies, supporting 3+3 FTR and 5+1 redundancy.
