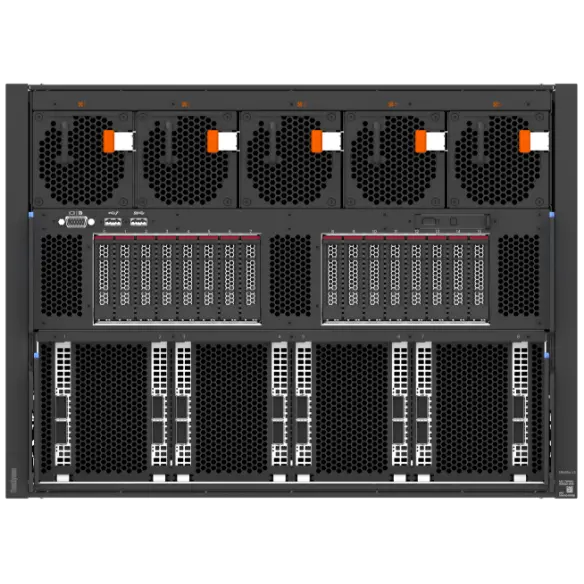

Lenovo SR685a V3 | ThinkSystem SR685a V3 8U GPU Rack Server, 8x GPU, 2x EPYC

Authorised Lenovo Partner

SKU:SR685a V3

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Lenovo ThinkSystem SR685a V3 is an air-cooled 8U GPU rack server built for generative AI and HPC workloads. It pairs two AMD EPYC 9005 (Turin) or 9004 (Genoa) processors, with up to 128 cores each, with eight high-speed interconnected GPUs on an onboard GPU board. Supported GPU options include AMD MI300X 750W OAM, NVIDIA H100 700W SXM5 and NVIDIA H200 700W SXM5 accelerators.

The server provides 24 DDR5 DIMM slots across 12 memory channels per processor, up to 16 hot-swap PCIe 5.0 NVMe drive bays, and up to 10 PCIe 5.0 x16 FHHL slots including a rear OCP 3.0 slot. Up to eight hot-swap redundant 2600W 80 PLUS Titanium power supplies deliver N+N redundancy, and Lenovo XClarity Controller provides embedded management.

Features

- Air-cooled design with front-to-rear airflow
- NVIDIA NVLink GPU interconnect at 900GB/s (H200 configuration)
- Supports both 5th Gen AMD EPYC 9005 and 4th Gen EPYC 9004 processors
- PCIe 5.0 for high-performance I/O and GPU Direct support
- Lenovo XClarity Controller for embedded management
- Redundant hot-swap power supplies with N+N redundancy

Warranty

Lenovo offers a standard 1-year warranty across most product lines, including:
• PC Products: 1-year base warranty coverage for laptops, desktops, and other personal computing devices.
• Data Centre Products: 1-year base warranty for servers, storage, and networking hardware.
Warranty coverage includes repair or replacement for eligible defects in materials or workmanship under normal use conditions.
Extended Warranty Options:
IP Trading can offer extended warranty solutions tailored to your business needs. Please contact us for details on available Lenovo extended warranty packages.
https://support.lenovo.com/au/en/solutions/ht505088-product-warranty-and-other-agreements

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Machine type 7DHC, 3 year warranty
- Form factor: 8U rack
- Processor: 2x AMD EPYC 9005 (Turin) or 9004 (Genoa), up to 128 cores, up to 3.65 GHz, TDP up to 400W
- GPUs: 8x AMD MI300X 750W OAM (192GB HBM3 each), or 8x NVIDIA H100 700W SXM5 (80GB HBM3 each), or 8x NVIDIA H200 700W SXM5 (141GB HBM3e each)
- Memory: 24 DDR5 DIMM slots (12 per processor, 12 channels each, 1 DPC), Lenovo TruDDR5 RDIMM/3DS RDIMM, up to 6400 MHz with 5th Gen EPYC
- Storage: up to 16x 2.5-inch hot-swap PCIe 5.0 NVMe drive bays
- OS boot: M.2 adapter with RAID-1 (2x NVMe M.2)
- I/O: up to 10x PCIe 5.0 x16 FHHL slots (8 front, 2 rear), including a rear OCP 3.0 slot
- Power: up to 8 hot-swap redundant 2600W AC PSUs, 80 PLUS Titanium, N+N redundancy, 220V AC required
- Video: embedded 16MB graphics in XClarity Controller, max 1920x1200 at 60Hz
- Dimensions: 447 mm (W) x 351 mm (H) x 924 mm (D)
- Maximum weight: 108.9 kg

FAQs

Q: Which GPUs does the ThinkSystem SR685a V3 support?
A: It supports eight AMD MI300X 750W OAM GPUs (192GB HBM3 each), eight NVIDIA H100 700W SXM5 GPUs (80GB HBM3 each), or eight NVIDIA H200 700W SXM5 GPUs (141GB HBM3e each).

Q: Which processors can be fitted?
A: The server takes two AMD EPYC processors from either the 5th Gen EPYC 9005 (Turin) or 4th Gen EPYC 9004 (Genoa) families, with up to 128 cores and TDP up to 400W.

Q: How much memory does it support?
A: It has 24 DDR5 DIMM slots, 12 per processor, using Lenovo TruDDR5 RDIMM or 3DS RDIMM. Speeds of up to 6400 MHz are available with 5th Gen EPYC processors.

Q: What storage options are available?
A: It supports up to 16 hot-swap 2.5-inch PCIe 5.0 NVMe drive bays. For the operating system, an M.2 adapter provides RAID-1 with two NVMe M.2 drives.

Q: What power supply arrangement does it need?
A: It uses up to eight hot-swap redundant 2600W 80 PLUS Titanium AC power supplies with N+N redundancy. A 220V AC supply is required.

Q: Is the server air-cooled or liquid-cooled?
A: The SR685a V3 is air-cooled, with front-to-rear airflow, and occupies 8U of rack space.
