Dell XE8640 | PowerEdge XE8640 4U Rack Server, 4x NVIDIA H100 SXM5

Authorised Dell Partner

SKU:XE8640

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

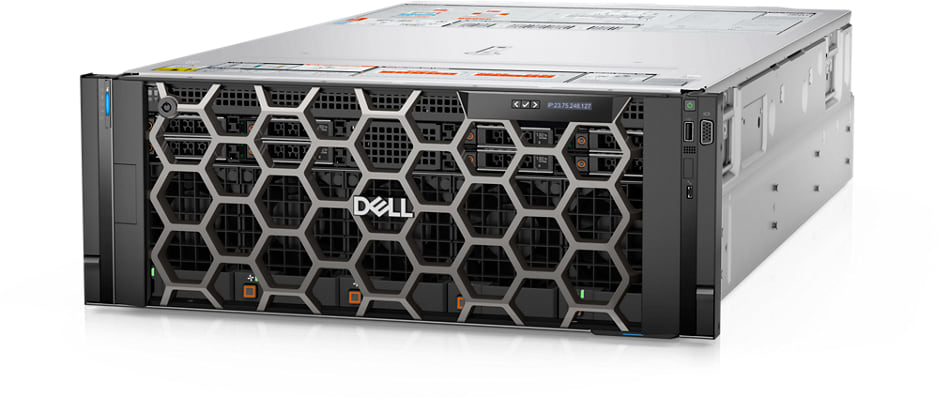

The Dell PowerEdge XE8640 is a 2-socket, 4U air-cooled rack server built for AI and machine learning training, inferencing, and HPC modelling and simulation. It pairs two 4th or 5th Gen Intel Xeon Scalable processors with four NVIDIA H100 700W SXM5 Tensor Core GPUs interconnected via NVLink, delivering up to 900GB/s of GPU-to-GPU bandwidth for demanding accelerated workloads.

With 32 DDR5 DIMM slots supporting up to 4TB of memory, up to 8 x 2.5-inch NVMe SSD drives, and up to 4 x PCIe Gen5 x16 slots plus an OCP 3.0 slot, the XE8640 gives data centre teams the memory, storage, and expansion headroom needed for large-scale AI deployments. Dual 2800W Titanium hot-swap redundant power supplies and NVIDIA GPUDirect Storage support round out a platform designed for sustained, high-density compute.

Features

- Air-cooled 4U chassis supporting high-wattage components in up to 35C ambient
- Four NVIDIA H100 SXM5 GPUs linked via NVLink for up to 900GB/s GPU-to-GPU bandwidth
- NVIDIA GPUDirect Storage (GDS) support
- Intel on-chip accelerators to boost AI and ML operations
- Virtualisation options for multi-tenant environments
- Dual 2800W Titanium hot-swap redundant power supplies
- iF Design Award 2024 winner

Warranty

Dell hardware typically includes a 1 to 3-year limited hardware warranty, depending on the product model and configuration. Coverage includes repair or replacement for defects in materials and workmanship.

Extended Warranty Options:
Extended warranty and support packages are available through IP Trading. Contact us to customise a solution for your Dell infrastructure.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Form factor: 2-socket 4U rack server
- Processors: 2 x 4th Gen (up to 56 cores) or 5th Gen (up to 64 cores) Intel Xeon Scalable
- Memory: 32 DDR5 DIMM slots, up to 4TB (4800 MT/s with 4th Gen; 5600 MT/s with 5th Gen)
- GPUs: 4 x NVIDIA H100 Tensor Core 700W SXM5 interconnected via NVLink
- GPU-to-GPU bandwidth: up to 900GB/s
- Storage: up to 8 x 2.5-inch NVMe SSD drives (up to approximately 122TB)
- Expansion: up to 4 x PCIe Gen5 x16 slots plus 1 x OCP 3.0 slot
- Networking: 2 x 1GbE onboard
- Power: 2 x 2800W Titanium hot-swap redundant PSUs
- Dimensions: 174.3mm (H) x 481.91mm (W) x 901.4mm (D) with bezel
- Weight: up to 61.4kg

FAQs

Q: Which processors does the Dell PowerEdge XE8640 support?
A: It supports two 4th Gen Intel Xeon Scalable processors with up to 56 cores each, or two 5th Gen Intel Xeon Scalable processors with up to 64 cores each.

Q: How many GPUs does the XE8640 hold and what type?
A: It houses four NVIDIA H100 Tensor Core 700W SXM5 GPUs interconnected via NVLink, providing up to 900GB/s of GPU-to-GPU bandwidth.

Q: How much memory can the XE8640 take?
A: It has 32 DDR5 DIMM slots supporting up to 4TB. Memory runs at 4800 MT/s with 4th Gen processors and 5600 MT/s with 5th Gen processors.

Q: What storage does the XE8640 support?
A: It supports up to 8 x 2.5-inch NVMe SSD drives, for up to approximately 122TB of high-speed local storage, and supports NVIDIA GPUDirect Storage.

Q: Is the XE8640 air-cooled or liquid-cooled?
A: It is an air-cooled 4U design that supports high-wattage components in ambient temperatures up to 35C.

Q: What expansion and networking options are available?
A: It offers up to 4 x PCIe Gen5 x16 slots and 1 x OCP 3.0 slot for add-in networking or accelerators, plus 2 x 1GbE onboard network ports.
