Dell XE9680L | PowerEdge XE9680L 4U Liquid-Cooled AI Server, 8x GPU
Dell XE9680L | PowerEdge XE9680L 4U Liquid-Cooled AI Server, 8x GPU
Authorised Dell Partner
SKU:XE9680L
Stock Status: Enquire
Couldn't load pickup availability
Description
Description

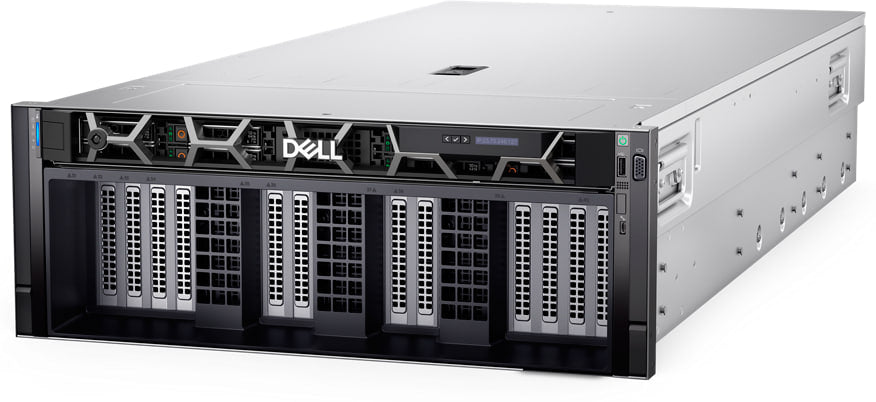

The Dell PowerEdge XE9680L is a 4U, 2-socket direct liquid-cooled AI rack server built for AI and machine learning training, fine-tuning, inference and HPC workloads. It pairs dual 5th Generation Intel Xeon Scalable processors with up to 8 NVIDIA HGX H200 or B200 GPUs, delivering dense accelerated compute in a single chassis.
With 32 DDR5 RDIMM slots supporting up to 4 TB of memory, 8 front U.2 NVMe drive bays and up to 12 PCIe Gen5 expansion slots, the XE9680L offers flexible networking and storage for large-scale data pipelines. Integrated iDRAC9 and OpenManage tooling provides streamlined lifecycle management for data centre deployments.
Features
Features
- Direct liquid cooling manages heat for higher performance and lower energy consumption
- Designed for AI training, fine-tuning and inference, recommendation engines, and molecular dynamics and genome sequencing
- Flexible PCIe Gen5 networking and expansion
- Integrated iDRAC9 and OpenManage systems management
Warranty
Warranty
Dell hardware typically includes a 1 to 3-year limited hardware warranty, depending on the product model and configuration. Coverage includes repair or replacement for defects in materials and workmanship.
Extended Warranty Options:
Extended warranty and support packages are available through IP Trading. Contact us to customise a solution for your Dell infrastructure.
All technical data should be verified on the manufacturer data sheets.
View full details
What's the difference between add to cart, backorder & request a quote?
Add to Cart lets you purchase in-stock products immediately.
Backorder is available for items that are out of stock. Placing a backorder secures your order; contact us to confirm ETA before ordering if you need it urgently.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Form factor: 4U direct liquid-cooled rack server, 2 sockets
- Processors: 2 x 5th Generation Intel Xeon Scalable (up to 64 cores, up to 350 W)
- GPUs: up to 8 x NVIDIA HGX H200 or B200
- Memory: 32 DDR5 RDIMM slots, up to 4 TB; up to 5600 MT/s (1 DPC), 4400 MT/s (2 DPC)
- Front drive bays: 8 x U.2 NVMe
- Boot: BOSS-N1 with 2 x M.2 SSDs, hardware RAID 1
- Expansion: up to 12 PCIe Gen5 slots
- Power supplies: 6 x 2800 W AC Titanium (H200 GPUs) or 6 x 3000 W AC Titanium (B200 GPUs); 3+3 FTR and 5+1 redundancy
- Cooling: direct liquid cooling; 6 CPU fans (top layer) and 6 GPU fans (bottom layer)
- Dimensions: Height 174.3 mm; Width 447 mm (upper 2U) / 434 mm (lower 2U); Depth 1037.57 mm with bezel
- Weight: up to 91.63 kg
- Management: iDRAC9, iDRAC Direct, Redfish API, OpenManage Enterprise, CloudIQ
FAQs
Q: What GPUs does the Dell PowerEdge XE9680L support?
A: It supports up to 8 NVIDIA HGX H200 or B200 GPUs.
Q: How is the XE9680L cooled?
A: It uses direct liquid cooling, with 6 CPU fans in the top layer and 6 GPU fans in the bottom layer.
Q: What processors and memory does it support?
A: It supports two 5th Generation Intel Xeon Scalable processors (up to 64 cores, up to 350 W) and 32 DDR5 RDIMM slots for up to 4 TB of memory.
Q: What power supplies are used?
A: It uses 6 x 2800 W AC Titanium power supplies with H200 GPUs or 6 x 3000 W AC Titanium with B200 GPUs, supporting 3+3 FTR and 5+1 redundancy.
Q: What storage options are available?
A: It has 8 front U.2 NVMe drive bays, plus a BOSS-N1 boot module with 2 x M.2 SSDs in hardware RAID 1.
Q: How is the server managed?
A: Management is via iDRAC9, iDRAC Direct, the Redfish API, OpenManage Enterprise and CloudIQ.
