Dell XE7745 | PowerEdge XE7745 4U GPU AI Rack Server, Dual AMD EPYC 9005

Authorised Dell Partner

SKU:XE7745

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

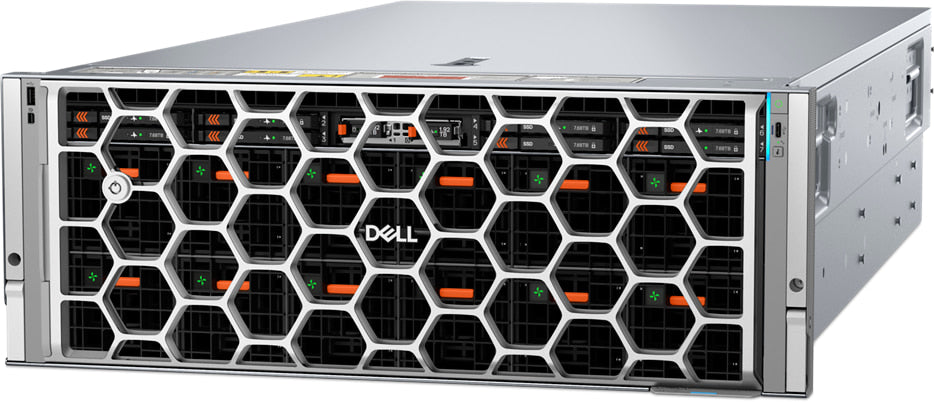

The Dell PowerEdge XE7745 is a 2-socket 4U air-cooled GPU rack server built on dual 5th Gen AMD EPYC 9005 processors. It is designed for AI inferencing, model fine-tuning and AI-powered HPC, with support for up to eight double-wide 600 W PCIe Gen5 GPUs or up to sixteen single-wide 75 W PCIe Gen5 GPUs in an air-cooled chassis.

With 24 DDR5 DIMM slots, up to eight front EDSFF E3.S Gen5 NVMe SSDs, up to eight additional PCIe Gen5 slots for networking and eight 3200W Titanium hot-swap power supplies in a 4+4 redundant configuration, it delivers high GPU density per rack. Supported GPUs include NVIDIA H200 NVL, H100, RTX Pro 6000, L40S and L4, as well as AMD MI350P. Management is handled by the integrated iDRAC10.

Features

- Flexible air-cooled PCIe GPU configurations for AI inferencing and fine-tuning
- Maximum PCIe GPU density per rack with an air-cooled 4U chassis
- Front-serviceable PCIe slots for low-latency AI cluster back-end networking
- Integrated iDRAC10 for local and remote monitoring and control
- Security: cryptographically signed firmware, Secure Boot, Silicon Root of Trust, Secured Component Verification, TPM 2.0

Warranty

Dell hardware typically includes a 1 to 3-year limited hardware warranty, depending on the product model and configuration. Coverage includes repair or replacement for defects in materials and workmanship.

Extended Warranty Options:
Extended warranty and support packages are available through IP Trading. Contact us to customise a solution for your Dell infrastructure.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Form factor: 4U rack server, 2 sockets
- Processors: 2 x 5th Gen AMD EPYC 9005 Series, up to 192 Zen5 cores per processor, max TDP 500 W
- Memory: 24 DDR5 DIMM slots, up to 3 TB, speeds up to 6400 MT/s (1 DPC)
- GPU support: 8x PCIe Gen5 x16 double-wide FHFL up to 600 W, or 16x PCIe Gen5 x16 single-wide FHFL up to 75 W
- Supported GPUs include NVIDIA H200 NVL, H100, RTX Pro 6000, L40S, L4 and AMD MI350P
- Storage: up to 8 x front EDSFF E3.S Gen5 NVMe SSDs (up to approx. 122 TB), direct-attached with no RAID controller
- Boot: BOSS-N1 with 2 x M.2 NVMe SSDs, hardware RAID 1
- Expansion: up to 8 additional PCIe Gen5 slots for networking, plus optional OCP 3.0 NIC
- Power: 8 x 3200W Titanium hot-swap PSUs, 4+4 redundancy (AC or DC)
- Cooling: air-cooled, 4 dual-fan modules on the mid tray plus 12 front fans
- Dimensions: 174.3 mm (H) x 482 mm (W) x approx. 886.7 mm (D, without bezel)
- Management: iDRAC10, iDRAC Direct, Redfish API, RACADM

FAQs

Q: How many GPUs does the Dell PowerEdge XE7745 support?
A: It supports up to eight double-wide FHFL PCIe Gen5 x16 GPUs at up to 600 W each, or up to sixteen single-wide FHFL PCIe Gen5 x16 GPUs at up to 75 W each.

Q: Which GPUs are supported in the XE7745?
A: Supported GPUs include NVIDIA H200 NVL, H100, RTX Pro 6000, L40S and L4, as well as the AMD MI350P.

Q: What processors does the XE7745 use?
A: It uses two 5th Gen AMD EPYC 9005 Series processors, with up to 192 Zen5 cores per processor and a maximum TDP of 500 W.

Q: Is the XE7745 air-cooled or liquid-cooled?
A: It is an air-cooled 4U chassis, using four dual-fan modules on the mid tray plus 12 front fans.

Q: What storage options are available?
A: It supports up to eight front EDSFF E3.S Gen5 NVMe SSDs, direct-attached with no RAID controller. A BOSS-N1 card with two M.2 NVMe SSDs in hardware RAID 1 is available for boot.

Q: What power supplies does the XE7745 use?
A: It uses eight 3200W Titanium hot-swap power supplies in a 4+4 redundant configuration, available in AC or DC.
