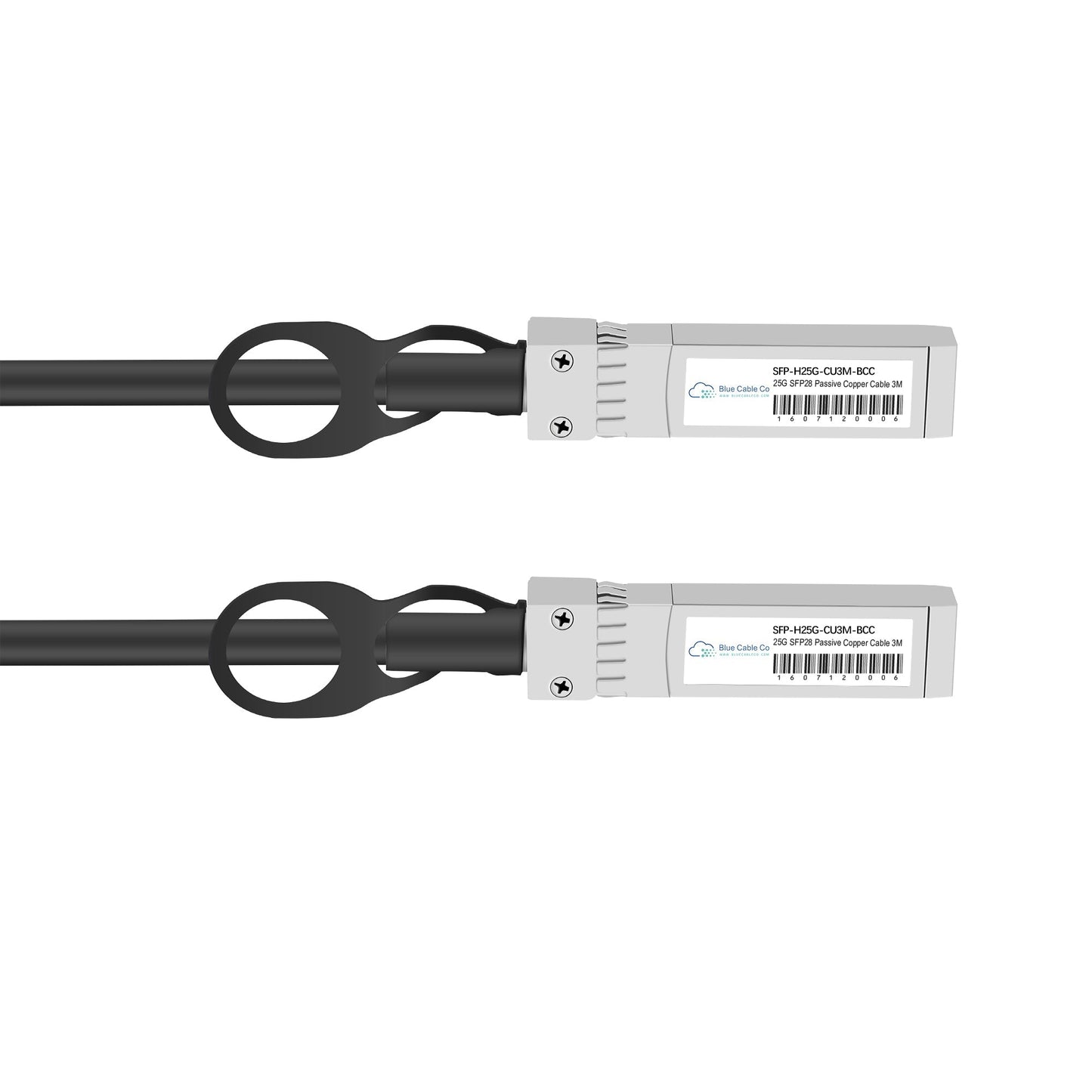

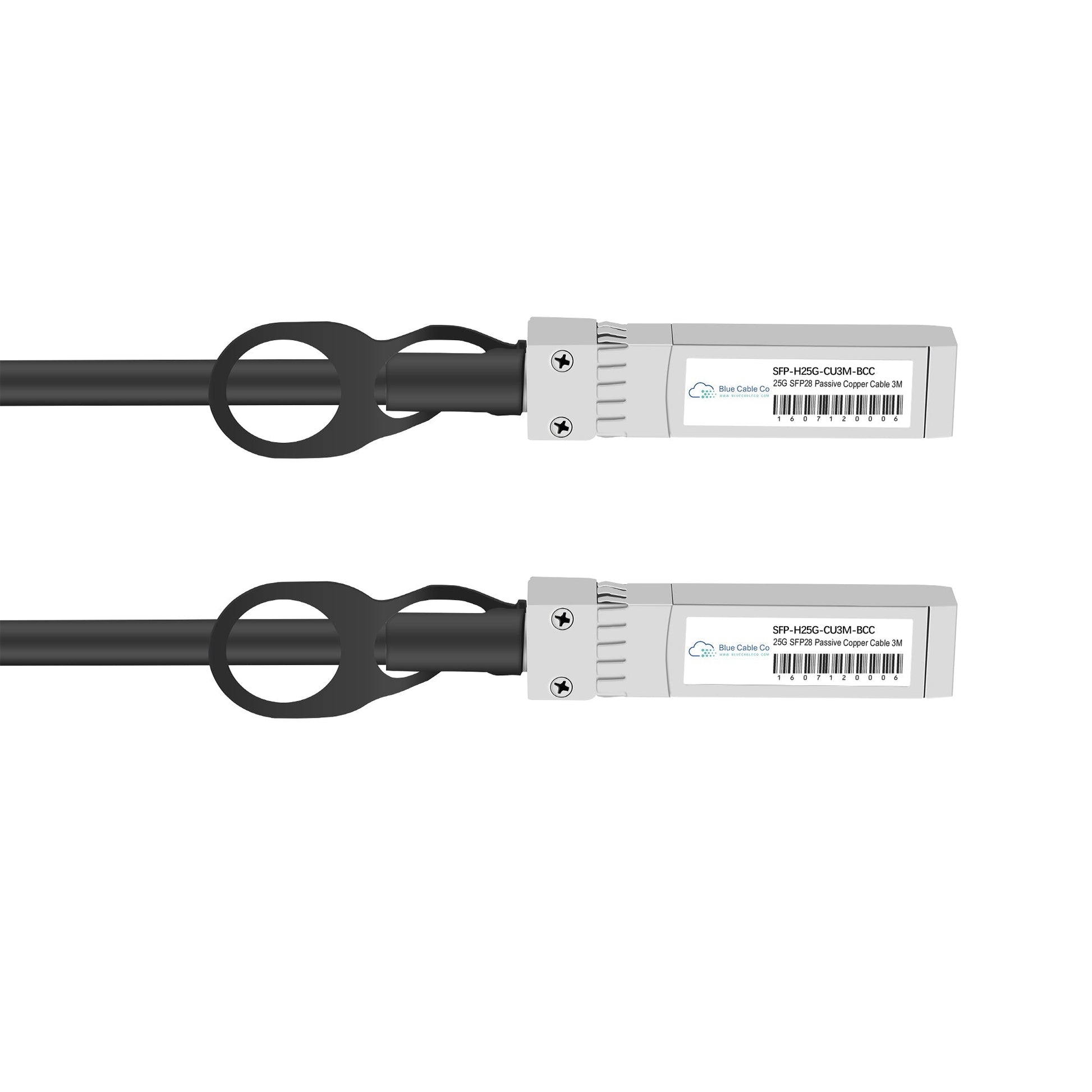

Blue Cable Co | NVIDIA Mellanox Compatible 25GbE SFP28 to SFP28 Passive DAC Cable

Blue Cable Co 25GbE SFP28 passive direct attach copper (DAC) cables are a power-efficient, plug-and-play alternative to optical fibre for short-reach 25G connections between SFP28 ports, compatible with NVIDIA Mellanox platforms. Available in lengths from 1m to 5m, cables up to 2m operate as CA-25G-N (no FEC required) for low-latency deployments, while 2.5m to 5m variants are CA-25G-L and require RS-FEC to be enabled on the host. All variants feature an LSZH jacket and are tested in our state-of-the-art lab in Sydney, Australia to ensure NVIDIA Mellanox platform compatibility. Stocked and shipped from Sydney, Australia, and backed by Blue Cable Co's 5-year advanced hardware replacement warranty.

• Plug-and-play passive SFP28 DAC — no power supply or configuration required
• 25GbE SFP28 to SFP28 passive direct attach copper cable, NVIDIA Mellanox compatible
• Available in 1m, 1.5m, 2m, 2.5m, 3m, 4m, and 5m lengths — select your variant above
• 1m, 1.5m, and 2m variants: CA-25G-N compliant — no FEC required, low latency
• 2.5m, 3m, 4m, and 5m variants: CA-25G-L compliant — RS-FEC must be enabled on the host
• SFF-8402 compliant SFP28 connectors with SFF-8636 compliant I2C management interface
• LSZH (Low Smoke Zero Halogen) jacket — suitable for data centre environments
• BER better than 1E-15 with Mellanox systems
• Maximum power consumption: 0.1W per end
• Operating case temperature range: 0°C to +70°C
• RoHS-6 compliant, halogen-free PCB
• Tested in Blue Cable Co's Sydney lab for NVIDIA Mellanox platform compatibility
• Stocked in Sydney, Australia for fast local dispatch
• Backed by Blue Cable Co's 5-year advanced hardware replacement warranty

- NVIDIA Mellanox compatible 25GbE SFP28 to SFP28 passive DAC cable
- Plug-and-play — no power or configuration required
- Available in 1m, 1.5m, 2m, 2.5m, 3m, 4m, and 5m lengths
- 1m–2m: CA-25G-N compliant, no FEC required — ideal for low-latency deployments
- 2.5m–5m: CA-25G-L compliant, RS-FEC must be enabled on the host switch
- LSZH jacket — low smoke, zero halogen for data centre safety compliance
- SFF-8402 SFP28 compliant with SFF-8636 I2C management interface
- BER better than 1E-15 with Mellanox systems, 0.1W maximum power consumption
- RoHS-6 compliant, halogen-free PCB
- Tested in Blue Cable Co's Sydney lab for NVIDIA Mellanox platform compatibility
- Stocked in Sydney, Australia for fast local dispatch
- 5-year advanced hardware replacement warranty from Blue Cable Co
